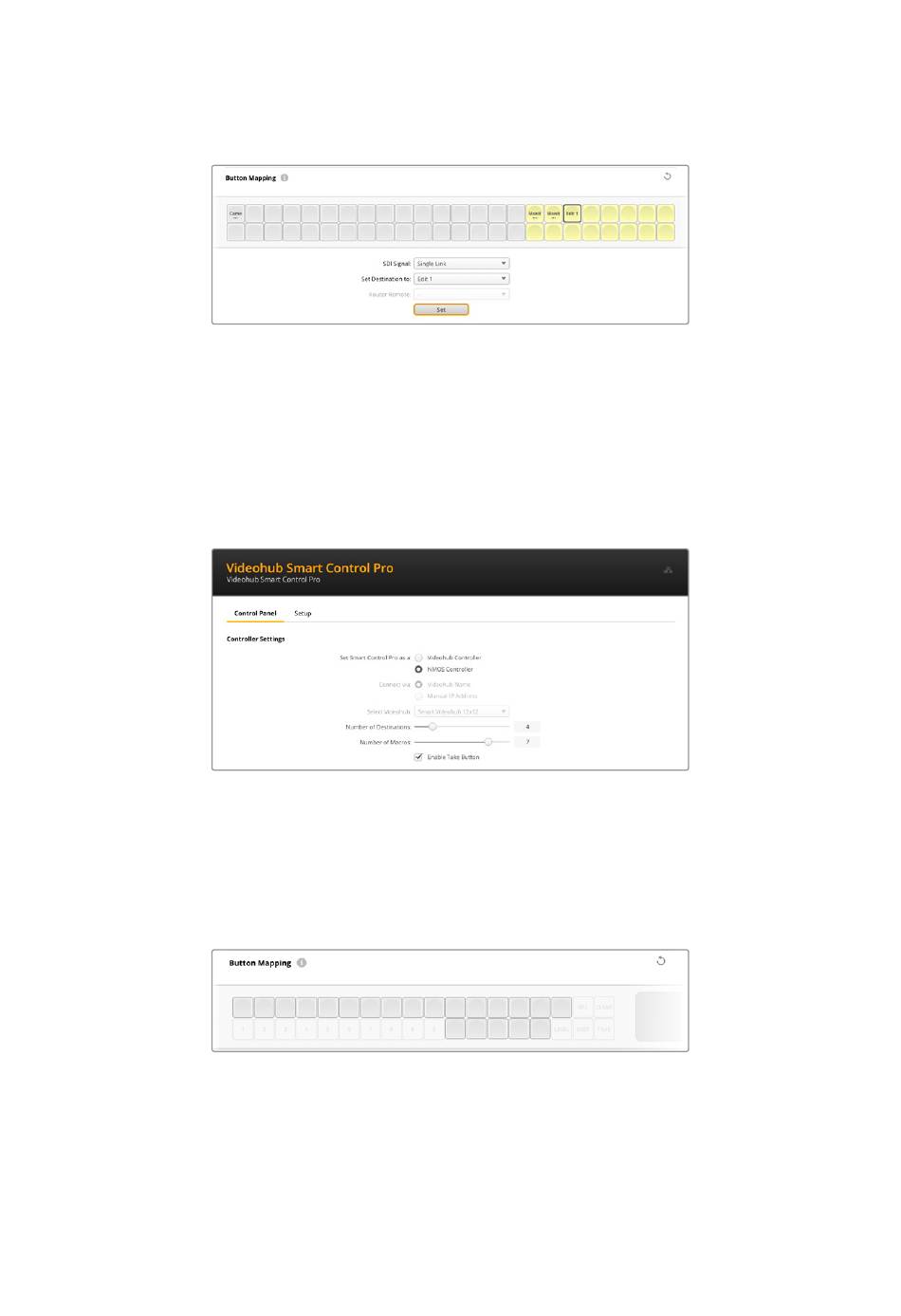

Click the arrow next to the 'set source to' or 'set destination to' field to display a list of available
sources and destinations. Click on a source or destination, then click 'select'. In the 'button
mapping' panel, click 'set'.
Enabling the Take Button
Your Videohub hardware control panel features a 'take' button on the lower right of the control
interface that flashes red before a route change takes place, pressing 'take' will confirm a
route change.
On Videohub Master Control Pro the 'take' button is always enabled. On Videohub Smart
Control Pro, the 'take' button can be enabled or disabled, when disabled routing changes will
take place as soon as a source or macro button is pressed. The take button can be used with
both cut bus and XY controller configurations.
The take button can be enabled and disabled on Videohub Smart Control Pro.
Configuring Videohub Master Control Pro
Use the 'button mapping' panel section of the 'control panel' tab to create button labels for
Videohub Master Control Pro. You can create separate button label sets for Videohub and
NMOS control.
Labeling Buttons
On Videohub Master Control Pro, 21 of the front panel buttons can be labeled in the 'button
mapping' section of the 'control panel' tab. This provides fast selection of common equipment
types such as cameras, VTRs and monitors. For example, if you have 3 HyperDeck sources with
their inputs labeled DECK 1, DECK 2 and DECK 3, you can press the 'DECK' button to reduce
the selection to only those 3 sources. The reduced sources can then be selected using the spin
knob or by pressing the numbered pushbuttons 1, 2, or 3.
