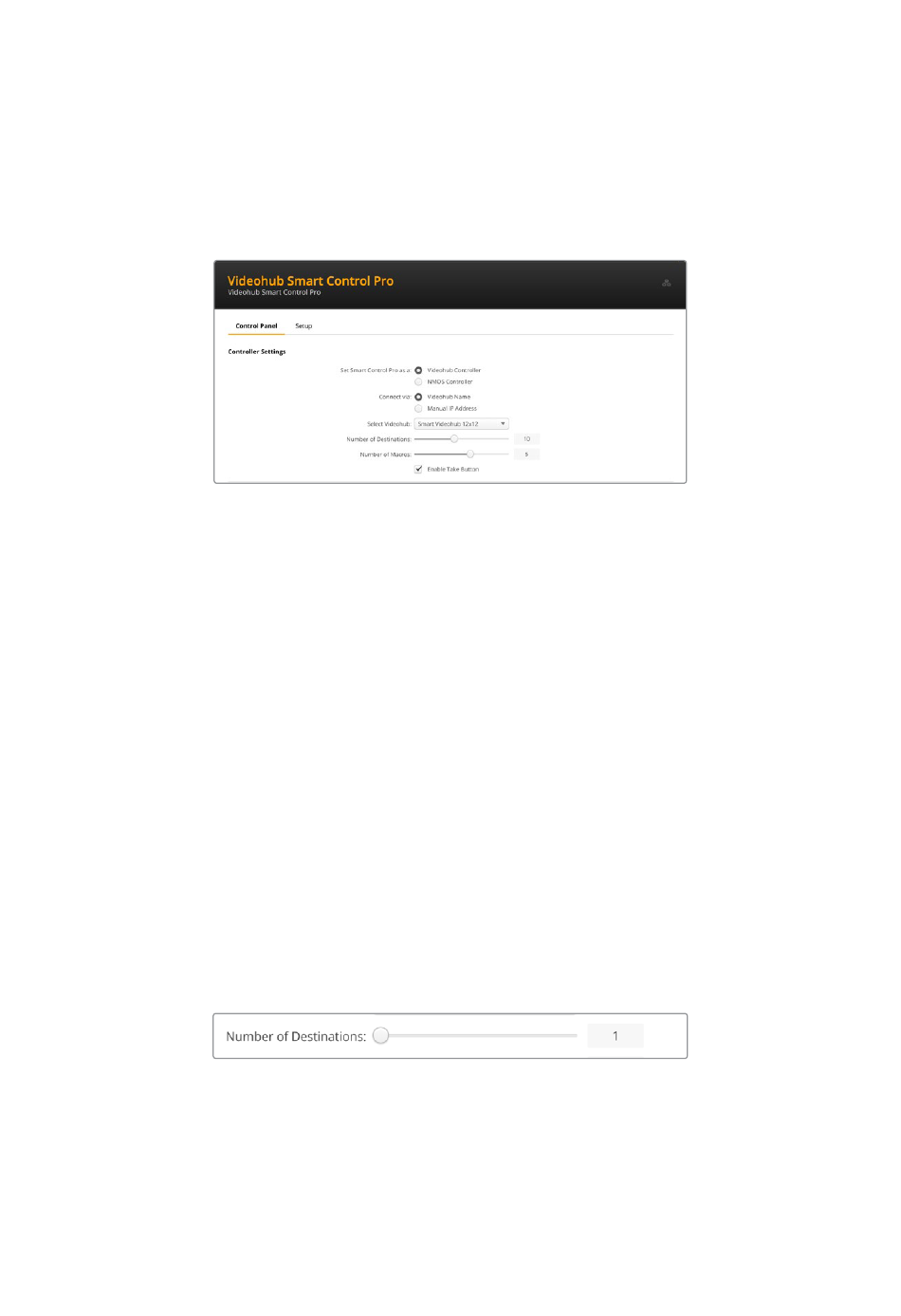

Control Panel Tab
The 'control panel' tab includes options to set your Videohub control panel as a Videohub
or NMOS controller, as well as controls for setting the number of macros and the number of
destinations on Videohub Smart Control Pro. The 'button mapping' panel allows you to label
your Videohub hardware controller's front panel buttons.
Controller Settings
Set as Videohub or NMOS Controller
Use this setting to switch between using your Videohub hardware control panel as a Videohub
or NMOS controller.
Connecting to a Videohub
If you have set your Videohub hardware control panel as a Videohub controller, you can choose
to connect to a Videohub via name or by manually entering the Videohub's IP address.
To connect via name, click 'connect via Videohub name' then select the name of the Videohub
from the 'select Videohub' menu. To connect via IP address, select 'connect via manual IP
address' and enter the Videohub's IP address in the 'manual IP address field'.
Configuring Videohub Smart Control Pro
To configure Videohub Smart Control Pro use the 'number of destinations' slider and 'button
mapping' section of the control panel tab to configure your panel as a cut bus or XY controller
and create button labels.
Cut Bus Configuration
When Videohub Smart Control Pro is configured as a cut bus controller, every button on the
front panel represents a source and there is only one destination.
Cut Bus Setup:
1 Drag the 'number of destinations' slider to '1'.
2 Use the destination settings below the 'button mapping' panel to set the destination.
If your Videohub Smart Control Pro is set as a Videohub controller, use the 'SDI signal'
menu to choose between single, dual or quad link SDI. Set destinations for each link if you
are using dual or quad link. If your Videohub is also routing RS-422 deck control from the
destination device, you can set this in the 'router remote' field.
Next, click the arrow to the right of the 'set destination to' field.
