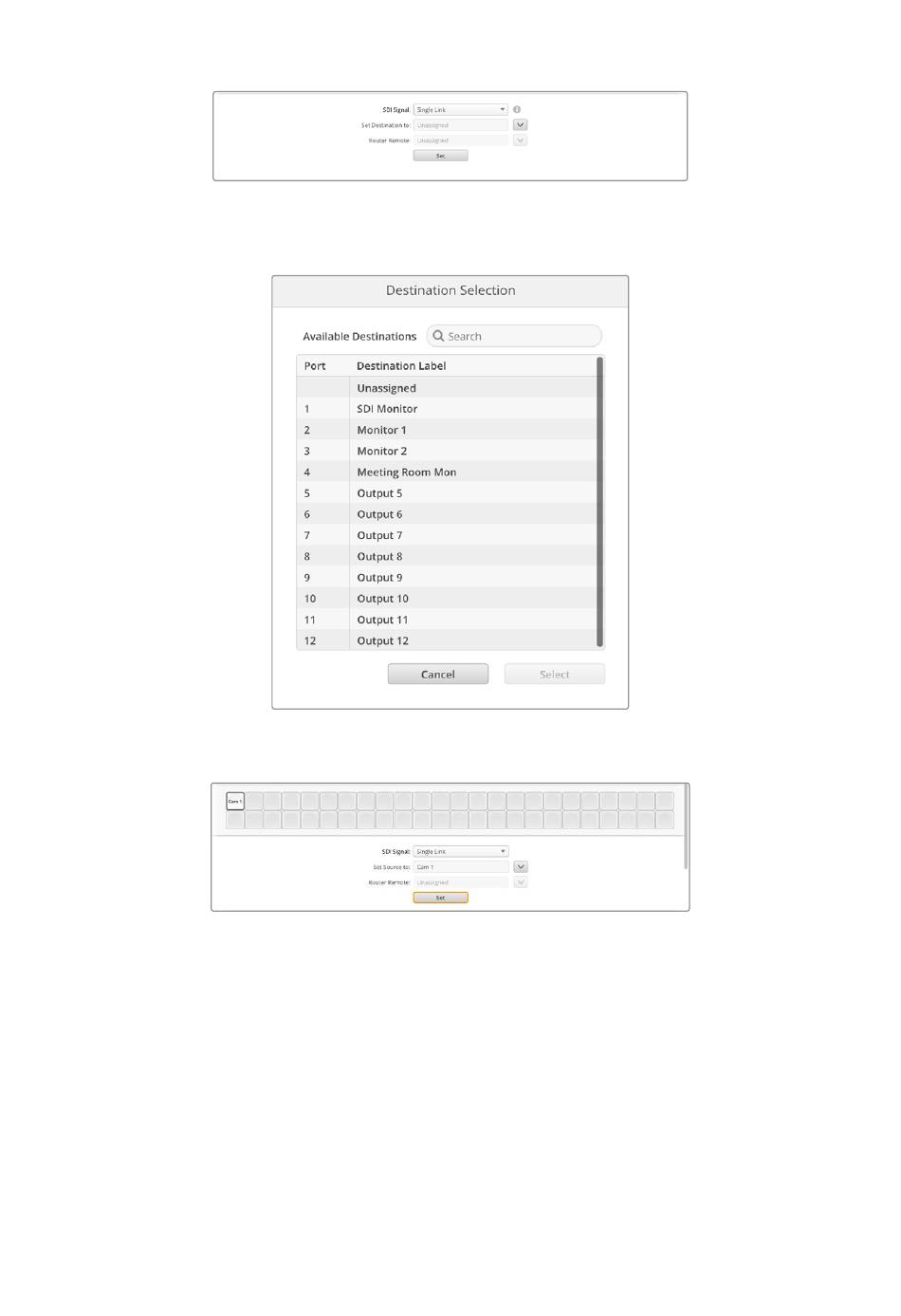

A list of available destinations will be displayed, select a destination by clicking on its
name, then click 'select'. Click the 'set' button in the 'button mapping' panel to confirm your
selection.
3 To set a source, click on a button in the 'button mapping' panel and use the 'set source'
options to configure a source button.
XY Controller Configuration
When configured as an XY controller, Videohub Smart Control Pro can work with up to 24
destinations, source buttons illuminate white and the destination buttons will illuminate gold.
Use this configuration if you don't intend to dedicate a Videohub Smart Control Pro unit to each
destination device.
XY Controller Setup:
1 Drag the 'number of destinations' slider to the desired number. As you drag the slider, the
'button mapping' panel will update to show sources and destinations. Destination buttons
are colored gold, source buttons are white.
2 To configure a source or destination, click on a button on the 'button mapping' panel.
If your Videohub Smart Control Pro is set as a Videohub controller, use the 'SDI signal' menu
to choose between single, dual or quad link SDI. If your Videohub is also routing RS-422 deck
control, you can set this in the 'router remote' field.
Blackmagic Videohub Setup 17
