Configuring the GPI and Tally Interface
If your Videohub does not have an Ethernet port, or if it is only accessible over a network:
1 Connect a USB type A to B cable from your GPI and Tally Interface to your computer.
2 Connect an Ethernet cable from the Ethernet IN port on your GPI and Tally Interface to your
Ethernet switcher.
3 Open Videohub Hardware Panel Setup.
4 You should see your GPI and Tally Interface with a USB icon next to it in the Videohub
Control Panels pane. Give your GPI and Tally Interface a unique name so it can be easily
recognized. To do so, click inside the GPI and Tally Name field and type a name.
5 Check the option to configure your IP address either Using DHCP or a Static IP. Depending
on your setup, you may choose either so it's probably a good idea to check with your
network administrator to see which is the better option.
6 In the Remote Videohub IP field, enter the IP address of the Videohub you want to connect
to. A red light next to the field will turn green and the LED on the GPI and Tally interface will
illuminate when a connection has been established.

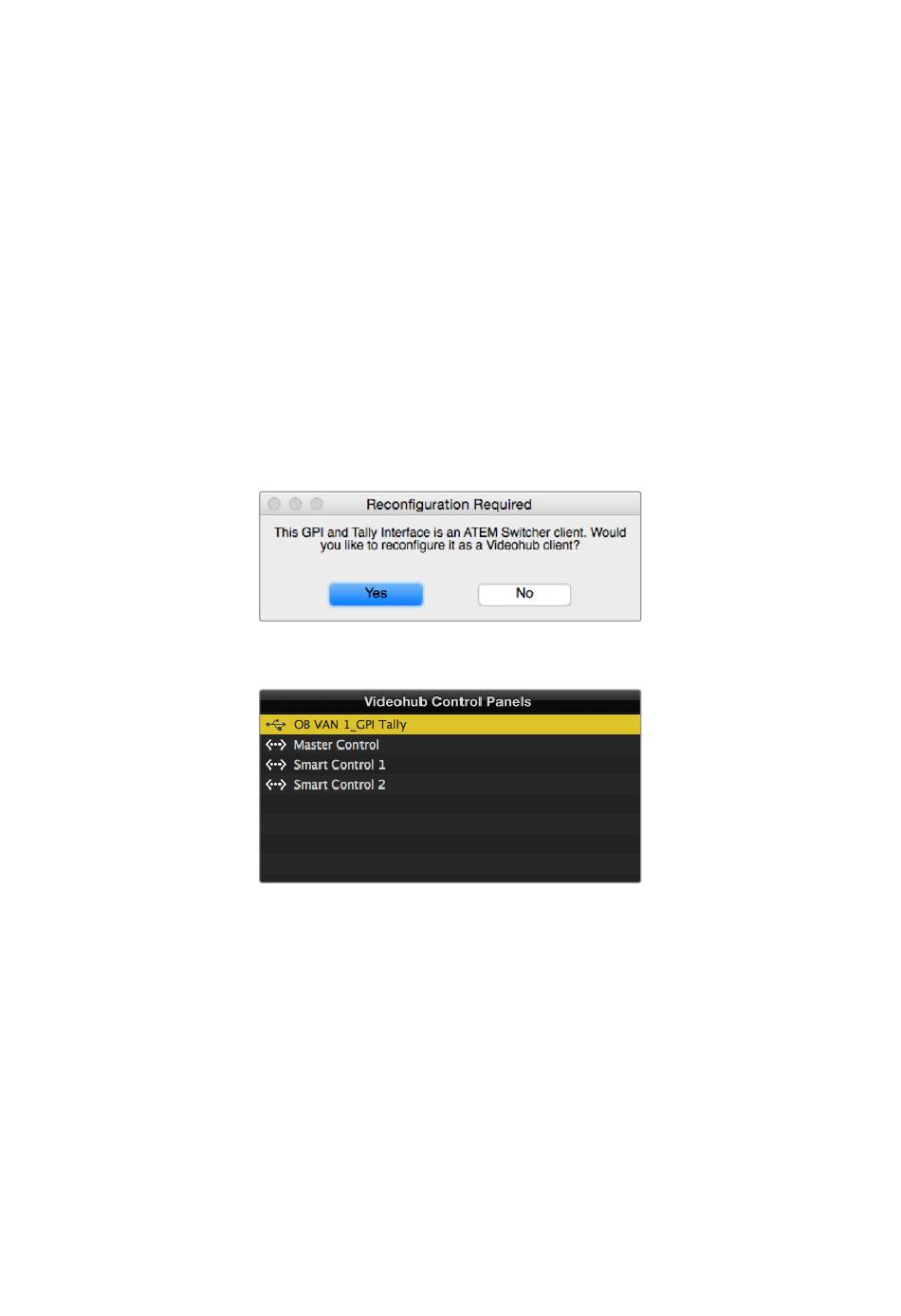

You will need to reconfigure your GPI and Tally Interface to work
with videohub
GPI and Tally Interface connected via USB
If you do not know the IP address of your Videohub:
1 Connect the Videohub to your computer via USB.
2 Launch the Videohub software and click on 'Videohub server preferences'.
3 Note down the IP address in the 'remote Videohub IP' address field.
Videohub Hardware Panel Setup 41
