7 Type in the source equipment number using the numeric pushbuttons, e.g., 03 for the
capture card named 'edit 03'. Each numeric button will flash white as you press it.
8 The 'take' button will flash red, awaiting your confirmation of the route change. Press 'take'
and the route will change immediately. Otherwise, press 'clear' and no route change will
take place. Videohub Master Control Pro will then return to its idle state with the latest route
displayed on the LCD.
If any button you have customized for either a source or destination flashes but does not
stay lit, Videohub Master Control Pro is preventing you from selecting the button because
the equipment type has not been labeled as a source or destination or does not match
the current routing level. For example, cameras should not usually be set as destinations,
monitors should not be set as sources and won't match the RS-422 routing level. Refer to
the information on 'button' mapping' in the 'Blackmagic Videohub Setup' section for steps
on how to change this.

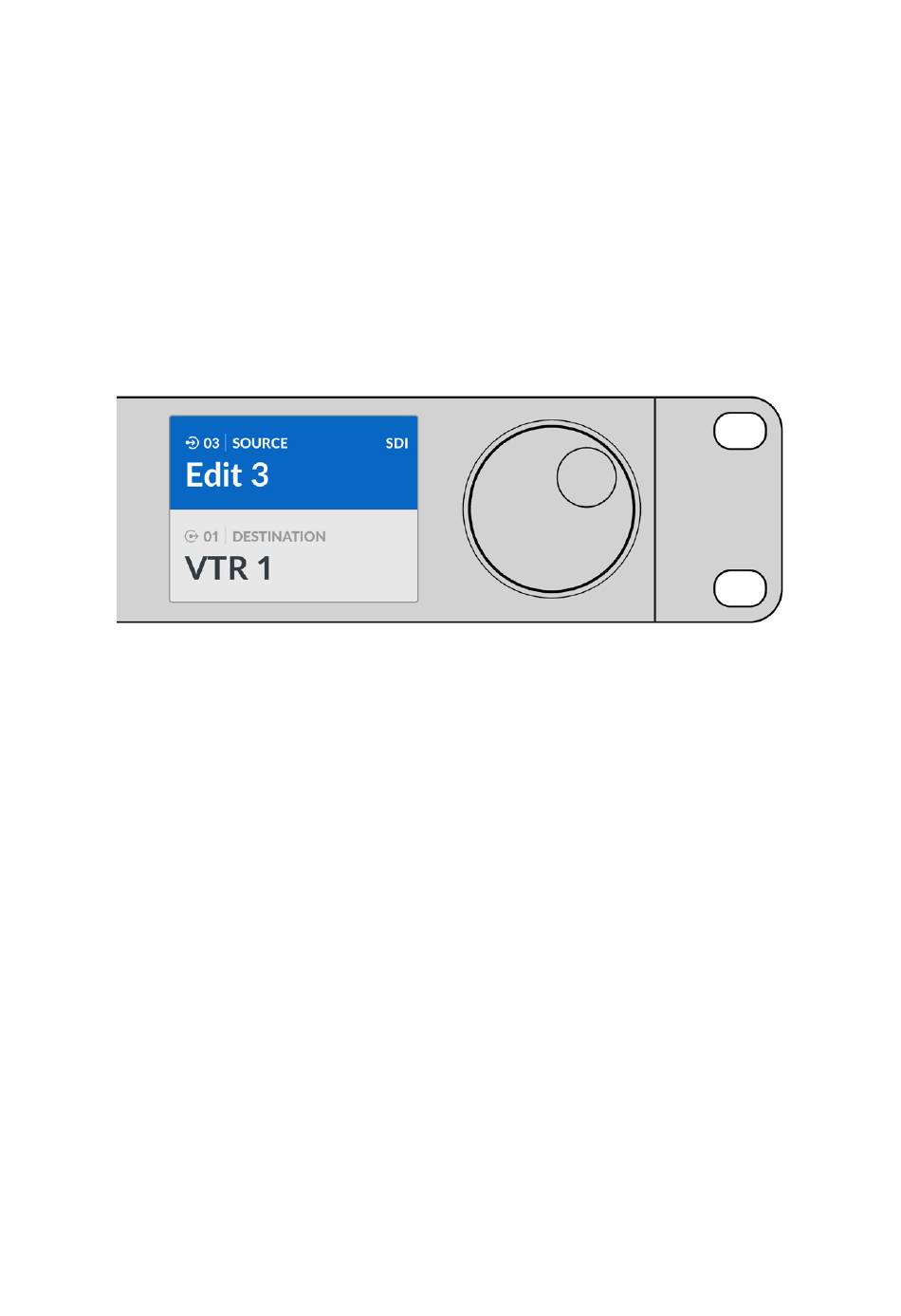

If you know that you want Edit 3 as the source, and VTR 1 as the destination, you can select the
route directly without any scrolling being necessary:
1 Press the destination button marked 'DEST'. Press the customized VTR button and then
press 1. VTR 1 will be shown in the destination field.
2 Press the source button marked 'SRC'. Press the customized Edit button and then press 3,
'Edit 3' will be shown in the source field.
3 Press 'take' to confirm the route change.
About Routing Levels
If your Videohub features RS-422 deck control ports, you can use the 'level' button on
Videohub Master Control Pro's front panel to reduce the list of sources and destinations by
routing level.
If your Videohub does not features RS-422 deck control, or if you have set your Master Control
Pro to be an NMOS controller, 'SDI' or 'NMOS' will always be displayed on the LCD display and
you don't need to read anything more about routing levels.
Changing Routing Levels
To switch between routing levels, start by pressing the destination 'dest' button. Now press the
'level' button to cycle through the routing levels:
SDI 422
Choose this routing level to reduce the list to video equipment with matching labels for their remote
and SDI ports. This level is commonly used with SDI capture cards and VTR decks but cannot be
used with cameras and monitors as they do not have RS-422 remote ports.
