Using Videohub Smart Control Pro
Videohub Smart Control Pro can be configured as a cut bus controller for routing sources
to a single destination, or as an XY controller for routing to multiple destinations. For more
information about configuring your Videohub Smart Control Pro, refer to the 'Blackmagic
Videohub Setup' section.
Cut Bus Controller
If Videohub Smart Control Pro has been configured as a cut bus controller, the destination has
already been chosen and you only need to choose a video source.
1
Select a white video source button. The button will light up to distinguish it from the
other sources. The video source will immediately connect and be viewable on the
destination equipment.
2
If the 'take' button has been enabled, the new source button and the 'take' button will flash.
The route change will only take place when you confirm by pressing the 'take' button.

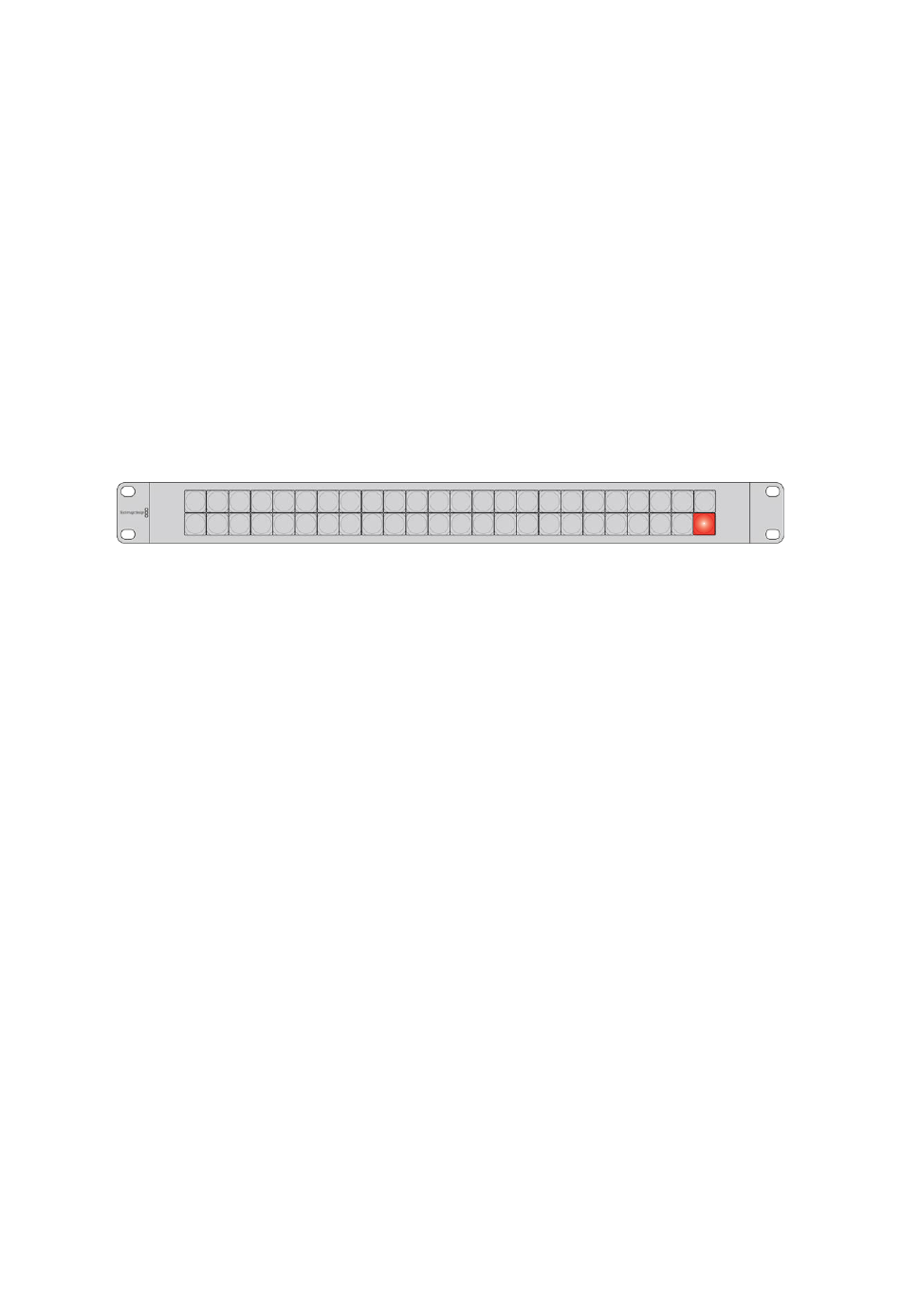

Videohub Smart Control Pro configured as a cut bus controller and with a 'take' button
XY Controller
If Videohub Smart Control Pro has been configured as an XY controller, destination buttons
light up gold and source buttons light up white. When working with multiple destinations, always
select a destination button before selecting a source button.
To change routes:
1
Select a gold destination button and it will light up brightly to distinguish itself from
the other destination buttons. If a video source has previously been connected to this
destination, its button will light up white.
2
To connect a new source to the destination, press the desired video source button.
The video source will immediately be connected and viewable on the destination
equipment. The new source button will be brightly lit and the previous source button will
dim to normal. To change another route, select another destination button and then select
a new source button.
3
If the 'take' button has been enabled, the new source button and the 'take' button will flash.
The route change will only take place when you confirm by pressing the 'take' button.
Using Videohub Smart Control Pro
31
