3 Using the numeric pushbuttons, type the destination number, e.g., 3 for Studio 3.
Each numeric button will flash gold as you press it.
4 Turn the spin knob clockwise or counterclockwise until the desired destination is found.
In this example, any of VTR 3, Edit 3, Mon 3A or Mon 3B could be displayed on the LCD. If
you make a mistake, press the white 'clear' button and select another destination number.
5 Press the source button marked 'SRC'. The source field will be highlighted blue on the LCD.
6
Using the numeric pushbuttons, type the source number, e.g., 3 for Studio 3. Each numeric
button will flash white as you press it.

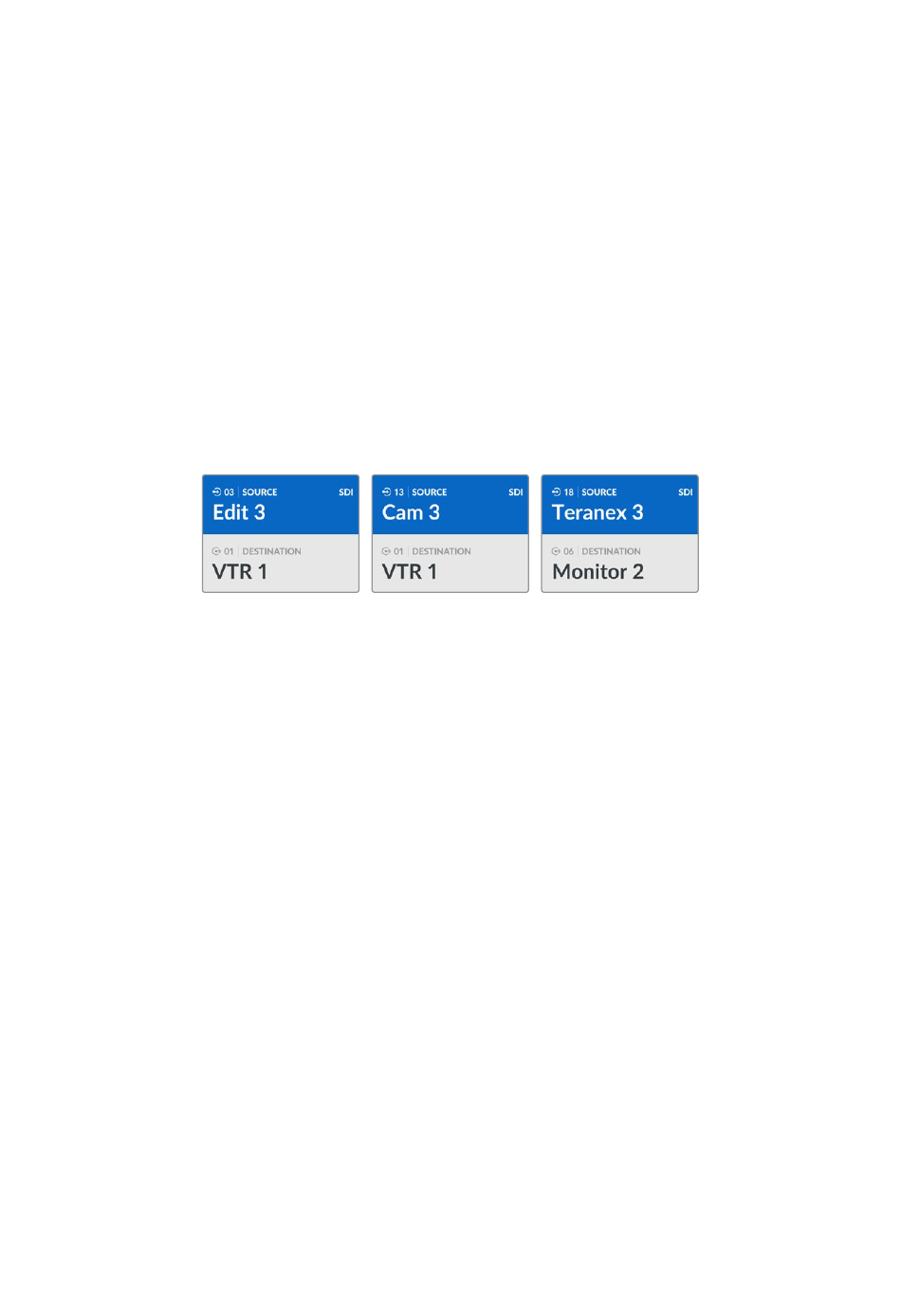

7 Turn the spin knob clockwise or counterclockwise until the desired source is found. In
this example, any of VTR 3, Edit 3, Cam 3A or Cam 3B could be displayed on the LCD.
If you make a mistake, press the white CLEAR button and select another source number.
8 The 'take' button will flash red, awaiting your confirmation of the route change. Press 'take'
and the route will change immediately. Otherwise, press 'clear' and no route change will
take place. Videohub Master Control Pro will then return to its idle state with the latest route
displayed on the LCD.
In this example, the numeric button '3' has been selected so only video sources with a
3 in their label will be listed on the LCD when the spin knob is rotated. This provides a
fast way to find a video source because you only have to scroll through a short list of
equipment based upon a group number. In this example, Videohub will only list the
equipment in Studio 3.
Selecting Routes using Both Customizable and Numeric Buttons
If you have customized the Videohub port labels with names and numbers or set your Videohub
Master Control Pro as an NMOS controller, you can use the customizable buttons and numeric
buttons together to directly select sources and destinations. This method is very fast and
intuitive because you don't have to scroll through a list of equipment and you only have to
remember how many of each type of equipment you have, e.g., two VTRs and four monitors.
This method is very helpful if you label types of equipment by name and number, e.g., VTR 01,
VTR 02, Cam 01, Cam 02, Cam 03, Mon 01, Mon 02, Mon 03 and Mon 04.
1 Press the destination button marked 'DEST'. The destination field will be highlighted blue
on the LCD.
2 If your Videohub router has RS-422 remote control, press the 'level' button until you have
set the appropriate routing level for your equipment. Otherwise you can skip this step.
3 Press a button you have customized for a type of destination equipment, e.g., VTR.
The button should light gold.
4 Type in the destination equipment number using the numeric pushbuttons, e.g., 07 for VTR
07. Each numeric button will flash gold as you press it.
5 Press the source button marked 'SRC'. The source field will be highlighted blue on the LCD.
6 Press a button you have customized for a type of source equipment, e.g., a capture card.
The button should light white.
Using Videohub Master Control Pro 27
