1 Press the destination button marked 'DEST'. The destination field will be highlighted blue
on the LCD.
2 If your Videohub router has RS-422 remote control, press the 'level' button until you have
set the appropriate routing level for your equipment. Otherwise you can skip this step.
3 Press a button you have customized for a type of destination equipment, e.g., VTR.
The button should light up gold.
4
Turn the spin knob clockwise or counterclockwise until the desired destination is found.
In this example, the destination VTR will be displayed on the LCD. If you make a mistake,
press the white 'clear' button and scroll until the correct destination is displayed.
5 Press the source button marked 'SRC'. The source field will be highlighted blue on the LCD.
6 Press a button you have customized for a type of source equipment, e.g., a capture card.
The button should light up white.
7 Turn the spin knob clockwise or counterclockwise until the desired source is found. In this
example, the source capture card will be displayed on the LCD. If you make a mistake,
press the white 'clear' button and scroll until the correct source is displayed.
8 The 'take' button will flash red, awaiting your confirmation of the route change. Press 'take'
and the route will change immediately. Otherwise, press 'clear' and no route change will
take place. Videohub Master Control Pro will then return to its idle state with the latest route
displayed on the LCD.
If any button you have customized for either a source or destination flashes but does not
stay lit, Videohub Master Control Pro is preventing you from selecting the button because
the equipment type has not been labeled as a source or destination or does not match the
current routing level. For example, a camera should not usually be set as a destination and
a monitor should not be set as a source. Refer to 'configuring Videohub Master Control Pro'
for steps on how to change this.

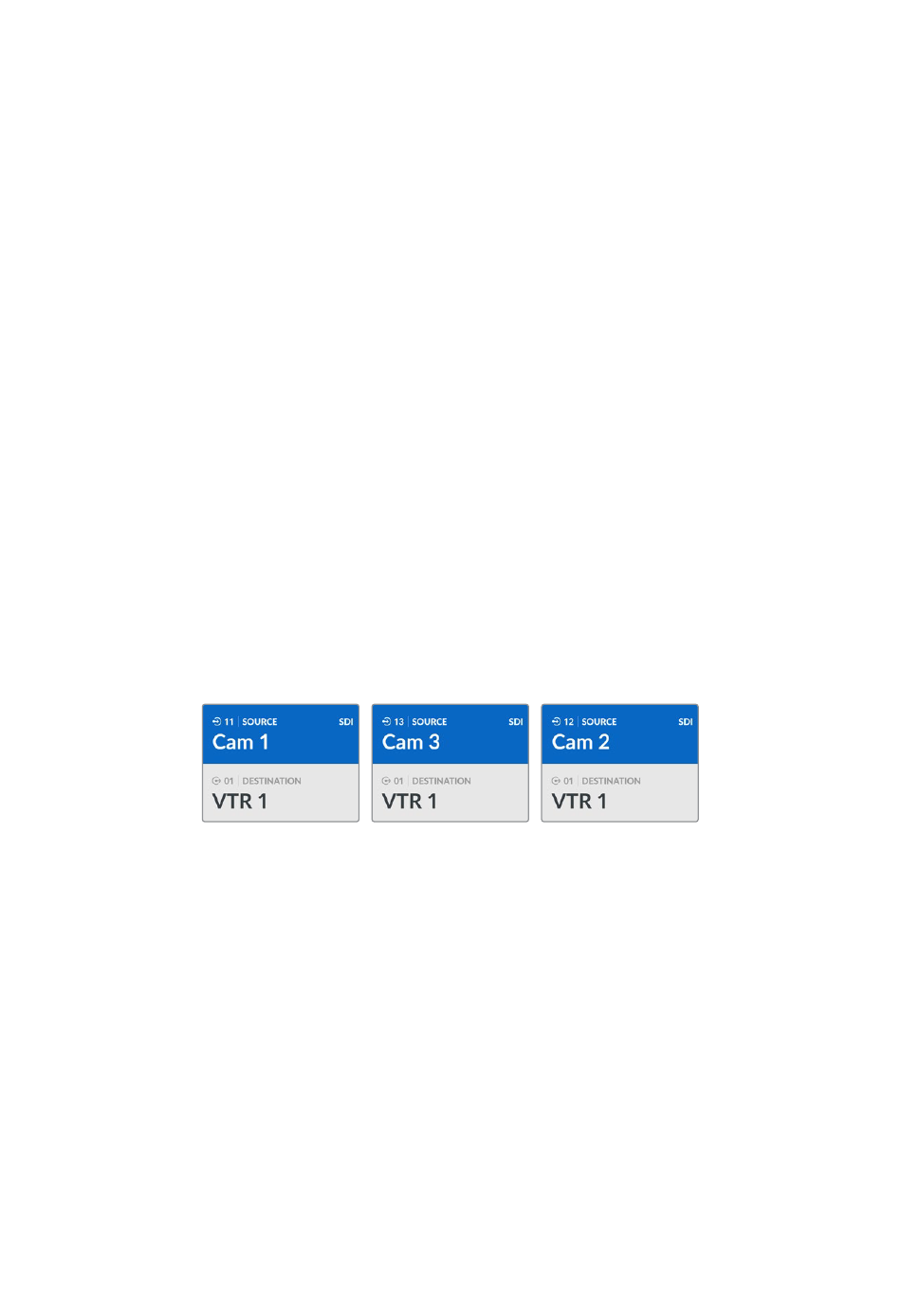

In this example, a customized Cam button has been selected so only cameras will be
listed as sources, on the LCD, when the spin knob is rotated. This provides a fast way
to find a video source because you only have to scroll through a short list of
equipment.
Selecting Routes using Numeric Buttons and the Spin Knob
If you have customized the Videohub port labels with numbers or set your Videohub Master
Control Pro as an NMOS controller, you can use the numeric buttons and spin knob together
to find a short list of sources and destinations. This method is fast and intuitive because you
only have to scroll through a short list of equipment and you don't have to remember any port
numbers. This method is very helpful if you label groups of equipment together by numbers,
perhaps to represent locations. For example, all the equipment in Studio 3 could be labeled
VTR3, Edit 3, Cam 3A, Cam 3B, Mon 3A and Mon 3B etc.
1 Press the destination button marked 'DEST'. The destination field will be highlighted blue
on the LCD.
2 If your Videohub router has RS-422 remote control, press the 'level' button until you have
set the appropriate routing level for your equipment. Otherwise you can skip this step.
