If the pump set cannot be started via the two buttons, or if the
controller is defective (the yellow indicator light "DIESEL
CONTROLLER FAULT" is on), the last possibility is to start the
engine via the two emergency startup buttons behind the glass
panel. See fig. 12. To do this, break the glass panel. Carry out the
start attempts alternately using the left and the right button.
Press the button until the engine starts up, however not longer
than 15 seconds. Stop the engine as described in section
12.1 Automatic operation.

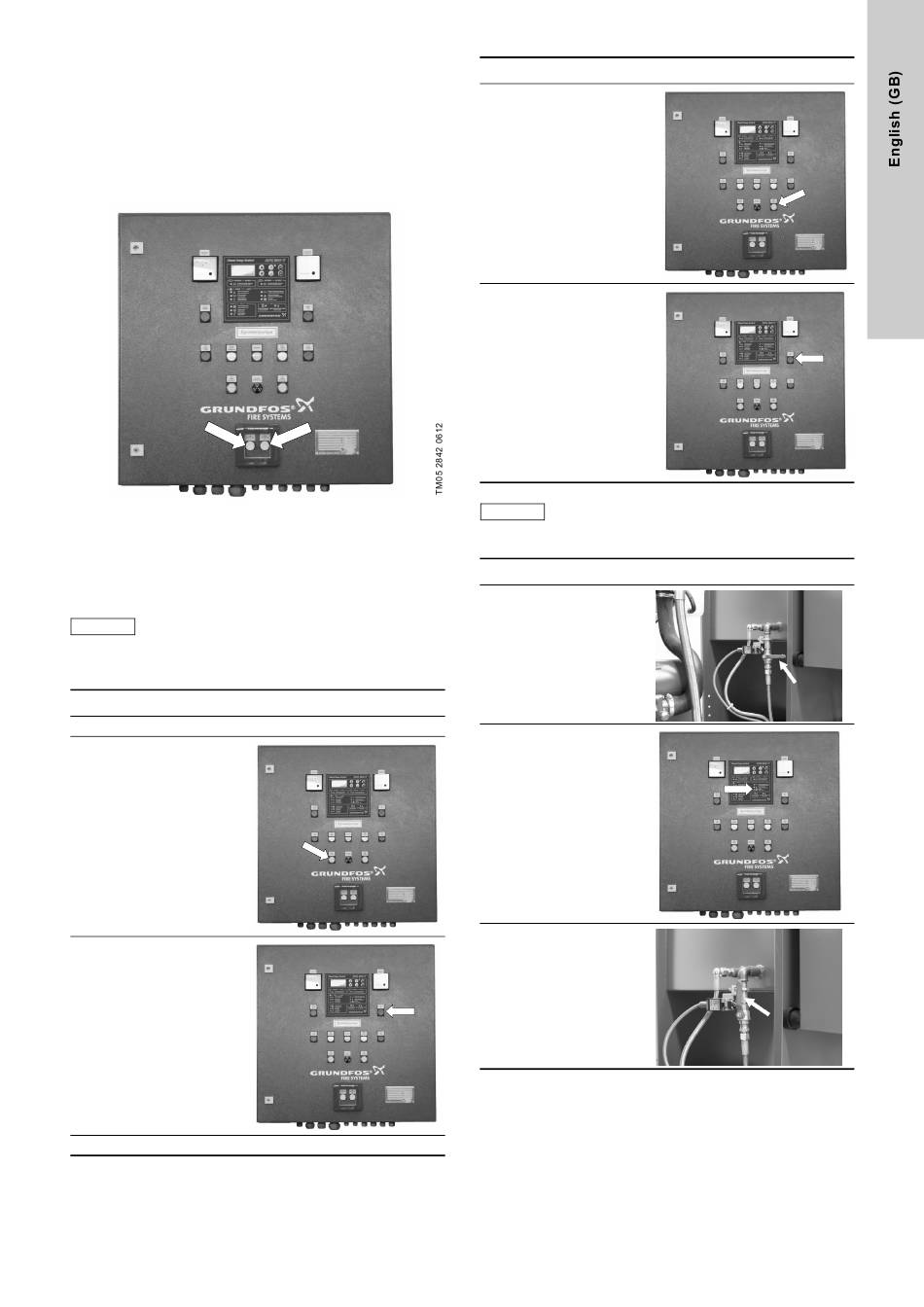

Fig. 12 Emergency start when controller fails

12.4 Test run

The function of the emergency start device and the automatic
start function must be tested during a test run.
Do not leave the pump room during the test run.
Observe all operating and fault indications as the
Caution
pump set does not stop automatically in case of
fault (e.g. no cooling water or no oil).
Checking the emergency startup device
Step
1. Open the isolating valve of the test pipe.
2. Start the pump set
by pressing
[Test, emergency start 1].
3. Stop the pump set by
pressing [Stop engine].
4. Close the isolating valve of the test pipe.
Step
5. Start the pump set by
6. Stop the pump set by
Checking the automatic start function
Step
1. Close the fuel valve on
Figure
2. After six failed start
3. Open the fuel valve on
pressing
[Test, emergency start 2].
pressing [Stop engine].
After stopping, the pump set returns to automatic
Note
mode.
the fuel tank and open
the isolating valve of
the test pipe.
This results in failed
start attempts.
attempts, indicator
light "FAILURE TO
START" lights up.
the fuel tank.
Figure
Figure
21
