Button functions

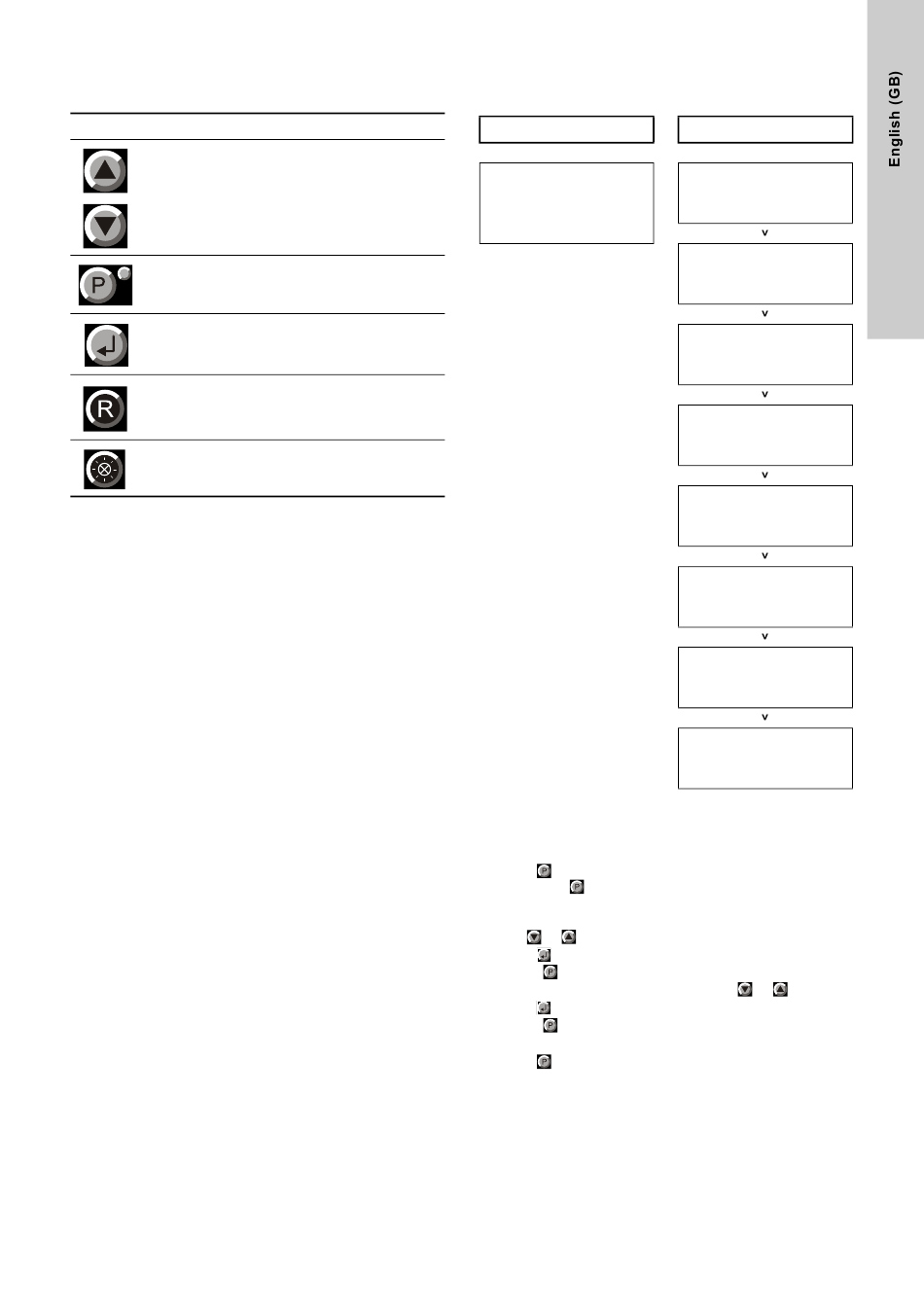

The following table shows the function of the individual operating
buttons.
Button Function
Setting of contrast
Navigation between displays
Changing of parameter values
Entering selection mode
Exiting selection mode
Activation of entry mode
Storing of parameter values
Resetting of alarms
Indicator light test
Indicator lights
The indicator lights are explained in section
indications.

8.1 Menu structure

The menu structure including the sequence of setting screens is
illustrated below.
1700 rpm
T = 80 °C
00000H
B1 = 24 V
8.3 Status and fault
Fig. 6

8.2 Settings

To change parameters, proceed as follows:
1. Press
2. Select the setting display of the parameter you wish to change
3. Press
4. Change the parameter value by pressing
5. Press
6. To change other parameters, repeat steps 2 to 5.
7. Press
Status
Press1
Oil = 3b
Fuel = 100 %
B2 = 24 V
Menu structure
to enter the selection mode. The green indicator
light next to lights up, and instead of the status display, the
first setting display will be shown.
with or .
to change the parameter. The green indicator light
next to starts flashing.
, to save the parameter. The green indicator light
next to is now on.
to activate the changes and return to the status
display.
Setting
Menu Parameters
Language
English
Menu Parameters
Password
0
Menu Parameters
Cal. rev. counter
1700 rpm
Menu Parameters
Cal. engine on
No
Menu Parameters
Starting B1&B2
6 starts
Menu Parameters
Start time off
7.0 sec.
Menu Parameters
Start time on
5.0 sec.
Menu Parameters
Stop time
10 sec.
or .
