Synthesizer Voice A-111-5
1
2
3b
3a
5
4
6b
6a
6
System A-100

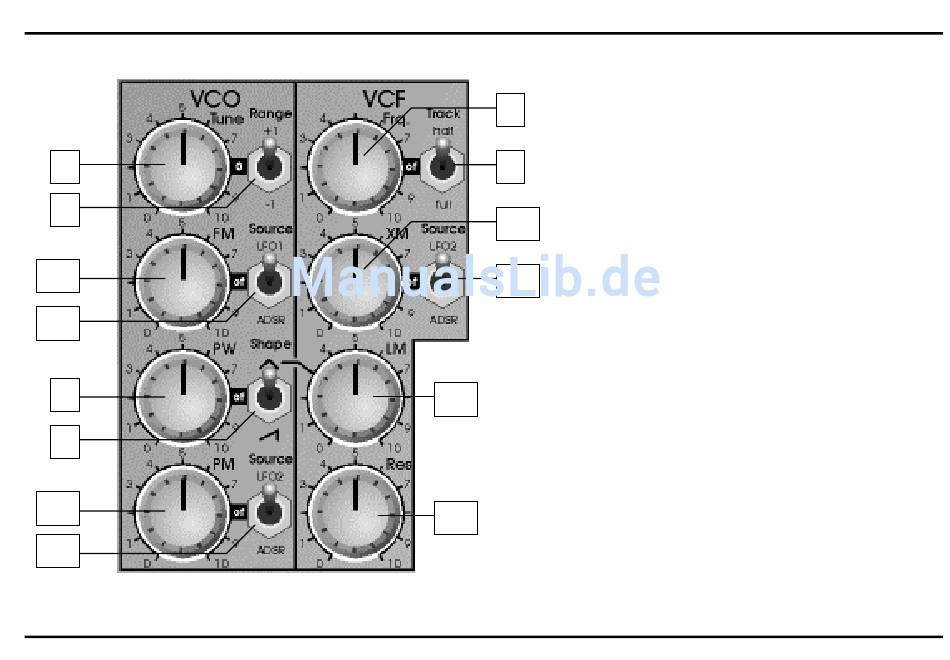

Fig. 2a: Front Panel
(VCO and VCF)
7
1 VCO Tune
8
2 VCO Range Switch (Octave Switch)
3a VCO FM Source Switch
3b VCO FM Level
9b
4 VCO Waveshape Switch
5 VCO Rectangle Pulsewidth
6a VCO Pulsewidth Modulation Source
9a
6b VCO Pulsewidth Modulation Level
7 VCF Frequency
8 VCF Tracking Switch
9a VCF exponential FM Source Switch
10
9b VCF exponential FM Level
10 VCF linear FM Level
