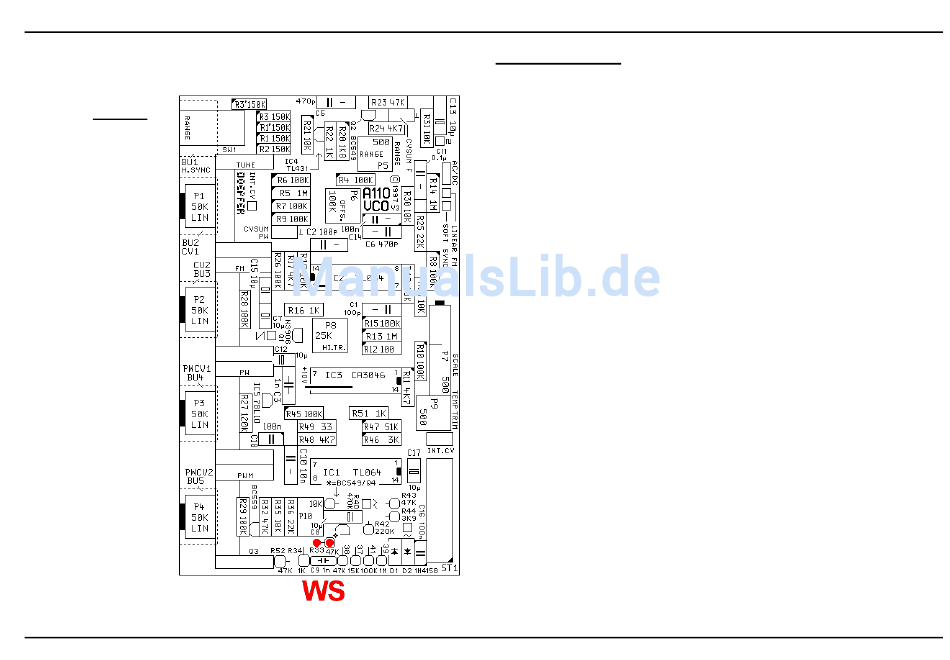

5.15. A-110 VCO (triangle/sine waveshaping)
Affected resistor:
waveshaping: R33
changes the
waveshape of the
triangle and sine
outputs:
triangle → → → → saw
sine → → → → half sine
System A-100
More examples:
A-120 24dB Transistor ladder low pass
resonance control : P5 // vactrol
A-145 Standard LFO
frequency control : R4 100k → 1M // vactrol
(// = parallel connection)
to be continued ...
