3. Overview

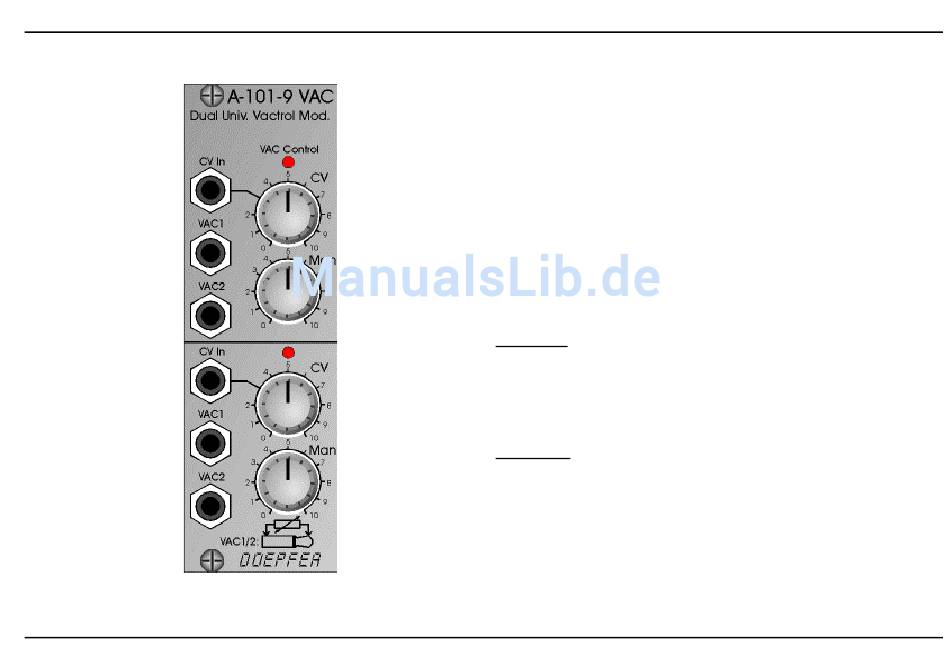

Fig. 3: front panel
System A-100
Controls:
1
2
3
In- / Outputs:
!
"
"
Remark 1: The front panel scale of the CV input control
wrong for the first series of modules. This control is a
polarizer not a simple attenuator as shown on the front
panel. The attenuator has been replaced by a polarizer after
the front panels of the first series have already been printed.
Remark 2: In contrast to other A-100 sockets the VCA1/2
sockets
vactrol are connected to the two terminals of the socket in
question.
Universal Vactrol Module A-101-9
CV: polarizer for CV input
Man.: manual vactrol resistance control
VAC control: LED display
CV In: control voltage input
a VAC1: vactrol 1 connector
b VAC2: vactrol 2 connector
" " " "
a/b are not grounded, i.e. the two terminals of the
1
is
4
