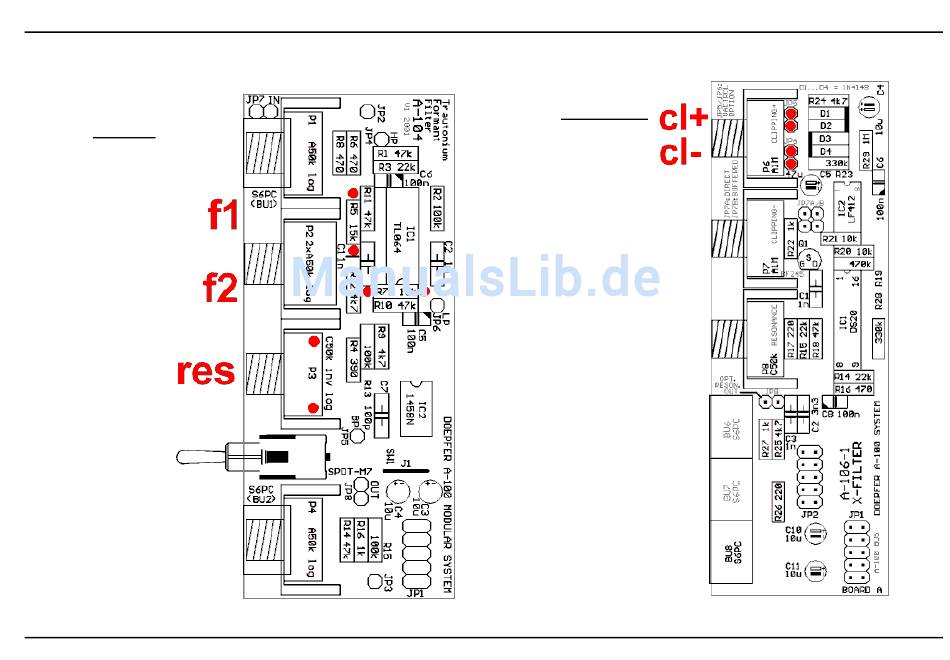

5.9. A-104 Trautonium filter (frequency, resonance)
Affected resistors:
frequency: R5 + R7
(have to be increased
from 15k to about 1M
and connected in
parallel to VAC1 and
VAC2 of the same
sub-unit)
Affected potentiometers:
resonance: P3
System A-100
5.10. X-treme Filter A-106-1 (clipping)
Affected pin headers:
clipping + : JP5
clipping – : JP6
For simultaneous
control of cl+ and cl-
VAC1 and VAC2 of the
same sub-unit are used.
For separate control
of cl+ and cl- VAC1
(or VAC2) of two
separate sub-units are
used.
Universal Vactrol Module A-101-9
