DOEPFER SYSTEM A - 100 Bedienungsanleitung Seite 199

X-treme Filter A-106-1
3. Overview
! ! ! !
1 1 1 1
" " " "
2 2 2 2
§ § § §
3 3 3 3
$ $ $ $
4 4 4 4
% % % %
5 5 5 5

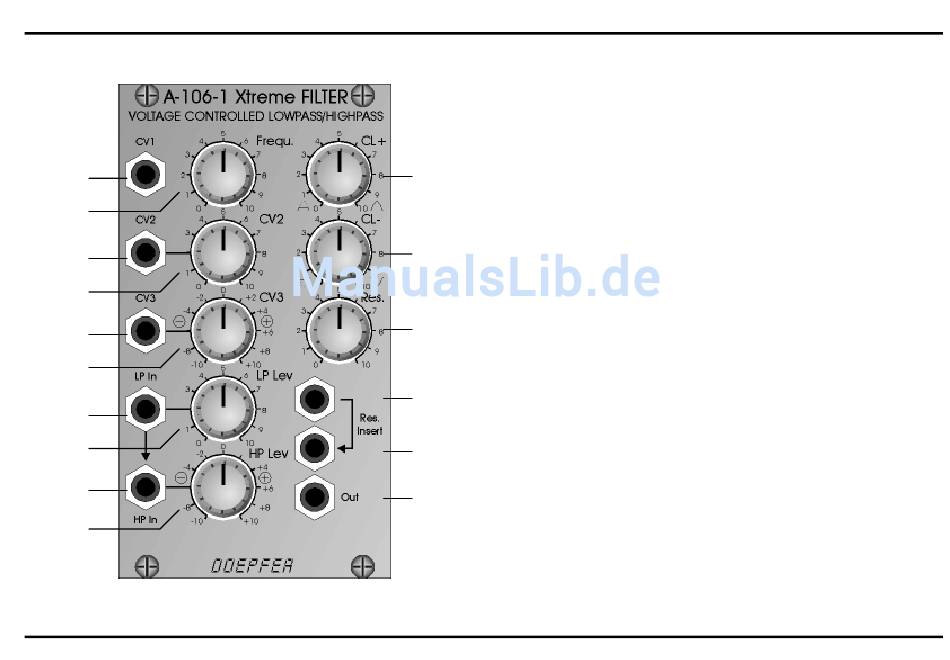

Fig. 4: front panel
8
System A-100
Controls:
1
Frequ. :
2
CV2:
3
CV3:
6 6 6 6
4
LP Level:
5
HP Level:
6
CL+:
7 7 7 7
7
CL–:
8
Res.:
In- / Outputs:
8 8 8 8
!
CV1:
"
CV2:
§
CV3:
& & & &
$
LP In:
%
HP In:
/ / / /
&
Res. Insert:
/
Res. Insert:
( ( ( (
(
Out:
(*) function depends upon jumper settings
Width: 14HP
Current: 30 mA
DOEPFER DOEPFER
DOEPFER DOEPFER
manual frequency control
attenuator for CV2
polarizer for CV3
low pass audio input attenuator
high pass audio input polarizer/
attenuator (*)
positive clipping control
negative clipping control
resonance level control
CV1 input (without attenuator/polarizer)
CV2 input (with attenuator)
CV3 input (with polarizer/attenuator) (*)
low pass audio input
high pass audio input
(normalled to low pass audio input
resonance insert (output)
resonance insert (input)
audio output
$
)
