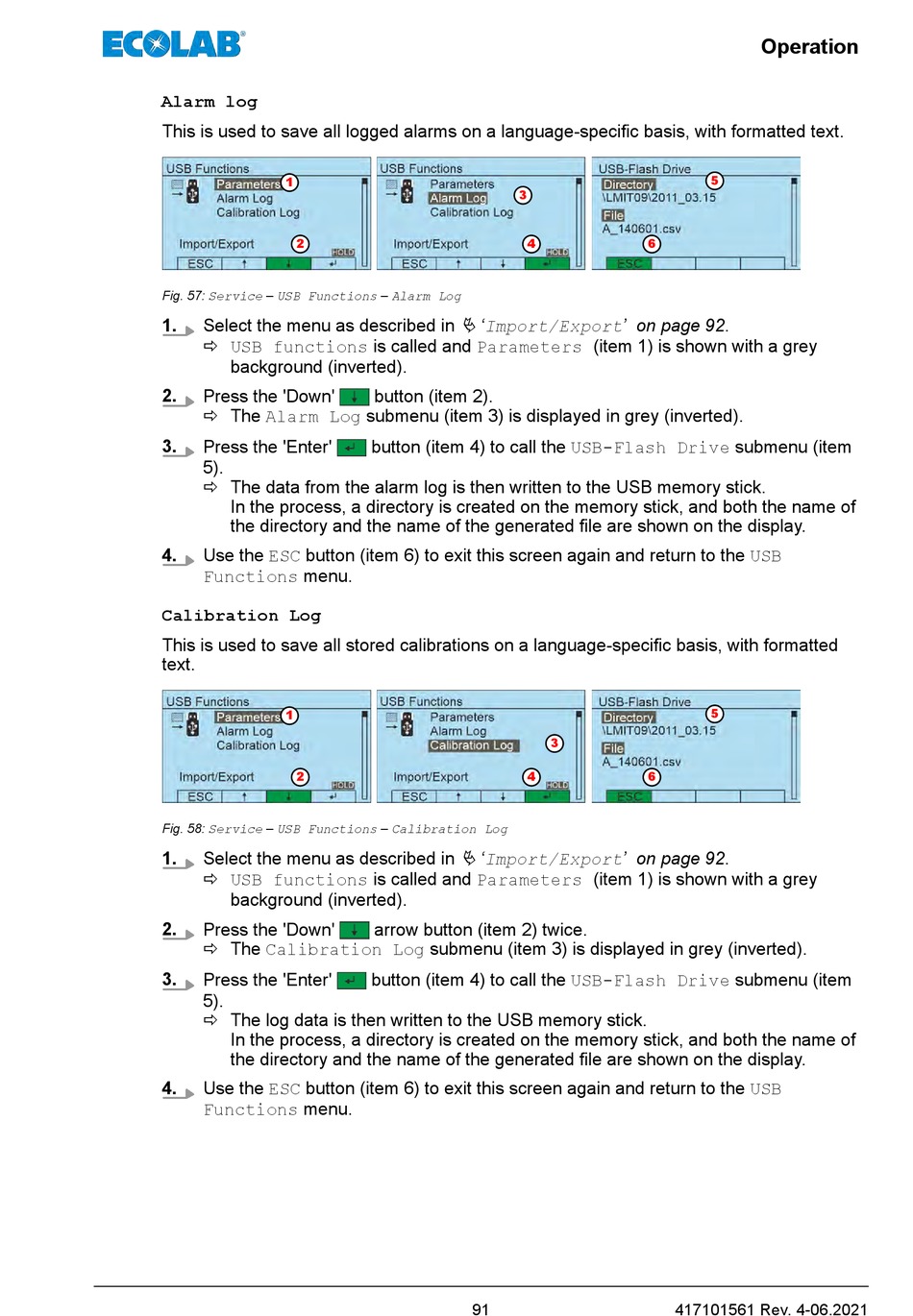

Alarm log
This is used to save all logged alarms on a language-specific basis, with formatted text.
1
2
Fig. 57: Service – USB Functions – Alarm Log
1. Select the menu as described in
ð USB functions is called and Parameters (item 1) is shown with a grey
background (inverted).
2.
Press the 'Down'
ð The Alarm Log submenu (item 3) is displayed in grey (inverted).
3.
Press the 'Enter'
5).
ð The data from the alarm log is then written to the USB memory stick.
In the process, a directory is created on the memory stick, and both the name of
the directory and the name of the generated file are shown on the display.
4. Use the ESC button (item 6) to exit this screen again and return to the USB
Functions menu.

Calibration Log

This is used to save all stored calibrations on a language-specific basis, with formatted
text.
1
2
Fig. 58: Service – USB Functions – Calibration Log
1. Select the menu as described in
ð USB functions is called and Parameters (item 1) is shown with a grey
background (inverted).
2. Press the 'Down'
ð The Calibration Log submenu (item 3) is displayed in grey (inverted).
3. Press the 'Enter'
5).
ð The log data is then written to the USB memory stick.
In the process, a directory is created on the memory stick, and both the name of
the directory and the name of the generated file are shown on the display.
4. Use the ESC button (item 6) to exit this screen again and return to the USB
Functions menu.
3
4
Ä 'Import/Export' on page 92.
button (item 2).
button (item 4) to call the USB-Flash Drive submenu (item
4
Ä 'Import/Export' on page 92.
arrow button (item 2) twice.
button (item 4) to call the USB-Flash Drive submenu (item
91
5
6
5
3
6
