8.3

Operating diagram

All images below are examples only.
The actual values displayed are determined by the measuring task.
2
3
4
5
2
3
4
5

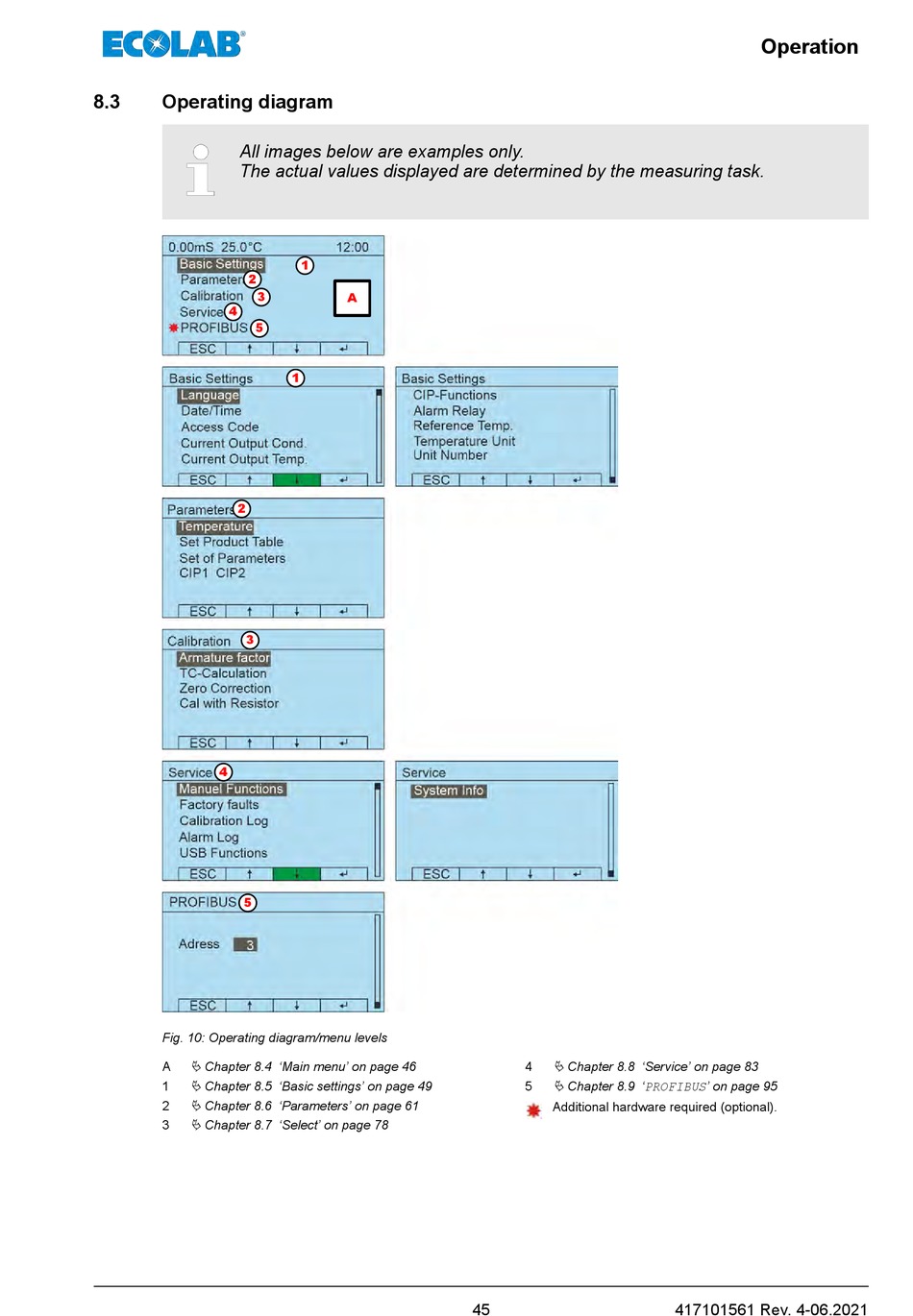

Fig. 10: Operating diagram/menu levels
A Ä Chapter 8.4 'Main menu' on page 46
1 Ä Chapter 8.5 'Basic settings' on page 49
2 Ä Chapter 8.6 'Parameters' on page 61
3 Ä Chapter 8.7 'Select' on page 78
1
A
1
4 Ä Chapter 8.8 'Service' on page 83
5 Ä Chapter 8.9 'PROFIBUS' on page 95
Additional hardware required (optional).
