ECOLAB LMIT09 DPV1 Betriebsanleitung Seite 178

Define your own product curves, 4-10 sampling points, Tca and reference
temperature
NOTICE!
These settings must be made only by authorised Ecolab employees.
A

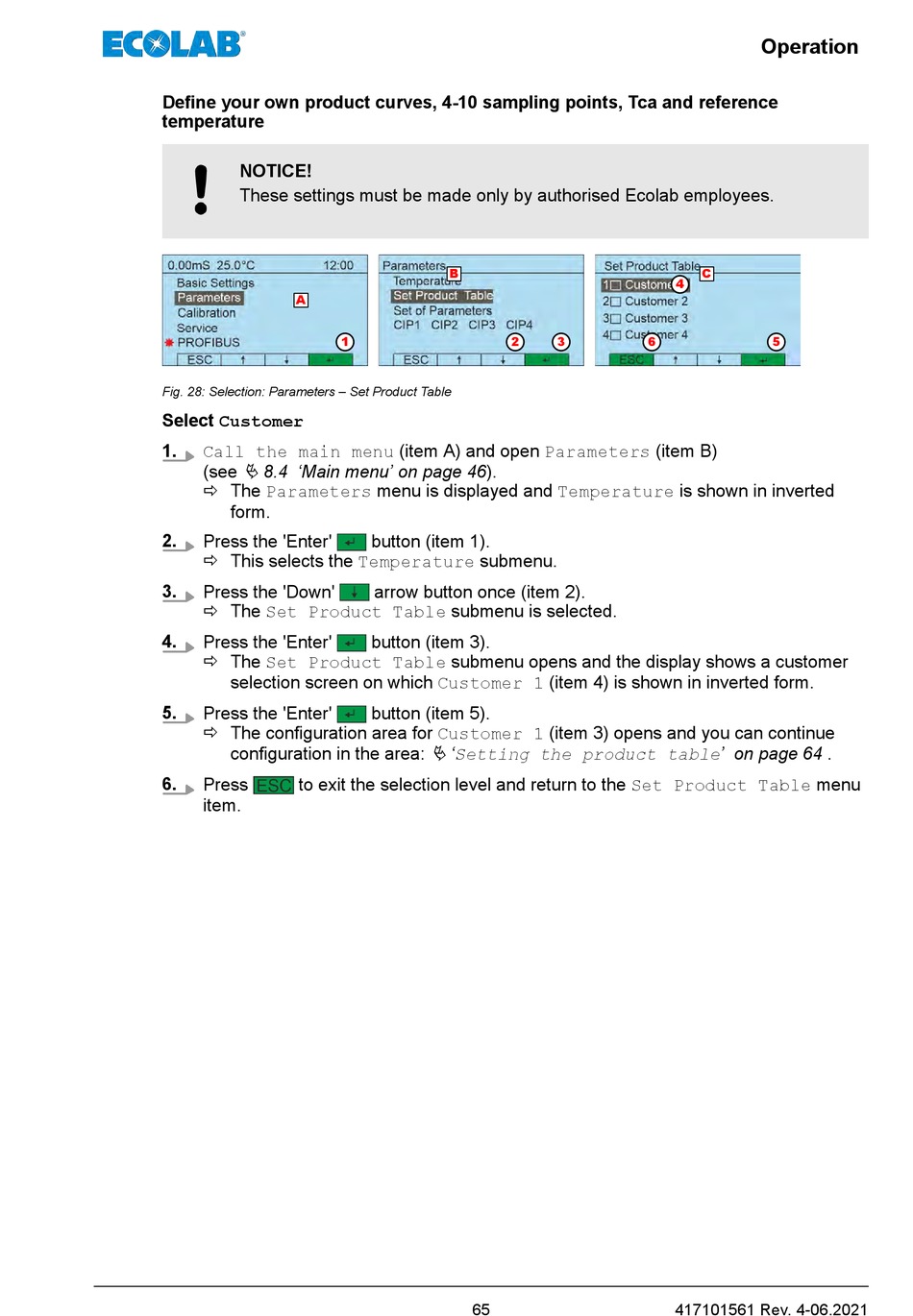

Fig. 28: Selection: Parameters – Set Product Table
Select Customer
1. Call the main menu (item A) and open Parameters (item B)
Ä 8.4 'Main menu' on page 46).
(see
ð The Parameters menu is displayed and Temperature is shown in inverted
form.
2. Press the 'Enter'
ð This selects the Temperature submenu.
3.
Press the 'Down'
ð The Set Product Table submenu is selected.
4.
Press the 'Enter'
ð The Set Product Table submenu opens and the display shows a customer
selection screen on which Customer 1 (item 4) is shown in inverted form.
5. Press the 'Enter'
ð The configuration area for Customer 1 (item 3) opens and you can continue
configuration in the area:
6. Press to exit the selection level and return to the Set Product Table menu
item.
B
1 2
button (item 1).
arrow button once (item 2).
button (item 3).
button (item 5).
Ä 'Setting the product table' on page 64 .
65
C
4
3 6
417101561 Rev. 4-06.2021
Operation
5
