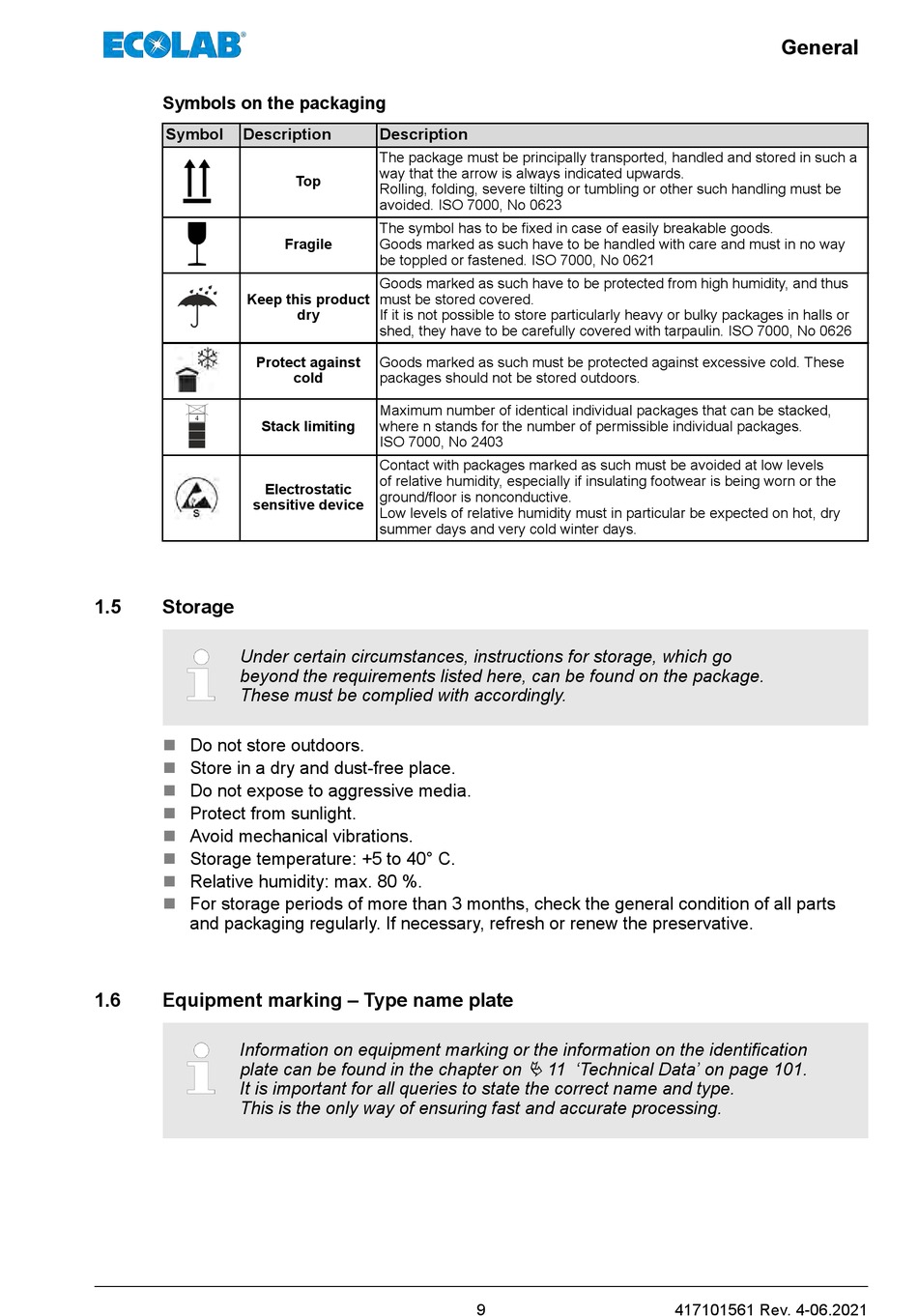

Symbols on the packaging
Symbol Description
Keep this product
Protect against
Stack limiting
Electrostatic
sensitive device
1.5

Storage

Under certain circumstances, instructions for storage, which go
beyond the requirements listed here, can be found on the package.
These must be complied with accordingly.
n Do not store outdoors.
n Store in a dry and dust-free place.
n Do not expose to aggressive media.
Protect from sunlight.
n
n Avoid mechanical vibrations.
n Storage temperature: +5 to 40° C.
n Relative humidity: max. 80 %.
n For storage periods of more than 3 months, check the general condition of all parts
and packaging regularly. If necessary, refresh or renew the preservative.
1.6 Equipment marking – Type name plate
Information on equipment marking or the information on the identification
plate can be found in the chapter on
It is important for all queries to state the correct name and type.
This is the only way of ensuring fast and accurate processing.
Description
The package must be principally transported, handled and stored in such a
way that the arrow is always indicated upwards.
Top
Rolling, folding, severe tilting or tumbling or other such handling must be
avoided. ISO 7000, No 0623
The symbol has to be fixed in case of easily breakable goods.
Fragile Goods marked as such have to be handled with care and must in no way
be toppled or fastened. ISO 7000, No 0621
Goods marked as such have to be protected from high humidity, and thus
must be stored covered.
dry If it is not possible to store particularly heavy or bulky packages in halls or
shed, they have to be carefully covered with tarpaulin. ISO 7000, No 0626
Goods marked as such must be protected against excessive cold. These
cold packages should not be stored outdoors.
Maximum number of identical individual packages that can be stacked,
where n stands for the number of permissible individual packages.
ISO 7000, No 2403
Contact with packages marked as such must be avoided at low levels
of relative humidity, especially if insulating footwear is being worn or the
ground/floor is nonconductive.
Low levels of relative humidity must in particular be expected on hot, dry
summer days and very cold winter days.
Ä 11 'Technical Data' on page 101.
9
General
417101561 Rev. 4-06.2021
