Operation
Measuring mode
NOTICE!
You use the 'Measuring Mode' setting to switch between conductivity
measurement and concentration measurement. When using concentration
measurement, you can select one of the saved product curves (from 74
product curves) or one of up to
four customer curves.
11

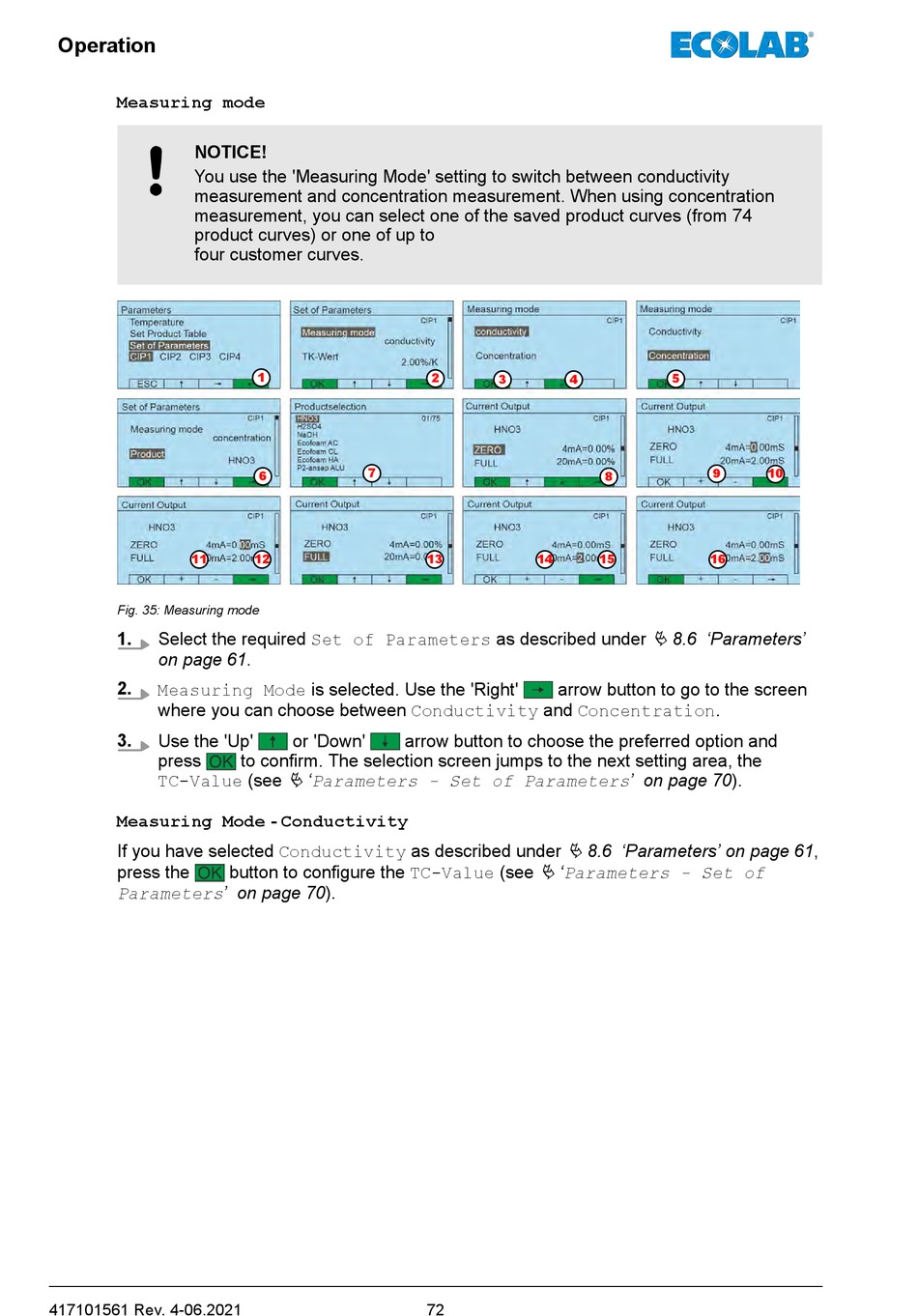

Fig. 35: Measuring mode
1. Select the required Set of Parameters as described under
on page 61.
2.
Measuring Mode is selected. Use the 'Right'
where you can choose between Conductivity and Concentration.
3.
Use the 'Up'
press
TC-Value (see
Measuring Mode - Conductivity
If you have selected Conductivity as described under
press the
Parameters' on page 70).
417101561 Rev. 4-06.2021
1
7
6
12
or 'Down'
to confirm. The selection screen jumps to the next setting area, the
Ä 'Parameters - Set of Parameters' on page 70).
button to configure the TC-Value (see
2
3 4
13 14
arrow button to go to the screen
arrow button to choose the preferred option and
Ä 8.6 'Parameters' on page 61,
Ä 'Parameters - Set of
72
5
9
10
8
15 16
Ä 8.6 'Parameters'
