Operation
8.2

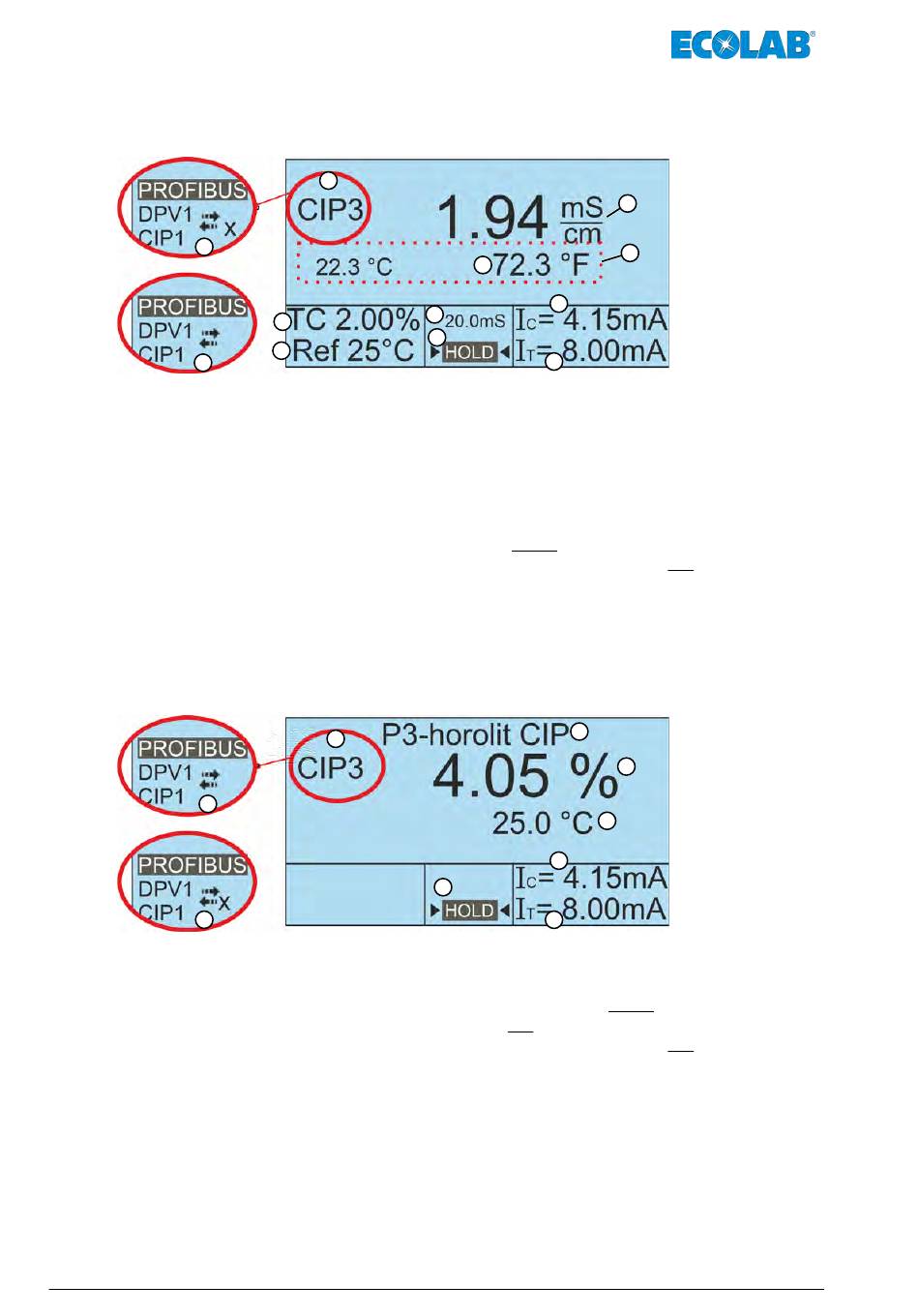

Display indicators
Operating status - mode: Conductivity
10
11
Fig. 8: Display mode: Conductivity
1
Conductivity reading
2
Temperature display Display screen with °C selected
as the unit of temperature. Display screen with °F
selected as the unit of temperature. The value shown
on the right is changed to °F, and the converted
temperature in °C is shown on the left. ).
3
Conductivity output current
4
Temperature output current
5
Visible if the left-hand function button is pressed
(access main menu).
6
Visible if the right-hand function button is pressed.
Display of the uncompensated conductivity (current
output is also changed). CAUTION: Only if TC≠ 0.00%
Operating status - mode: Concentration
9
8
Fig. 9: Mode: Concentration
1
Concentration of the product by weight in %
2
Temperature reading
3
Conductivity output current
4
Temperature output current
5
Visible if the left-hand function button is pressed
(access main menu)
6
Product name of the selected product
7
Active CIP range – displayed only if the CIP function
has been configured
417101561 Rev. 4-06.2021
9
6
8
5
7
6
5
44
1
2
12
3
4
7
Reference temperature
8
Temperature coefficient
9
Active CIP range – only displayed if the CIP function
has been configured.
10 Additional display (top left) upon
detection of an inserted Profibus module
(without data exchange with the master)
11
Display with data exchange with the master (the "X"
next to the lower arrow disappears and both arrows
flash)
7
1
2
3
4
8
Additional display (left) upon detection of an inserted
Profibus module (without data exchange
with the master)
9
Display with data exchange with the master
(the "X" next to the lower arrow disappears and both
arrows flash)
