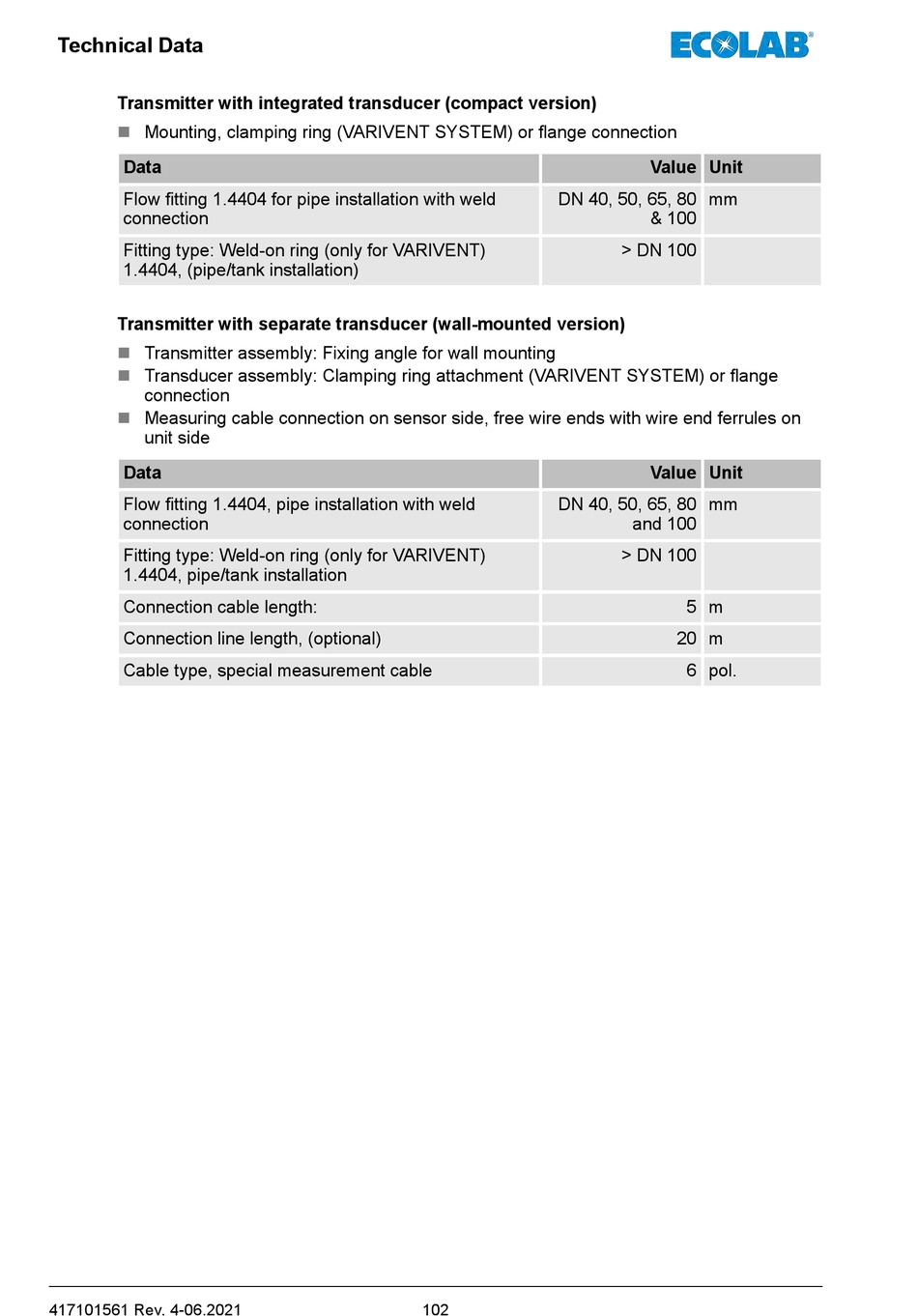

Technical Data
Transmitter with integrated transducer (compact version)
n Mounting, clamping ring (VARIVENT SYSTEM) or flange connection
Data
Flow fitting 1.4404 for pipe installation with weld
connection
Fitting type: Weld-on ring (only for VARIVENT)
1.4404, (pipe/tank installation)
Transmitter with separate transducer (wall-mounted version)
n Transmitter assembly: Fixing angle for wall mounting
n Transducer assembly: Clamping ring attachment (VARIVENT SYSTEM) or flange
connection
n Measuring cable connection on sensor side, free wire ends with wire end ferrules on
unit side
Data
Flow fitting 1.4404, pipe installation with weld
connection
Fitting type: Weld-on ring (only for VARIVENT)
1.4404, pipe/tank installation
Connection cable length:
Connection line length, (optional)
Cable type, special measurement cable
417101561 Rev. 4-06.2021
DN 40, 50, 65, 80
DN 40, 50, 65, 80
102
Value Unit
mm
& 100
> DN 100
Value Unit
mm
and 100
> DN 100
5 m
20 m
6 pol.
