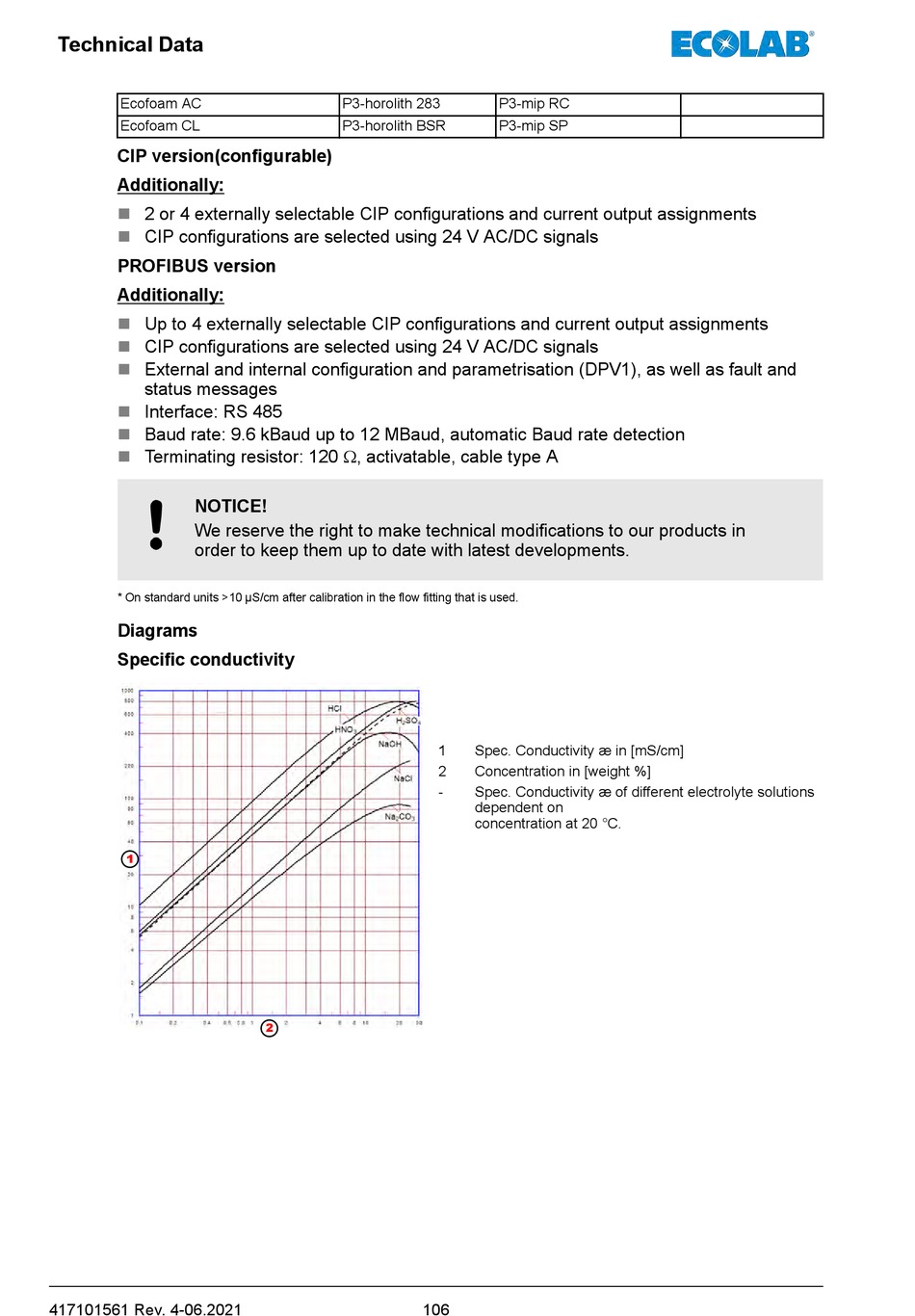

Technical Data
Ecofoam AC
Ecofoam CL
CIP version(configurable)
Additionally:
n 2 or 4 externally selectable CIP configurations and current output assignments
CIP configurations are selected using 24 V AC/DC signals
n
PROFIBUS version
Additionally:
n Up to 4 externally selectable CIP configurations and current output assignments
n CIP configurations are selected using 24 V AC/DC signals
n External and internal configuration and parametrisation (DPV1), as well as fault and
status messages
n Interface: RS 485
n Baud rate: 9.6 kBaud up to 12 MBaud, automatic Baud rate detection
Terminating resistor: 120 W, activatable, cable type A
n
NOTICE!
We reserve the right to make technical modifications to our products in
order to keep them up to date with latest developments.
* On standard units >10 µS/cm after calibration in the flow fitting that is used.
Diagrams
Specific conductivity
1
417101561 Rev. 4-06.2021
P3-horolith 283
P3-horolith BSR
1
2
-
2
106
P3-mip RC
P3-mip SP
Spec. Conductivity æ in [mS/cm]
Concentration in [weight %]
Spec. Conductivity æ of different electrolyte solutions
dependent on
concentration at 20 °C.
