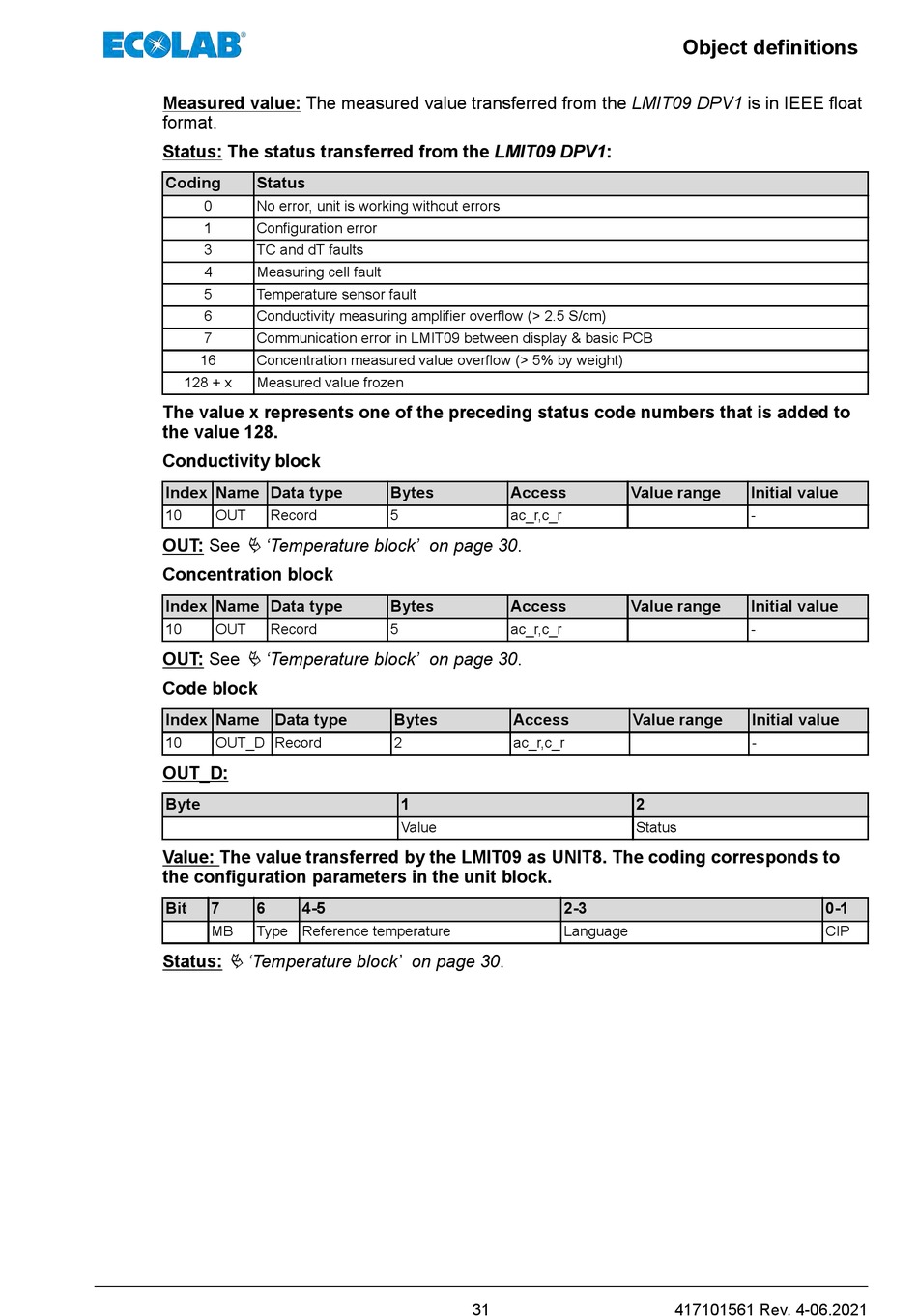

Measured value: The measured value transferred from the LMIT09 DPV1 is in IEEE float
format.
Status: The status transferred from the LMIT09 DPV1:
Coding Status
0 No error, unit is working without errors
1 Configuration error
3 TC and dT faults
4 Measuring cell fault
5 Temperature sensor fault
6 Conductivity measuring amplifier overflow (> 2.5 S/cm)
7 Communication error in LMIT09 between display & basic PCB
16 Concentration measured value overflow (> 5% by weight)
128 + x Measured value frozen
The value x represents one of the preceding status code numbers that is added to
the value 128.
Conductivity block
Index Name Data type
10 OUT Record
OUT: See Ä 'Temperature block' on page 30.
Concentration block
Index Name Data type
10 OUT Record
Ä 'Temperature block' on page 30.
OUT: See
Code block
Index Name Data type
10 OUT_D Record
OUT_D:
Byte
Value: The value transferred by the LMIT09 as UNIT8. The coding corresponds to
the configuration parameters in the unit block.
Bit 7 6 4-5
MB Type Reference temperature
Ä 'Temperature block' on page 30.
Status:
Bytes Access
5 ac_r,c_r
Bytes Access
5 ac_r,c_r
Bytes Access
2 ac_r,c_r
1
Value
Language
31
Object definitions
Value range
Value range
Value range
2
Status
2-3
417101561 Rev. 4-06.2021
Initial value
-
Initial value
-
Initial value
-
0-1
CIP
