Operation
Table sampling point (Number of Points)

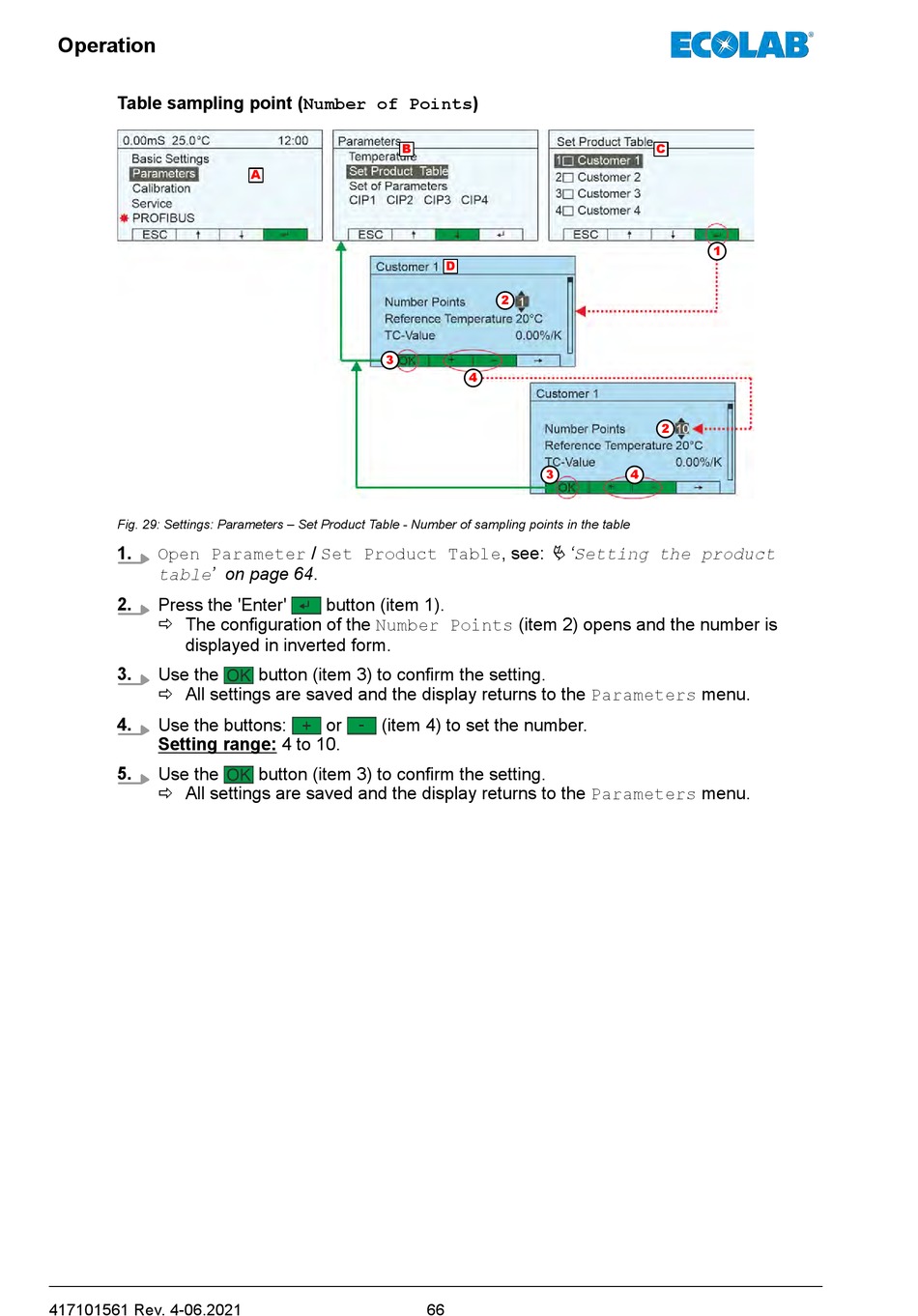

Fig. 29: Settings: Parameters – Set Product Table - Number of sampling points in the table
1. Open Parameter / Set Product Table, see:
table' on page 64.
2.
Press the 'Enter'
ð The configuration of the Number Points (item 2) opens and the number is
displayed in inverted form.
3.
Use the
ð All settings are saved and the display returns to the Parameters menu.
4.
Use the buttons:
Setting range: 4 to 10.
5.
Use the
ð All settings are saved and the display returns to the Parameters menu.
417101561 Rev. 4-06.2021
B
A
3
button (item 1).
button (item 3) to confirm the setting.
or (item 4) to set the number.
button (item 3) to confirm the setting.
D
2
4
3
Ä 'Setting the product
66
C
1
2
4
