Operation
8.7

Select

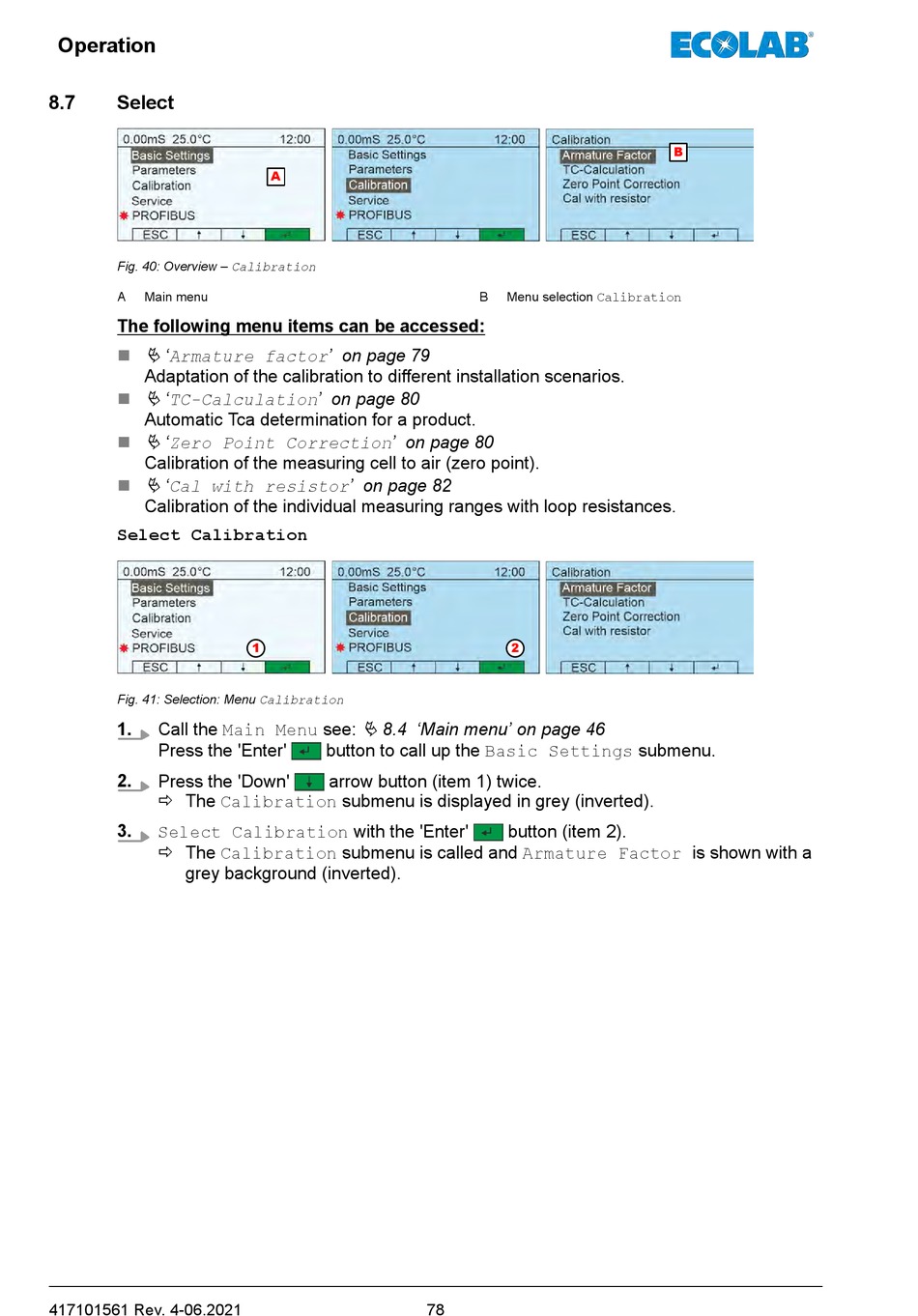

Fig. 40: Overview – Calibration
A Main menu
The following menu items can be accessed:
Ä 'Armature factor' on page 79
n
Adaptation of the calibration to different installation scenarios.
Ä 'TC-Calculation' on page 80
n
Automatic Tca determination for a product.
n Ä 'Zero Point Correction' on page 80
Calibration of the measuring cell to air (zero point).
n Ä 'Cal with resistor' on page 82
Calibration of the individual measuring ranges with loop resistances.
Select Calibration
Fig. 41: Selection: Menu Calibration
1. Call the Main Menu see:
Press the 'Enter'
2. Press the 'Down'
ð The Calibration submenu is displayed in grey (inverted).
3. Select Calibration with the 'Enter'
ð The Calibration submenu is called and Armature Factor is shown with a
grey background (inverted).
