Operation
8.4

Main menu

B

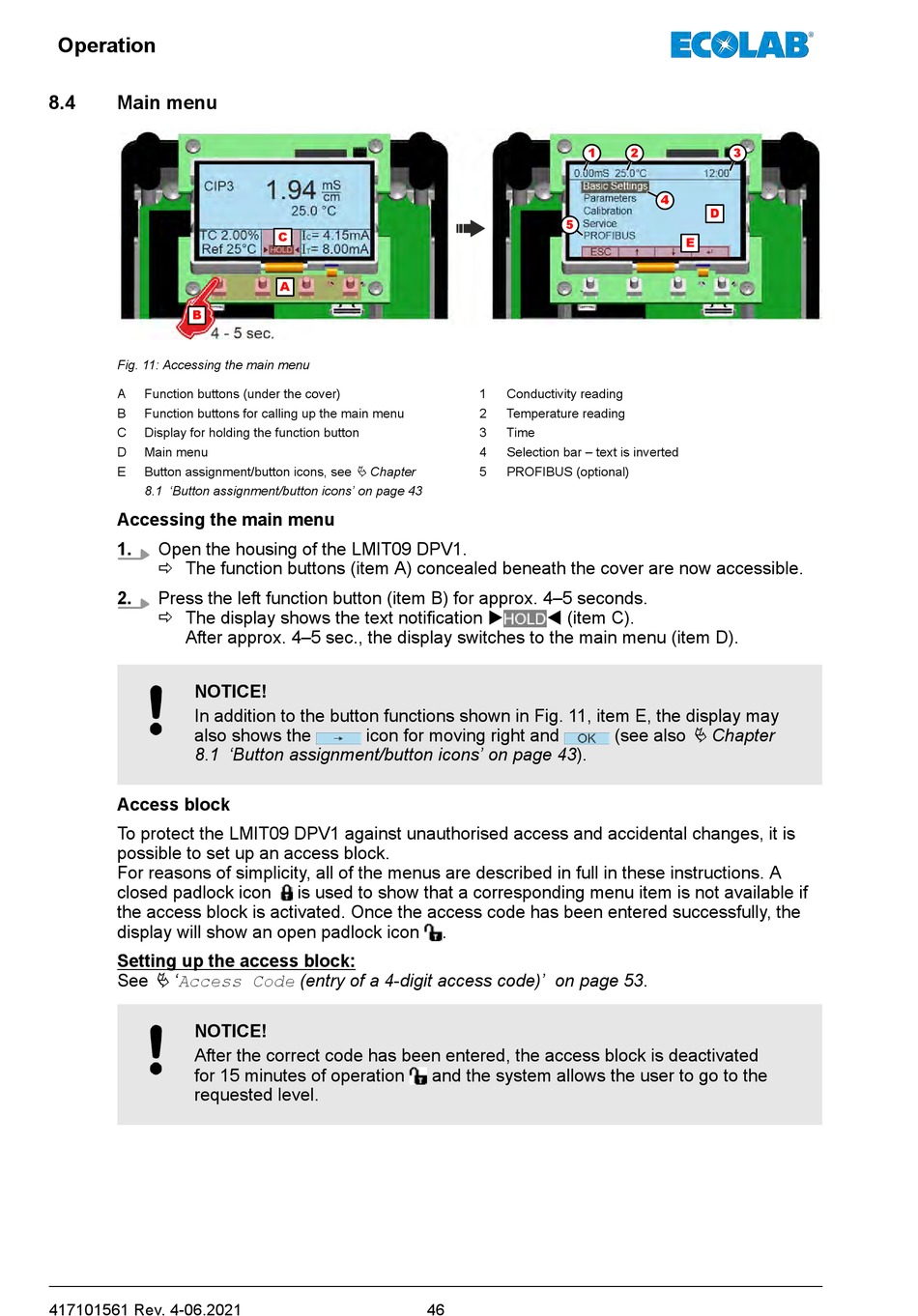

Fig. 11: Accessing the main menu
A Function buttons (under the cover)
B Function buttons for calling up the main menu
C Display for holding the function button
D Main menu
E Button assignment/button icons, see
8.1 'Button assignment/button icons' on page 43
Accessing the main menu
1. Open the housing of the LMIT09 DPV1.
ð The function buttons (item A) concealed beneath the cover are now accessible.
2. Press the left function button (item B) for approx. 4–5 seconds.
ð The display shows the text notification u
After approx. 4–5 sec., the display switches to the main menu (item D).
NOTICE!
In addition to the button functions shown in Fig. 11, item E, the display may
also shows the
8.1 'Button assignment/button icons' on page 43).
Access block
To protect the LMIT09 DPV1 against unauthorised access and accidental changes, it is
possible to set up an access block.
For reasons of simplicity, all of the menus are described in full in these instructions. A
closed padlock icon
the access block is activated. Once the access code has been entered successfully, the
display will show an open padlock icon
Setting up the access block:
Ä 'Access Code (entry of a 4-digit access code)' on page 53.
See
NOTICE!
After the correct code has been entered, the access block is deactivated
for 15 minutes of operation
requested level.
417101561 Rev. 4-06.2021
C
A
Ä Chapter
icon for moving right and
is used to show that a corresponding menu item is not available if
.
and the system allows the user to go to the
46
1 2
5
1 Conductivity reading
2 Temperature reading
3 Time
4 Selection bar – text is inverted
5 PROFIBUS (optional)
t (item C).
(see also
3
4
D
E
Ä Chapter
