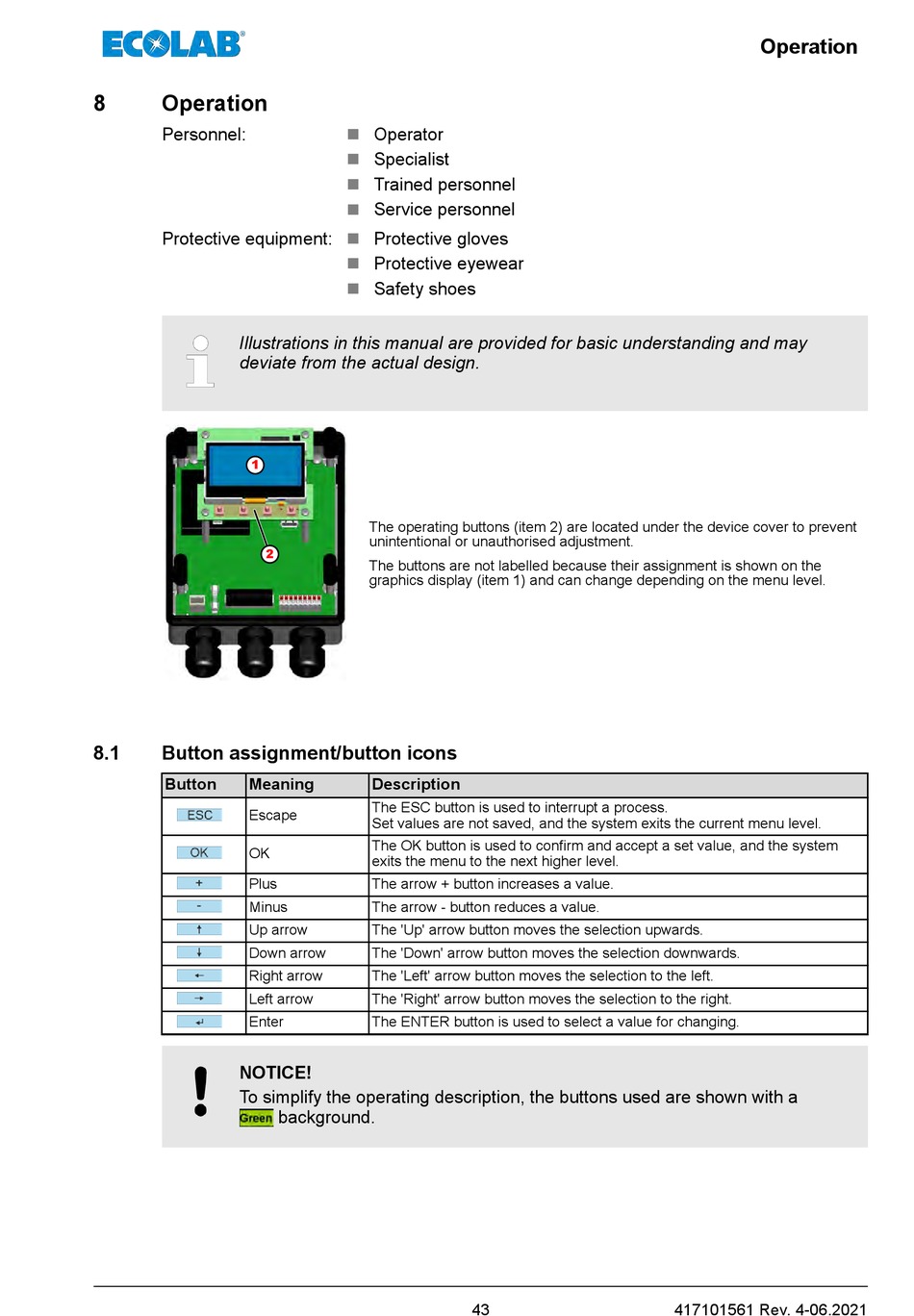

8

Operation

Personnel:
Protective equipment:
Illustrations in this manual are provided for basic understanding and may
deviate from the actual design.
1
2
8.1

Button assignment/button icons

Button Meaning
Escape
OK
Plus
Minus
Up arrow
Down arrow
Right arrow
Left arrow
Enter
NOTICE!
To simplify the operating description, the buttons used are shown with a
n Operator
n Specialist
n Trained personnel
n Service personnel
n Protective gloves
n Protective eyewear
n Safety shoes
The operating buttons (item 2) are located under the device cover to prevent
unintentional or unauthorised adjustment.
The buttons are not labelled because their assignment is shown on the
graphics display (item 1) and can change depending on the menu level.
Description
The ESC button is used to interrupt a process.
Set values are not saved, and the system exits the current menu level.
The OK button is used to confirm and accept a set value, and the system
exits the menu to the next higher level.
The arrow + button increases a value.
The arrow - button reduces a value.
The 'Up' arrow button moves the selection upwards.
The 'Down' arrow button moves the selection downwards.
The 'Left' arrow button moves the selection to the left.
The 'Right' arrow button moves the selection to the right.
The ENTER button is used to select a value for changing.
background.
43
Operation
417101561 Rev. 4-06.2021
