Temperature (current range assignment)
NOTICE!
In the Temperature menu, you can adjust the assignment of the
temperature output current (0/4 mA and 20 mA) (zero-point suppression
and range span). This enables to temperature output current to be adjusted
to the required operating conditions.
C
3
4

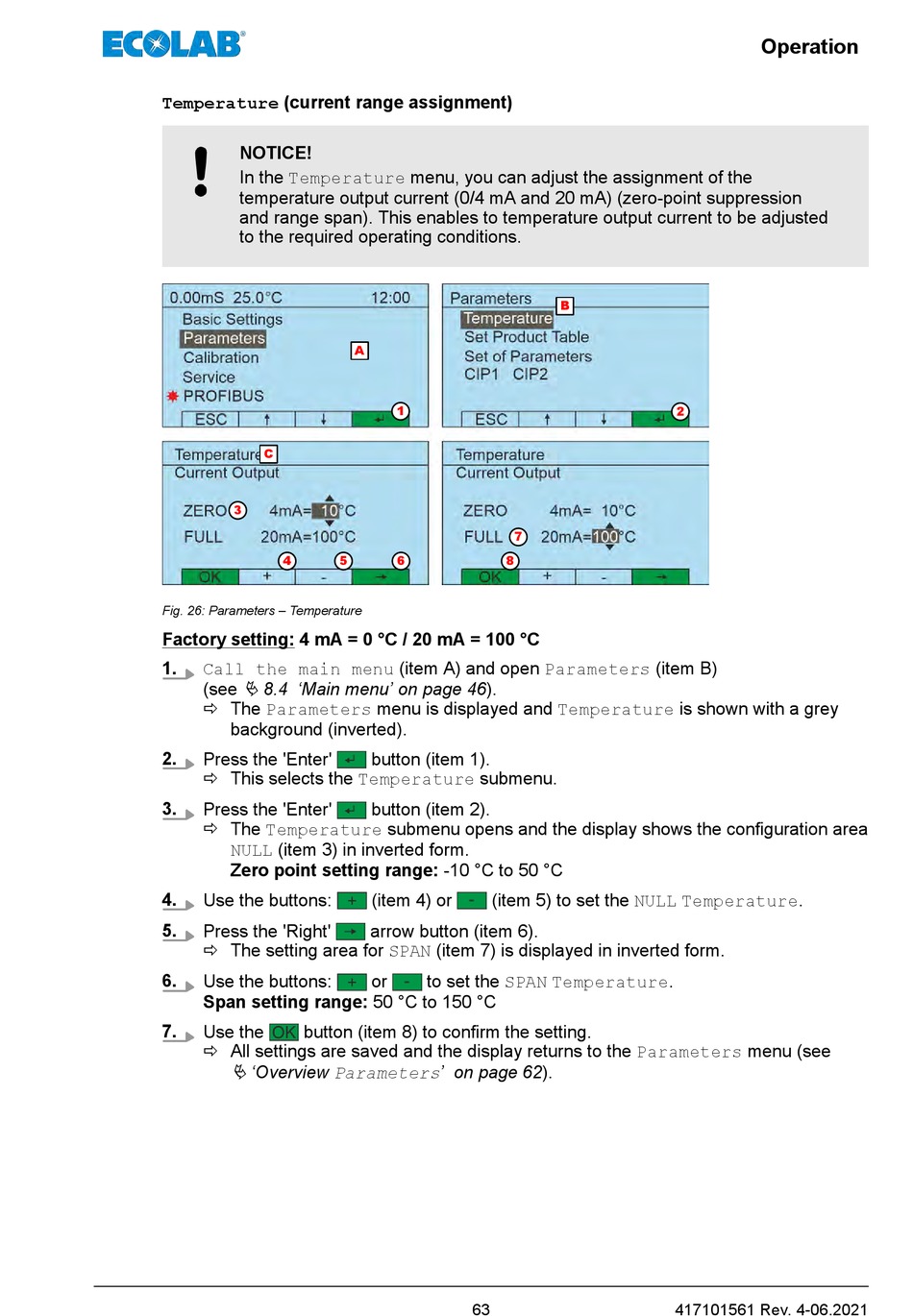

Fig. 26: Parameters – Temperature
Factory setting: 4 mA = 0 °C / 20 mA = 100 °C
1. Call the main menu (item A) and open Parameters (item B)
(see Ä 8.4 'Main menu' on page 46).
ð The Parameters menu is displayed and Temperature is shown with a grey
background (inverted).
2.
Press the 'Enter'
ð This selects the Temperature submenu.
3.
Press the 'Enter'
ð The Temperature submenu opens and the display shows the configuration area
NULL (item 3) in inverted form.
Zero point setting range: -10 °C to 50 °C
4.
Use the buttons:
5.
Press the 'Right'
ð The setting area for SPAN (item 7) is displayed in inverted form.
6.
Use the buttons:
Span setting range: 50 °C to 150 °C
7.
Use the button (item 8) to confirm the setting.
ð All settings are saved and the display returns to the Parameters menu (see
Ä 'Overview Parameters' on page 62).
A
1
5 6 8
button (item 1).
button (item 2).
(item 4) or (item 5) to set the NULL Temperature.
arrow button (item 6).
or to set the SPAN Temperature.
63
B
2
7
