Setting the Reference Temperature for the relevant customer product
A
D

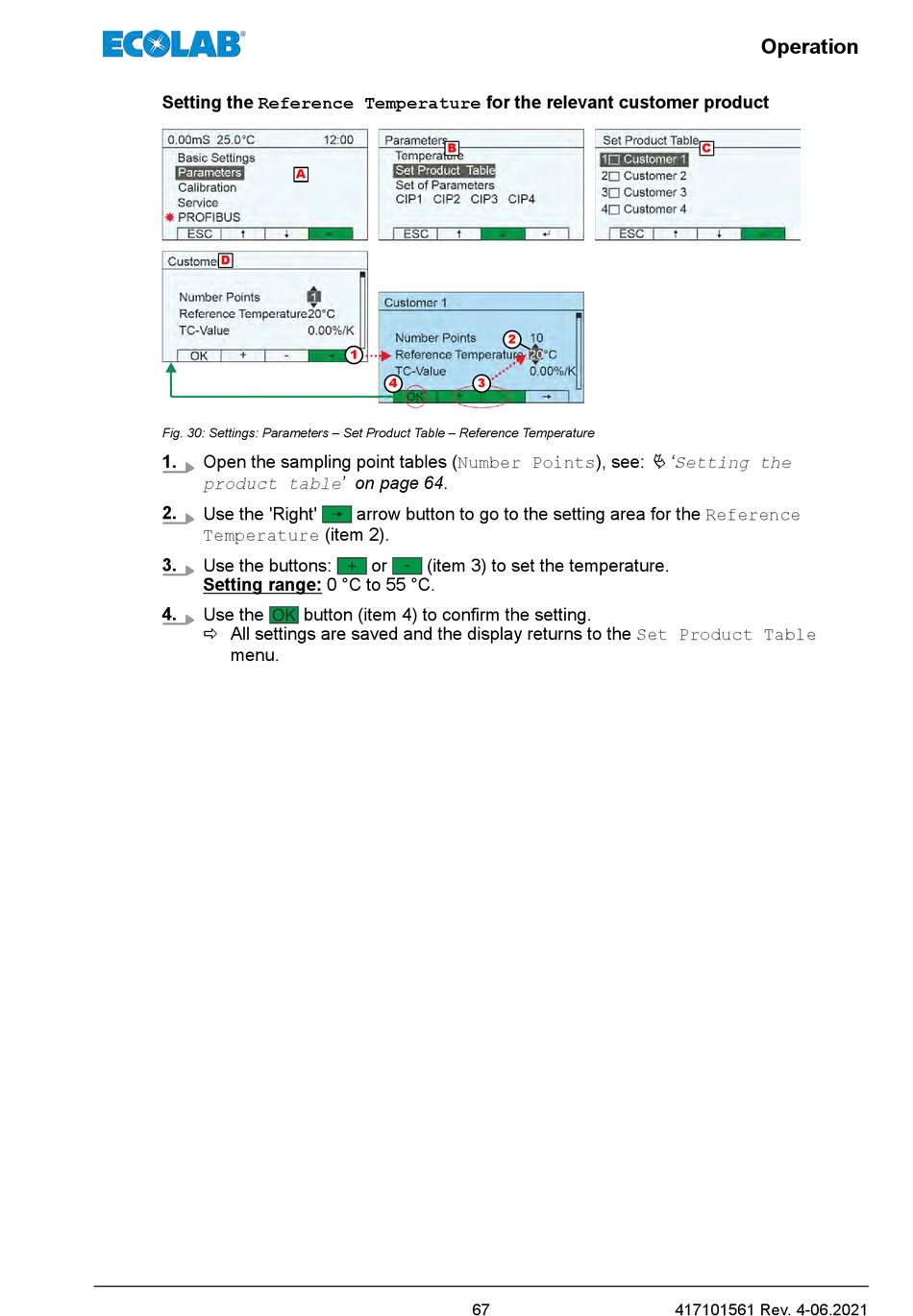

Fig. 30: Settings: Parameters – Set Product Table – Reference Temperature
1. Open the sampling point tables (Number Points), see:
product table' on page 64.
2.
Use the 'Right'
Temperature (item 2).
3. Use the buttons:
Setting range: 0 °C to 55 °C.
4. Use the button (item 4) to confirm the setting.
ð All settings are saved and the display returns to the Set Product Table
menu.
B
2
1
4 3
arrow button to go to the setting area for the Reference
or (item 3) to set the temperature.
67
Operation
C
Ä 'Setting the
