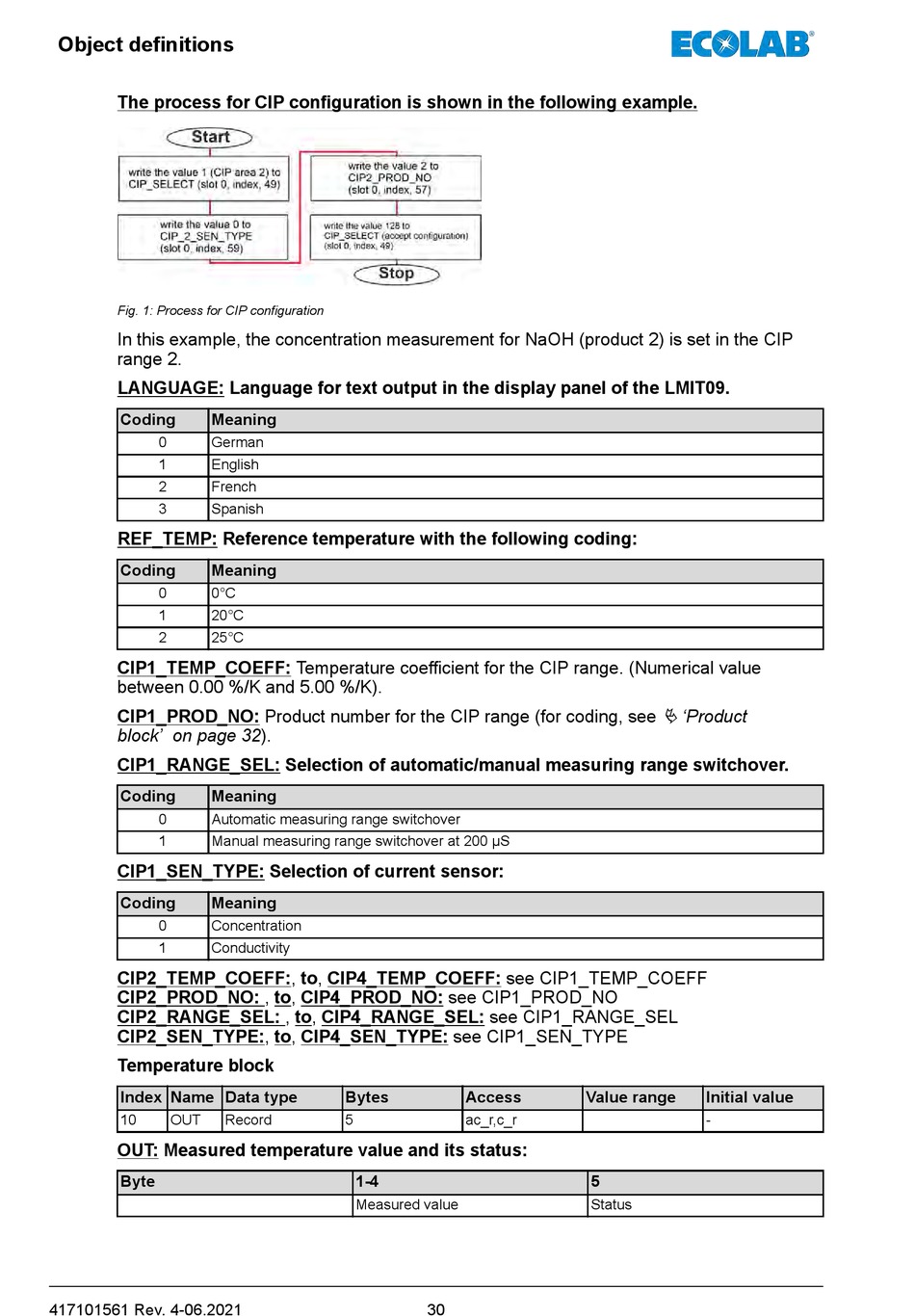

Object definitions
The process for CIP configuration is shown in the following example.
Fig. 1: Process for CIP configuration
In this example, the concentration measurement for NaOH (product 2) is set in the CIP
range 2.
LANGUAGE: Language for text output in the display panel of the LMIT09.
Coding Meaning
0 German
1 English
2 French
3 Spanish
REF_TEMP: Reference temperature with the following coding:
Coding Meaning
0 0°C
1 20°C
2 25°C
CIP1_TEMP_COEFF: Temperature coefficient for the CIP range. (Numerical value
between 0.00 %/K and 5.00 %/K).
CIP1_PROD_NO: Product number for the CIP range (for coding, see
block' on page 32).
CIP1_RANGE_SEL: Selection of automatic/manual measuring range switchover.
Coding Meaning
0 Automatic measuring range switchover
1 Manual measuring range switchover at 200 µS
CIP1_SEN_TYPE: Selection of current sensor:
Coding Meaning
0 Concentration
1 Conductivity
CIP2_TEMP_COEFF:, to, CIP4_TEMP_COEFF: see CIP1_TEMP_COEFF
CIP2_PROD_NO: , to, CIP4_PROD_NO: see CIP1_PROD_NO
CIP2_RANGE_SEL: , to, CIP4_RANGE_SEL: see CIP1_RANGE_SEL
CIP2_SEN_TYPE:, to, CIP4_SEN_TYPE: see CIP1_SEN_TYPE
Temperature block
Index Name Data type
10 OUT
OUT: Measured temperature value and its status:
Byte
417101561 Rev. 4-06.2021
Bytes
Record 5
1-4
Measured value
Access Value range
ac_r,c_r
5
Status
30
Ä 'Product
Initial value
-
