Selecting the set of parameters for the CIP range (in conjunction with the
CIP function)
NOTICE!
In conjunction with the CIP function, you can set a separate Set of
Parameters for each CIP range. Without the CIP function, only one set
of parameters is set up.
A

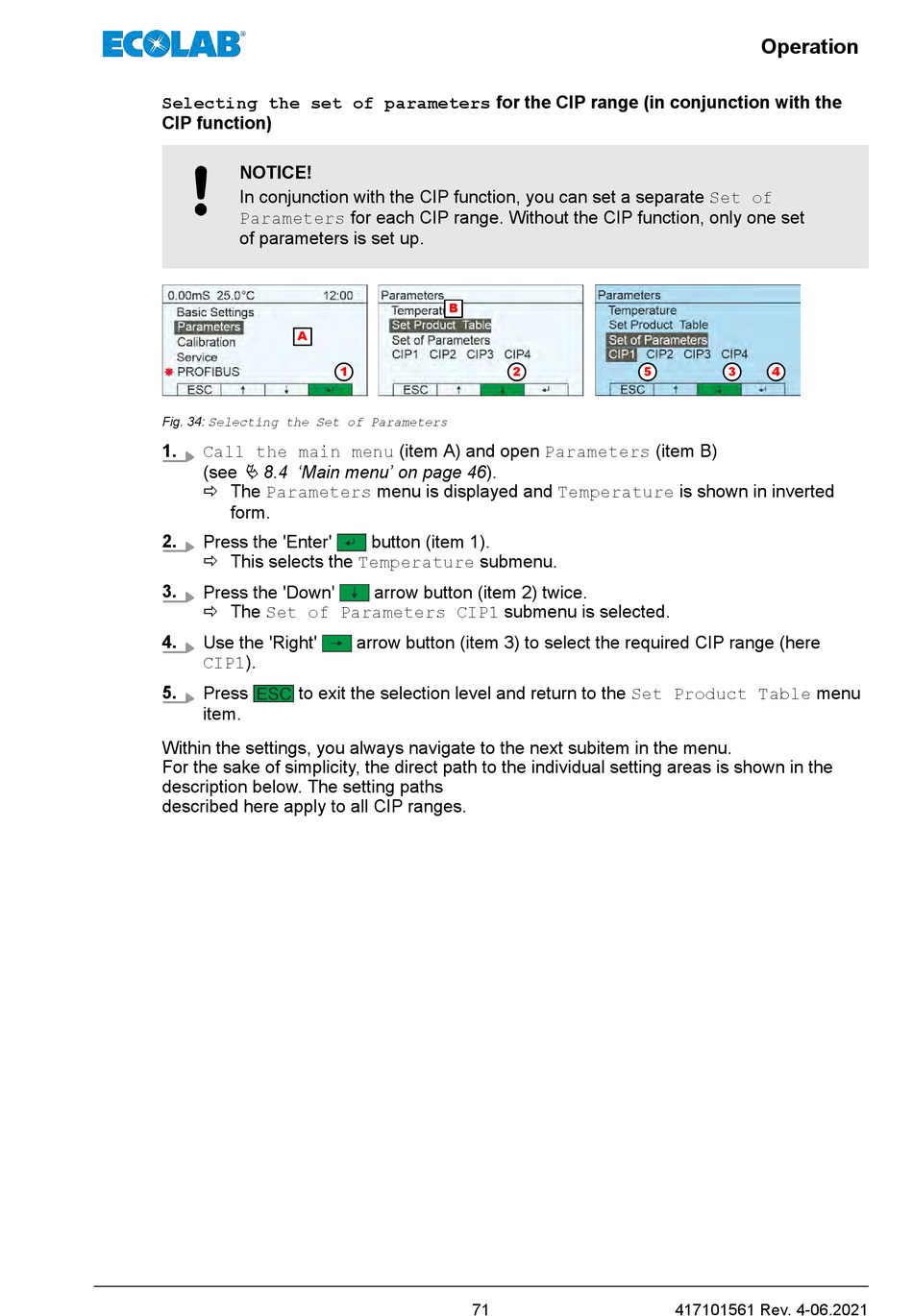

Fig. 34: Selecting the Set of Parameters
1. Call the main menu (item A) and open Parameters (item B)
Ä 8.4 'Main menu' on page 46).
(see
ð The Parameters menu is displayed and Temperature is shown in inverted
form.
2.
Press the 'Enter'
ð This selects the Temperature submenu.
3. Press the 'Down'
ð The Set of Parameters CIP1 submenu is selected.
4. Use the 'Right'
CIP1).
5. Press to exit the selection level and return to the Set Product Table menu
item.
Within the settings, you always navigate to the next subitem in the menu.
For the sake of simplicity, the direct path to the individual setting areas is shown in the
description below. The setting paths
described here apply to all CIP ranges.
B
1 2
button (item 1).
arrow button (item 2) twice.
arrow button (item 3) to select the required CIP range (here
71
Operation
5 3 4
417101561 Rev. 4-06.2021
