Operation

TC-Value (only in conjunction with conductivity)

Setting range: 0 to 5.00 %/K
The temperature coefficient describes the change in conductivity that results from
changes in temperature relative to a fixed reference temperature.
The temperature compensation needs to be adjusted because the conductivity of the
material being measured is strongly influenced by the temperature, among other things.
Since, in industrial applications, conductivity measurements are often used as a tool for
determining the concentration of solutions, and therefore the actual conductivity at a given
temperature is not necessarily of interest, the conductivity is measured in relation to a
reference temperature of e.g. 20 °C.
An option for automatic determination of the temperature coefficient is described under
Ä 'TC-Calculation' on page 80.
NOTICE!
In conjunction with concentration measurements, the temperature
coefficient is saved together with the product table.

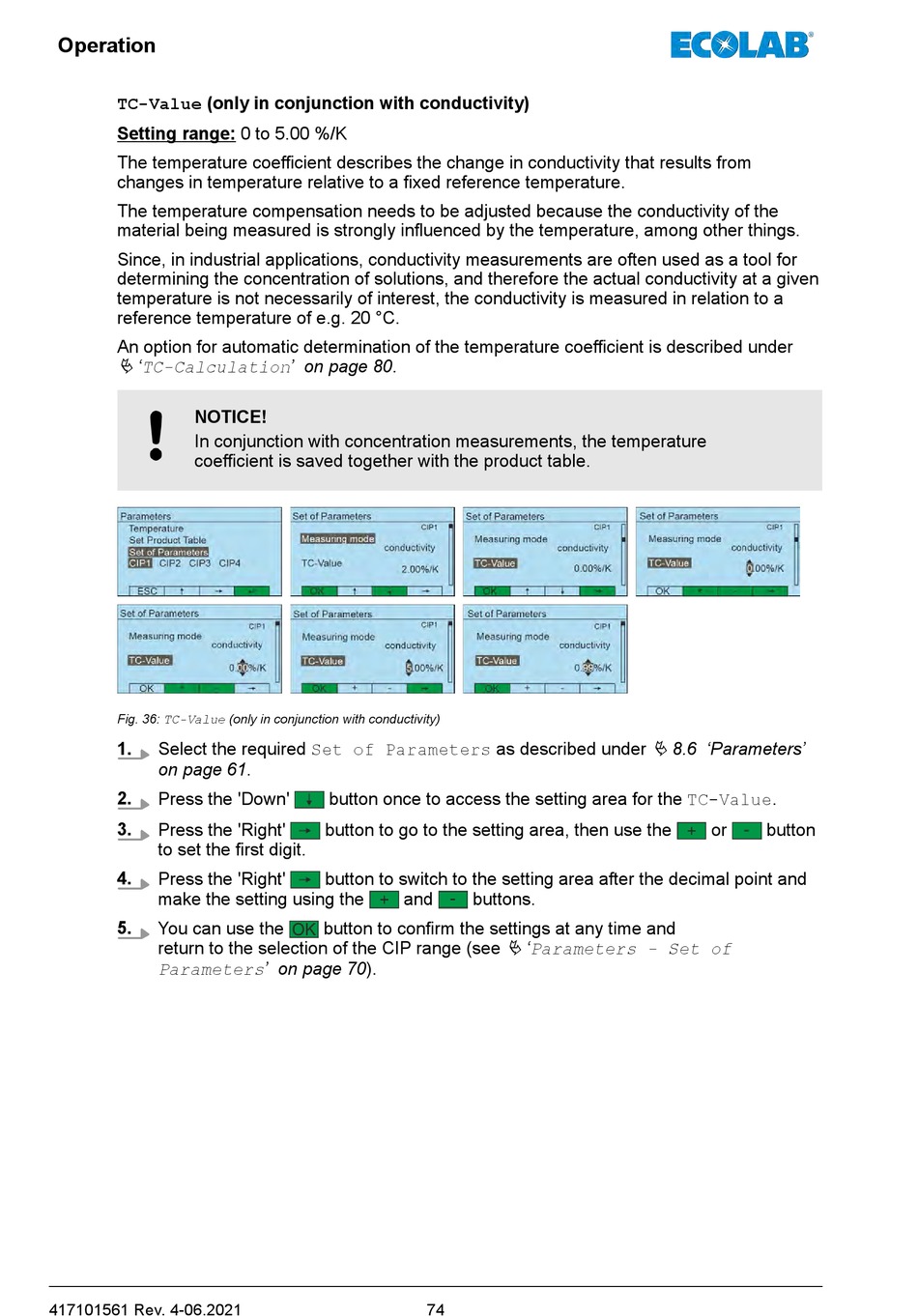

Fig. 36: TC-Value (only in conjunction with conductivity)
1. Select the required Set of Parameters as described under
on page 61.
2.
Press the 'Down'
3.
Press the 'Right'
to set the first digit.
4. Press the 'Right'
make the setting using the
5.
You can use the
return to the selection of the CIP range (see
Parameters' on page 70).
417101561 Rev. 4-06.2021
button once to access the setting area for the TC-Value.
button to go to the setting area, then use the
button to switch to the setting area after the decimal point and
and buttons.
button to confirm the settings at any time and
74
Ä 8.6 'Parameters'
Ä 'Parameters - Set of
or button
