Operation
Alarm Relay (Response in the event of an alarm (inactive or active))
C

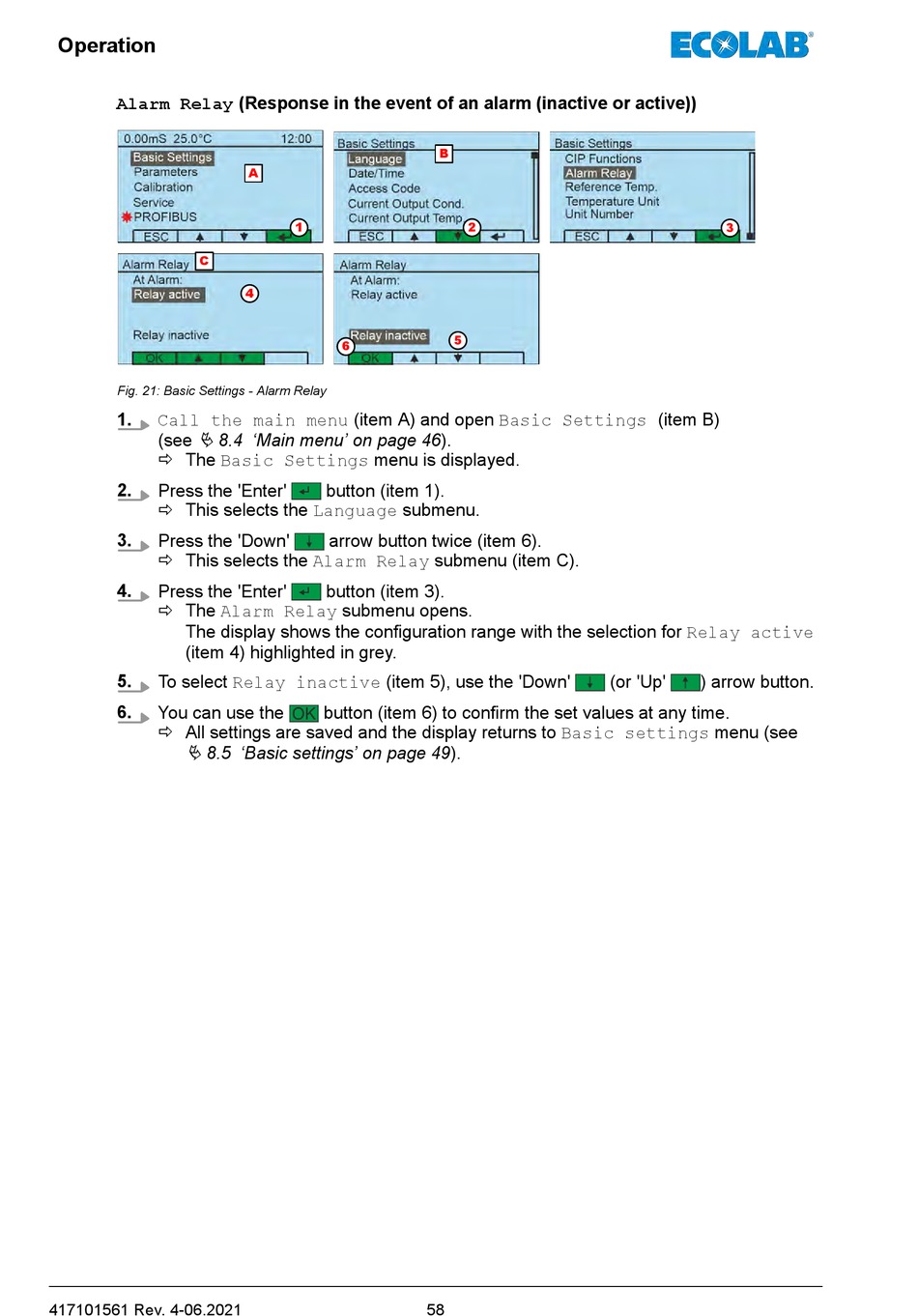

Fig. 21: Basic Settings - Alarm Relay
1. Call the main menu (item A) and open Basic Settings (item B)
Ä 8.4 'Main menu' on page 46).
(see
ð The Basic Settings menu is displayed.
2. Press the 'Enter'
ð This selects the Language submenu.
3. Press the 'Down'
ð This selects the Alarm Relay submenu (item C).
4.
Press the 'Enter'
ð The Alarm Relay submenu opens.
The display shows the configuration range with the selection for Relay active
(item 4) highlighted in grey.
5. To select Relay inactive (item 5), use the 'Down'
6. You can use the
ð All settings are saved and the display returns to Basic settings menu (see
Ä 8.5 'Basic settings' on page 49).
417101561 Rev. 4-06.2021
A
1
4
6
button (item 1).
arrow button twice (item 6).
button (item 3).
button (item 6) to confirm the set values at any time.
B
2
5
58
3
(or 'Up' ) arrow button.
