Object definitions

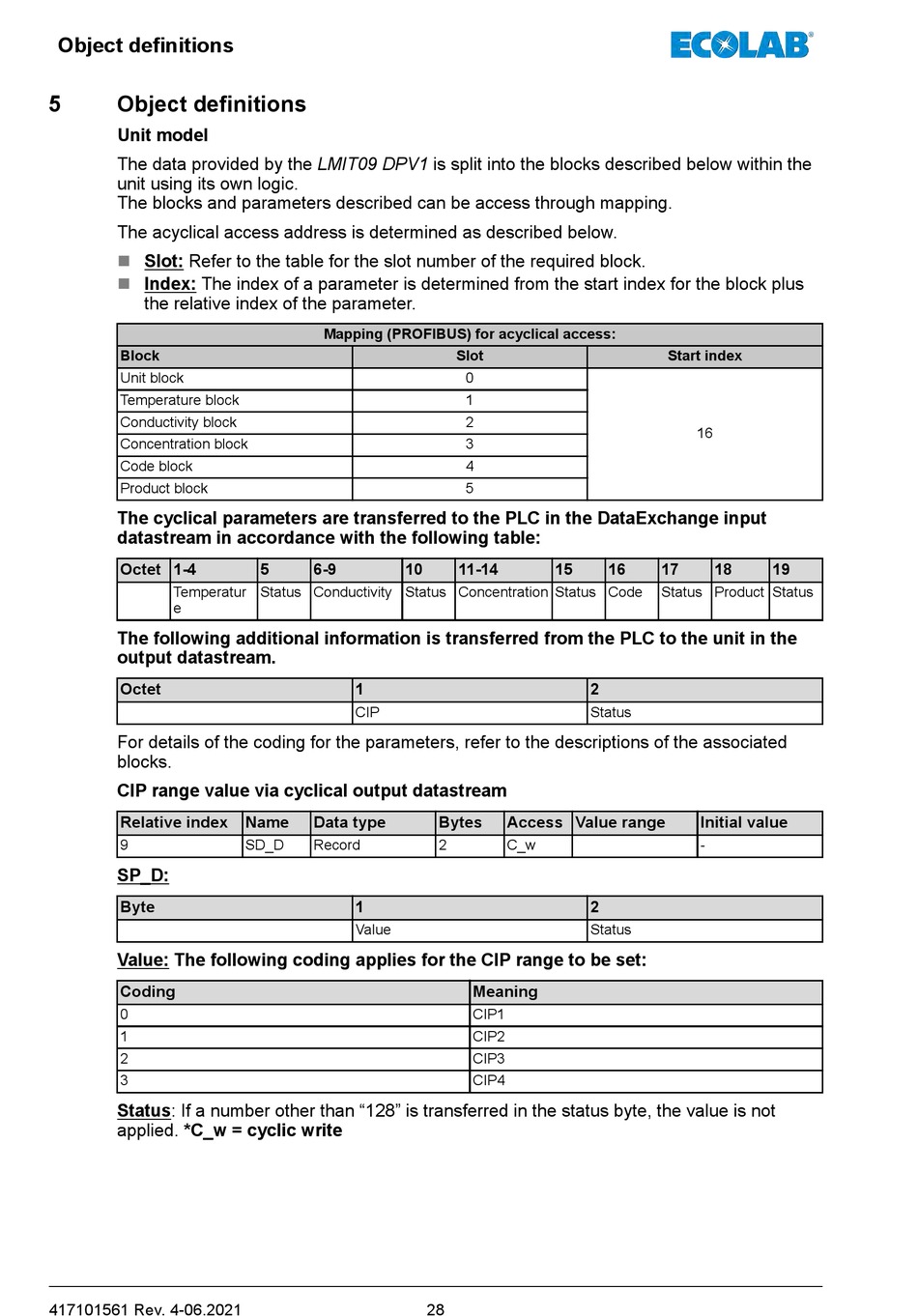

5 Object definitions
Unit model
The data provided by the LMIT09 DPV1 is split into the blocks described below within the
unit using its own logic.
The blocks and parameters described can be access through mapping.
The acyclical access address is determined as described below.
n Slot: Refer to the table for the slot number of the required block.
n Index: The index of a parameter is determined from the start index for the block plus
the relative index of the parameter.
Block
Unit block
Temperature block
Conductivity block
Concentration block
Code block
Product block
The cyclical parameters are transferred to the PLC in the DataExchange input
datastream in accordance with the following table:
Octet 1-4
Temperatur
e
The following additional information is transferred from the PLC to the unit in the
output datastream.
Octet
For details of the coding for the parameters, refer to the descriptions of the associated
blocks.
CIP range value via cyclical output datastream
Relative index
9
SP_D:
Byte
Value: The following coding applies for the CIP range to be set:
Coding
0
1
2
3
Status: If a number other than "128" is transferred in the status byte, the value is not
applied. *C_w = cyclic write
417101561 Rev. 4-06.2021
Mapping (PROFIBUS) for acyclical access:
5 6-9 10
Status Conductivity Status Concentration Status Code
1
CIP
Name Data type
SD_D Record
1
Value
Slot
0
1
2
3
4
5
11-14 15
2
Status
Bytes Access Value range
2 C_w
2
Status
Meaning
CIP1
CIP2
CIP3
CIP4
28
Start index
16
16 17 18 19
Status Product Status
Initial value
-
