Installation
Installing the clamping ring version
1.
Insert the transducer into the flow fitting or welded-on ring and tighten using the
clamping rings.
2.
Establish the equipotential bonding between the wall-mounted transmitter housing
(stud bolt M4) and the piping system (e.g. clamping ring screw on the transducer).
Installing the flange version
1.
Insert the transmitter with integrated transducer into the flow fitting or welded-on
flange in the case of tank wall installation and secure with 4 screws.
2.
Establish the equipotential bonding between the wall-mounted transmitter housing
(stud bolt M4) and the piping system (e.g. flange screw on the transducer).
Item Designation
1a
1 x Flow housing DN 40 (clamping ring attachment)
1b
2
2 x Reduction d 42,6-26,9 mm concentric, V2A
3
4 x Weldable connecting sleeve, G ½, V2A
4
4 x Cutting ring screw connection, G ½ for pipe 12 x 1.5
5
4 x Pipe 12 x 1.5 mm V2A
6
2 x Ball shut-off valve, G ½, V4A
7
2 x Double nipple, ½, V2A
8
1 x Teflon sealing tape (roll)
Description
Process controller: (2-point controller for maintaining a constant concentration via conductivity
measurements)
PR 01- controller 230 V AC
PR 01- controller 115 V AC
PR 01- controller 24 V AC
Limit monitor SPC 3: (Continuous monitoring of three independently set limit values)
SPC3, 230 V AC
SPC3, 24 V DC
SPC3, 24 V AC
SPC3, 115 V AC
Measured value display PD 01 (External display of measured values for conductivity and temperature)
PD 01, 230 V AC
PD 01, 115 V AC
417101561 Rev. 4-06.2021

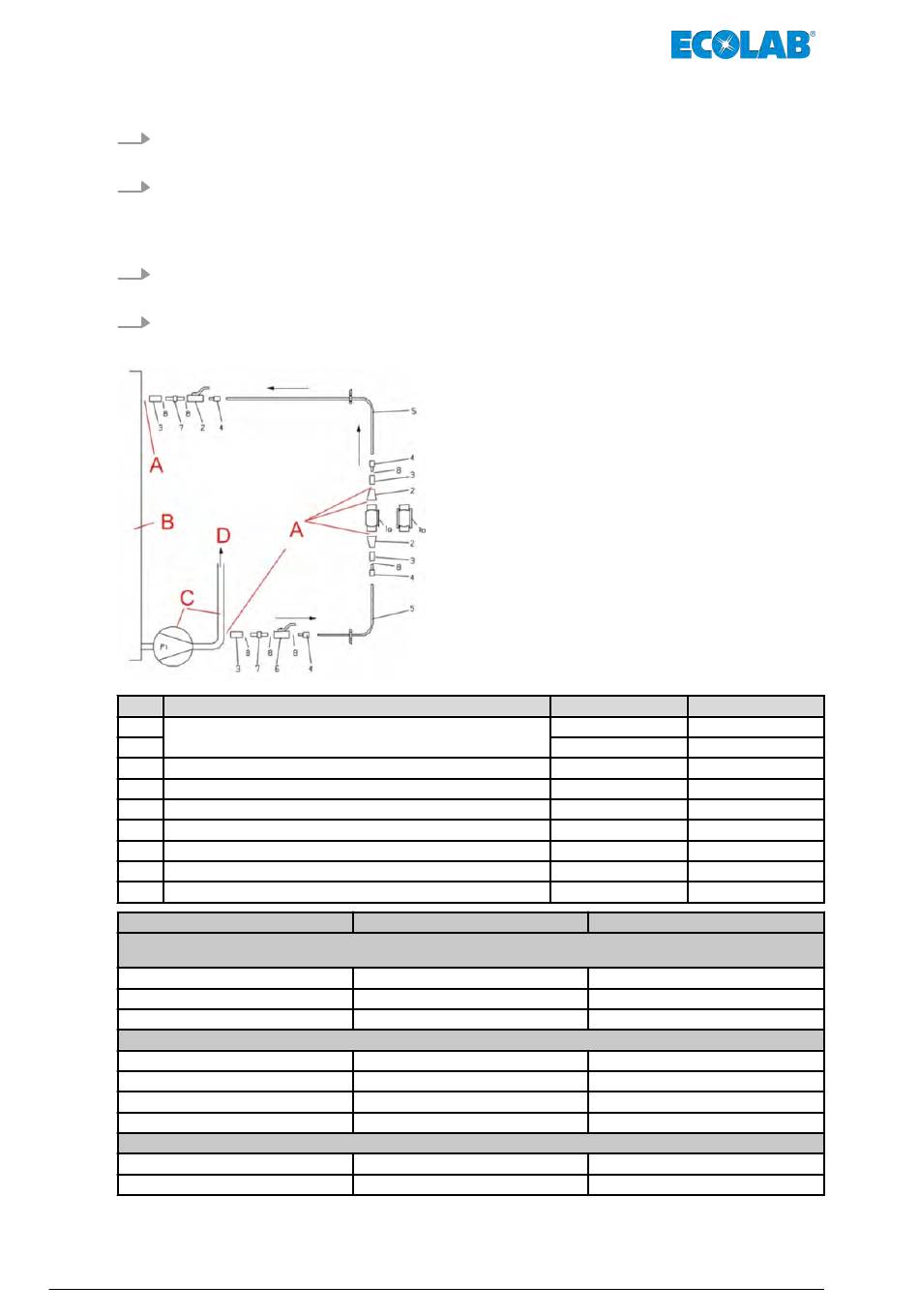

Layout of the measuring point in bypass
A
To be welded during assembly
B
Stackable solution tank
C
Delivery pump and pipes, provided on-site
D
Cleaning circuit
Art. no.
187101
187102
187103
187192
187191
187194
187193
187201
187202
36
Art. no.
EBS No.
415501223
10001735
415501261
on request
415508884
on request
415203424
on request
415101885
on request
415031164
on request
415502024
10006957
415203604
10001947
417100813
10000597
EBS No.
10001436
on request
on request
on request
on request
on request
on request
on request
on request
