SPAN - measuring range span (Conductivity)

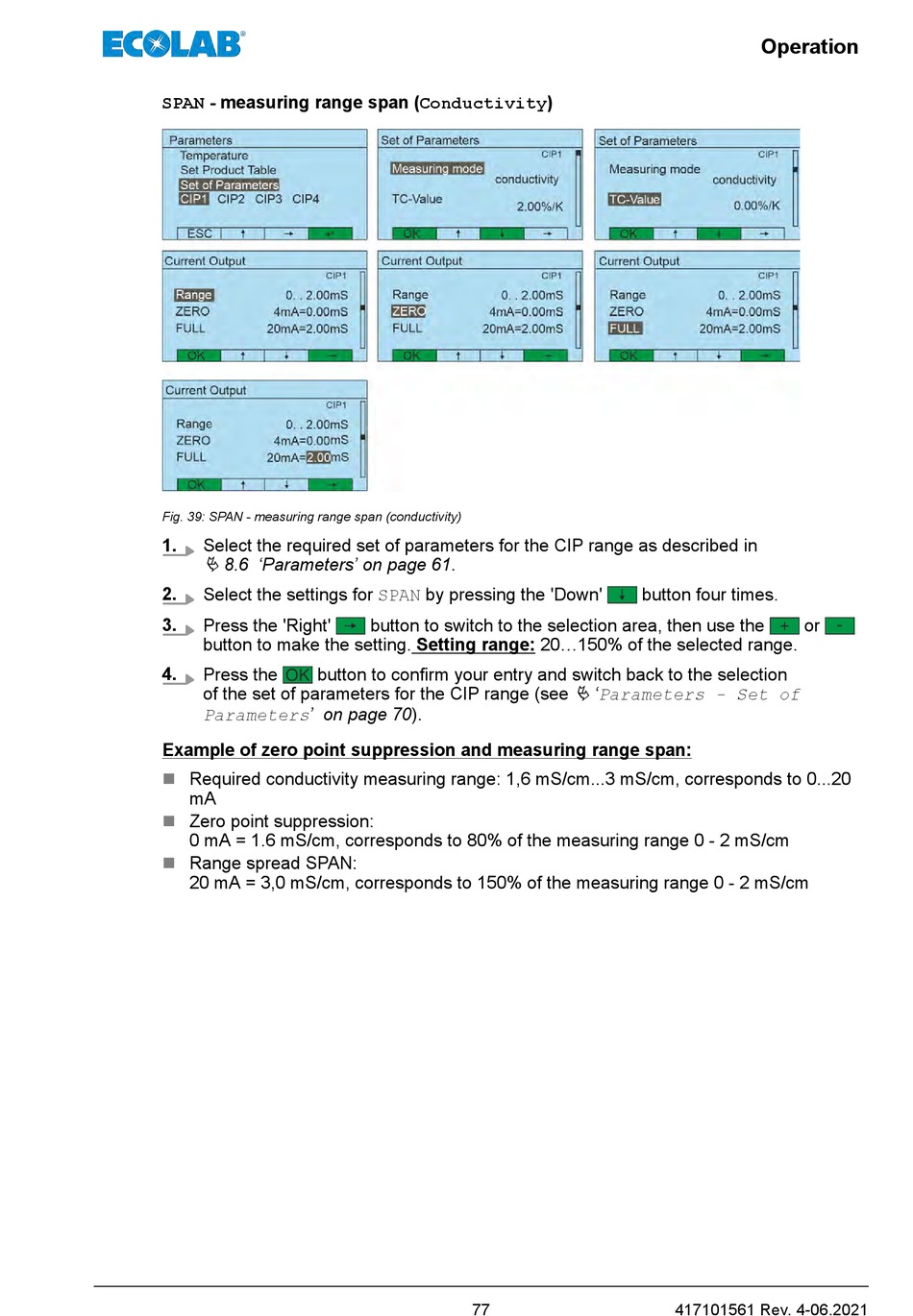

Fig. 39: SPAN - measuring range span (conductivity)
1.
Select the required set of parameters for the CIP range as described in
Ä 8.6 'Parameters' on page 61.
2.
Select the settings for SPAN by pressing the 'Down'
3.
Press the 'Right'
button to make the setting. Setting range: 20...150% of the selected range.
4.
Press the
button to confirm your entry and switch back to the selection
of the set of parameters for the CIP range (see
Parameters' on page 70).
Example of zero point suppression and measuring range span:
n
Required conductivity measuring range: 1,6 mS/cm...3 mS/cm, corresponds to 0...20
mA
n
Zero point suppression:
0 mA = 1.6 mS/cm, corresponds to 80% of the measuring range 0 - 2 mS/cm
Range spread SPAN:
n
20 mA = 3,0 mS/cm, corresponds to 150% of the measuring range 0 - 2 mS/cm
button to switch to the selection area, then use the
77
button four times.
Ä 'Parameters - Set of
417101561 Rev. 4-06.2021
