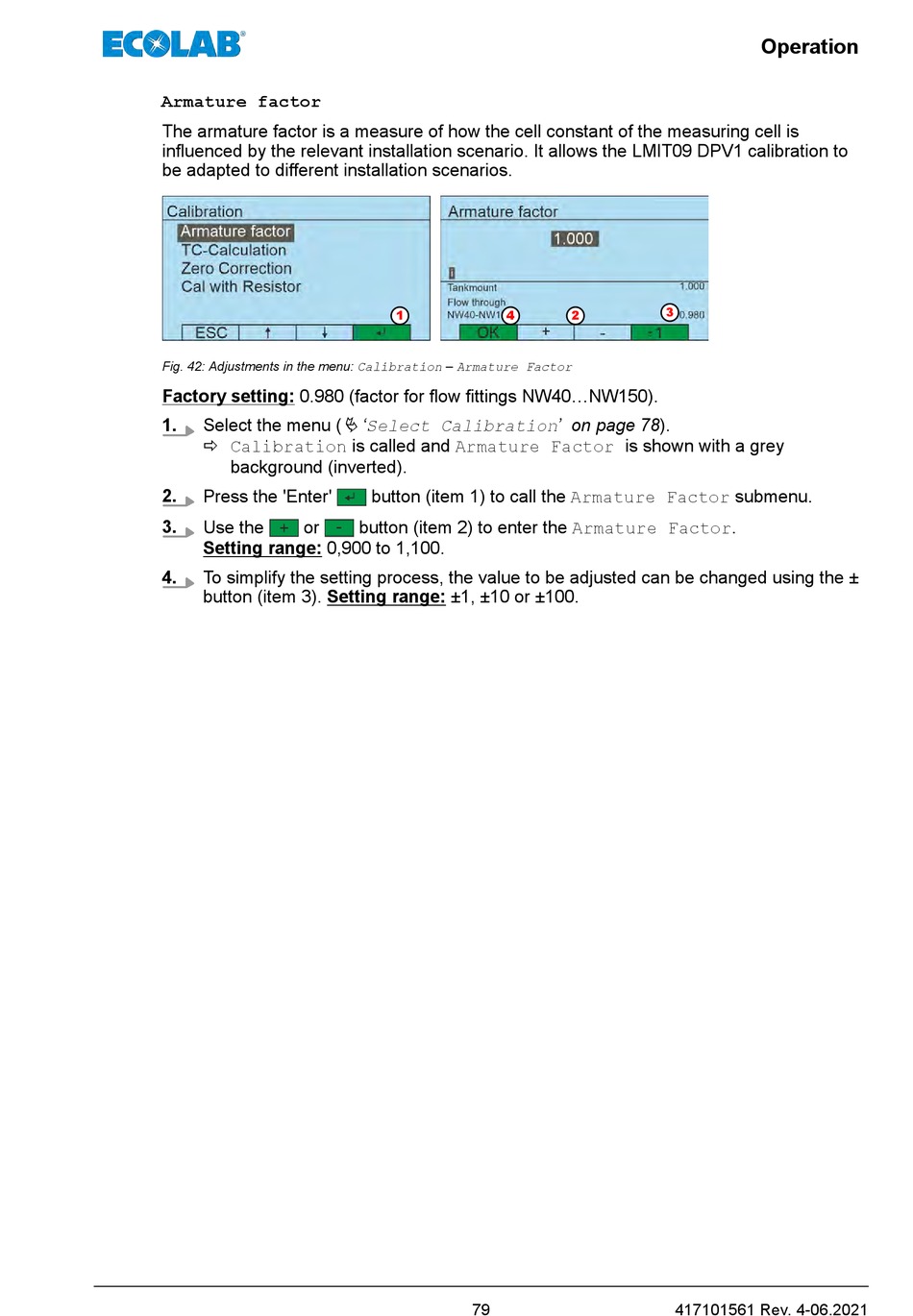

Armature factor
The armature factor is a measure of how the cell constant of the measuring cell is
influenced by the relevant installation scenario. It allows the LMIT09 DPV1 calibration to
be adapted to different installation scenarios.
Fig. 42: Adjustments in the menu: Calibration – Armature Factor
Factory setting: 0.980 (factor for flow fittings NW40...NW150).
1.
Select the menu (
ð Calibration is called and Armature Factor is shown with a grey
background (inverted).
2.
Press the 'Enter'
3.
Use the
or
Setting range: 0,900 to 1,100.
4.
To simplify the setting process, the value to be adjusted can be changed using the ±
button (item 3). Setting range: ±1, ±10 or ±100.
1
4
Ä 'Select Calibration' on page 78).
button (item 1) to call the Armature Factor submenu.
button (item 2) to enter the Armature Factor.
79
3
2
417101561 Rev. 4-06.2021
Operation
