9

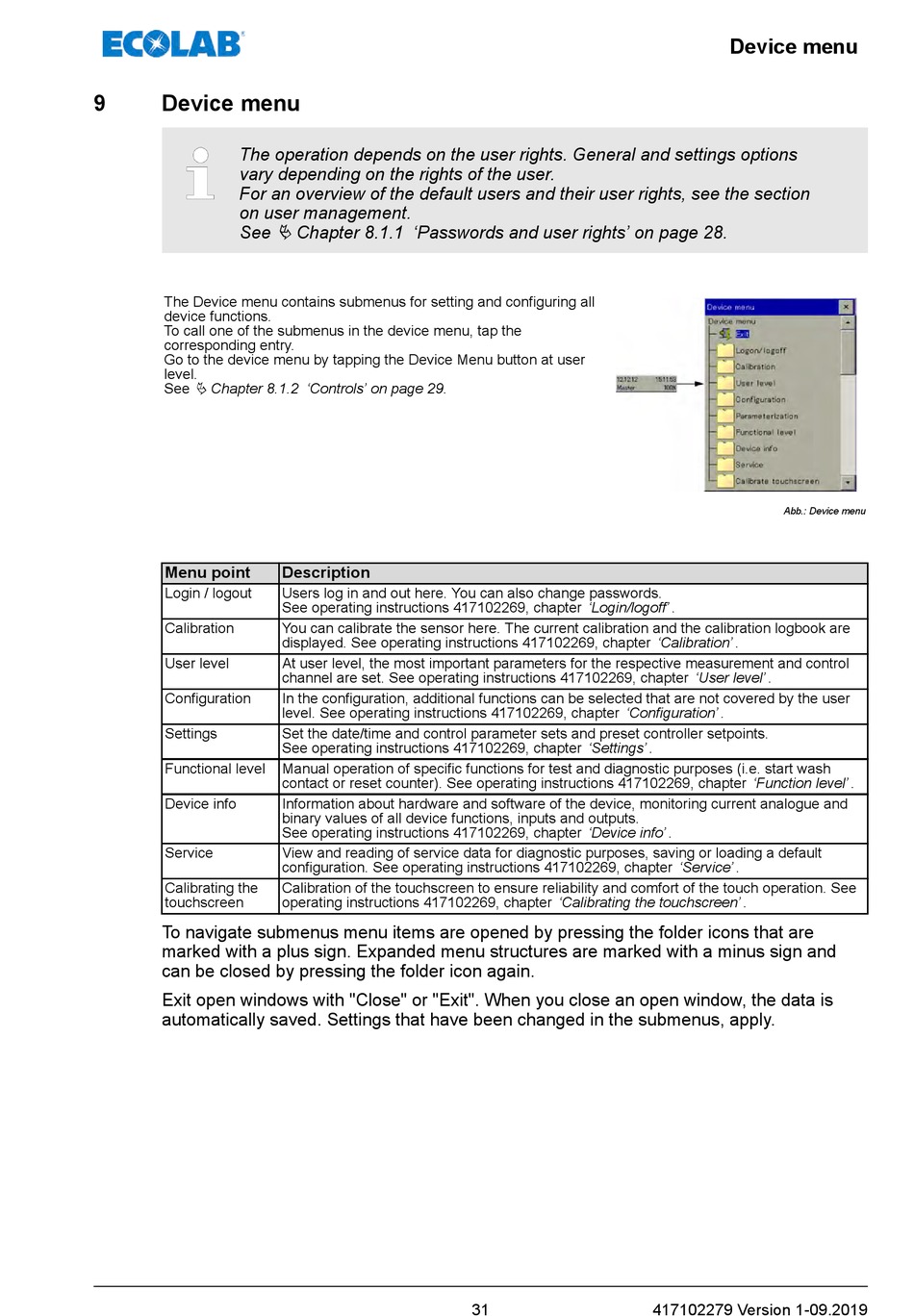

Device menu

The operation depends on the user rights. General and settings options
vary depending on the rights of the user.
For an overview of the default users and their user rights, see the section
on user management.
See
The Device menu contains submenus for setting and configuring all
device functions.
To call one of the submenus in the device menu, tap the
corresponding entry.
Go to the device menu by tapping the Device Menu button at user
level.
See Ä Chapter 8.1.2 'Controls' on page 29.
Menu point
Login / logout
Calibration
User level
Configuration
Settings
Functional level
Device info
Service
Calibrating the
touchscreen
To navigate submenus menu items are opened by pressing the folder icons that are
marked with a plus sign. Expanded menu structures are marked with a minus sign and
can be closed by pressing the folder icon again.
Exit open windows with "Close" or "Exit". When you close an open window, the data is
automatically saved. Settings that have been changed in the submenus, apply.
Ä Chapter 8.1.1 'Passwords and user rights' on page 28.
Description
Users log in and out here. You can also change passwords.
See operating instructions 417102269, chapter 'Login/logoff' .
You can calibrate the sensor here. The current calibration and the calibration logbook are
displayed. See operating instructions 417102269, chapter 'Calibration' .
At user level, the most important parameters for the respective measurement and control
channel are set. See operating instructions 417102269, chapter 'User level' .
In the configuration, additional functions can be selected that are not covered by the user
level. See operating instructions 417102269, chapter 'Configuration' .
Set the date/time and control parameter sets and preset controller setpoints.
See operating instructions 417102269, chapter 'Settings' .
Manual operation of specific functions for test and diagnostic purposes (i.e. start wash
contact or reset counter). See operating instructions 417102269, chapter 'Function level' .
Information about hardware and software of the device, monitoring current analogue and
binary values of all device functions, inputs and outputs.
See operating instructions 417102269, chapter 'Device info' .
View and reading of service data for diagnostic purposes, saving or loading a default
configuration. See operating instructions 417102269, chapter 'Service' .
Calibration of the touchscreen to ensure reliability and comfort of the touch operation. See
operating instructions 417102269, chapter 'Calibrating the touchscreen' .
31
Device menu
Abb.: Device menu
