List of components
1
Air heater fan
2
Control unit
3
Combustion air fan
4
Spark plug
5
Cover
6
Heat exchanger
7
Flame/overheating sensor
8
Modular Timer with
\
potentiometer
9
"Heating/ventilation" switch
10
Fusebox with main switch and
"activation" switch
11
Electric engine
12
Fuel connection
EN

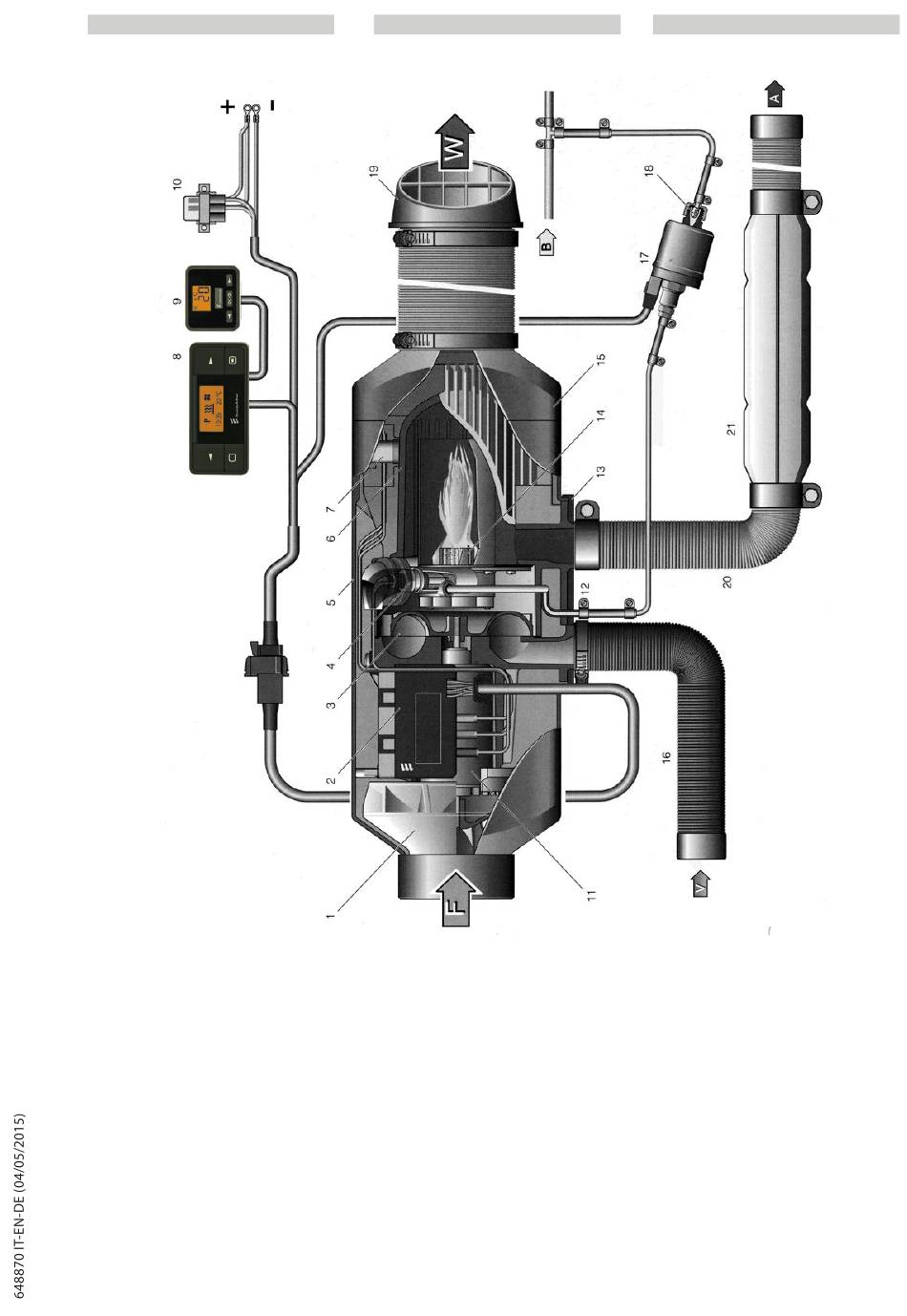

Cross-section drawing of heater
13
Flange gaskets
14
Combustion chamber
15
Outlet spout
D2= Ø 60 mm
D4= Ø 75/90 mm
16
Combustion air tube
17
Dosing pump
18
Fuel filter mounted in dosing pump
19
Orientable spout
20
Exhaust pipe
3-105
DE
F = Cool air
W = Hot air
A = Exhaust gas
B = Fuel
V = Combustion air
