BRAKE
HYDRAULIC DISC BRAKE
DANGER OF ACCIDENT!
• The maximum brake output is only achieved after a few brake processes with a
new brake disc or new brake linings!
DANGER
• The brake disc will grow very hot when braking and may cause burns. The disc
edges may also be very sharp and cause cutting injury. Therefore, do not touch
them while the disc is hot or turning.
• Use only Shimano mineral oil for the Shimano hydraulic brake system and an
equivalent mineral oil brake fluid for all other types.
SETTING THE DISC BRAKE
Settings usually are not necessary at the hydraulic disc brake system. The brake linings centre inde-
pendently by actuation of the brake levers.

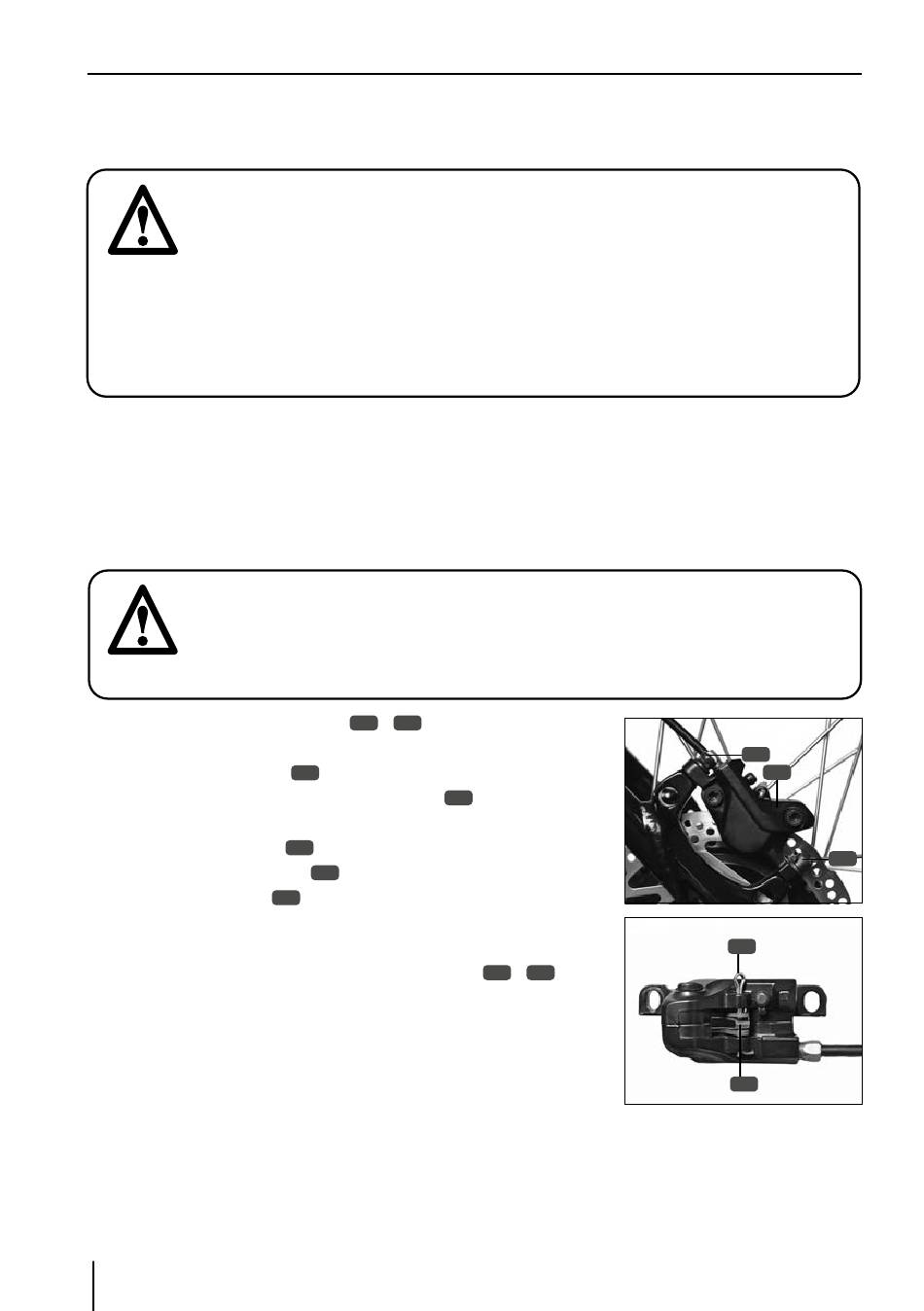

REPLACING THE BRAKE LINING
DANGER OF ACCIDENT AND DAMAGE!
• Replace the brake linings when their thickness is less than 0.5 mm. The brake
output may otherwise drop to complete loss of the brake force and the brake
system may be damaged.
DANGER
1. Loosen the two clamp screws
with a 5 mm hexagonal socket wrench.
2. Take the brake calliper
3. Straighten the curved end of the safety pin
tool for this (e.g. pliers).
4. Pull out the safety pin
5. Replace the brake linings
6. Insert the safety pin
that the pin cannot come free of the holder. Use suitable tools
for this (e.g. pliers).
7. Attach the calliper by tightening the two screws
5 mm hexagonal socket wrench.
8. Actuate the respective brake several times in order to centre the
new brake linings in the brake calliper. If there are still any grind-
ing sounds, adjust the brake as described.
EN 32
/ of the brake calliper
103 105
off from the brake disc.
104
104
.
104
.
105
again and bend the open end over so
104
. Use a suitable
/ with a
103 105
103
104
105
106
107
