CHAIN
wrench. Tighten the axle nuts according to the torque specifi-
cation (s. chapter torque specifications).

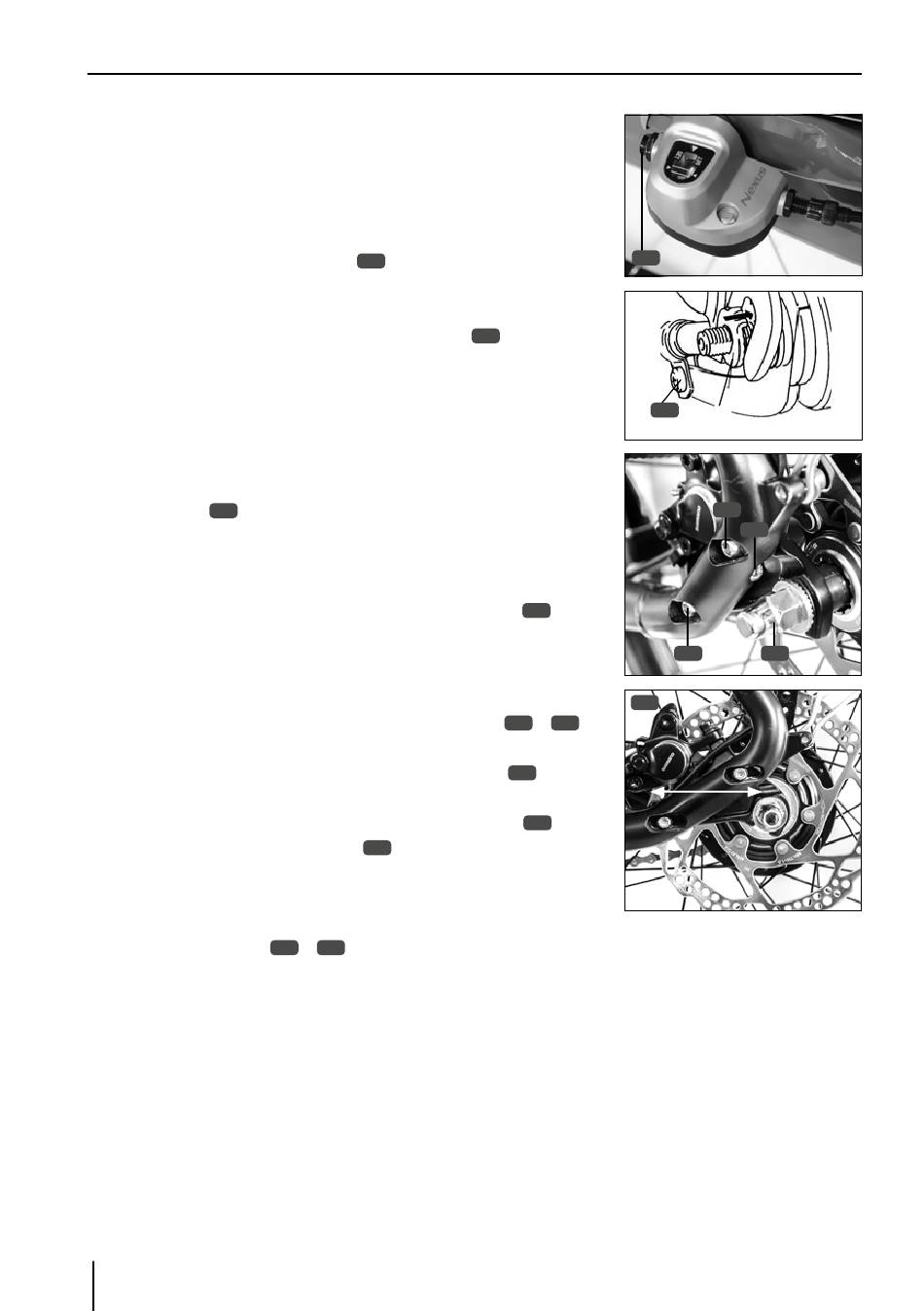

SHIMANO NEXUS INTER 3
1. Use the shifting lever to put in the 1st gear.
2. Release the attachment screw
3. Remove the switchbox.
4. Pull the switching pin that you can now see from the axle bore.
5. Loosen the screw of the brake counter-holder
driver.
6. Release the axle nuts on both sides of the rear wheel with a 15
mm wrench.
7. Shift the rear wheel to adjust the chain tension. Ensure that the
wheel is placed straight in the holder.
8. Attach the counter-holder bracket with the pipe clamp screw
connection
at the frame.
253
9. Push the switching pin into the axle guide on the right to the
stop.
10. Push the switchbox onto the right axle nut as shown.
11. Fasten the switchbox with the lower attachment nut
12. Set the gearshift (s. chapter Gearshift).
GEAR HUB WITH DISK BRAKE
1. Use a 5-mm Allen wrench to undo the two screws
both sides of the frame
2. Use a 5-mm Allen wrench to undo the fixing screw
sides.
3. Now shift the rear wheel to adjust the chain tension (
do so, screw in the fixing screw
has been reached. Make sure that the wheel is straight when
seated in the holder and that the chain is properly tensioned
(see Checking the chain tension chapter)
4. Tighten the screws
chapter).
