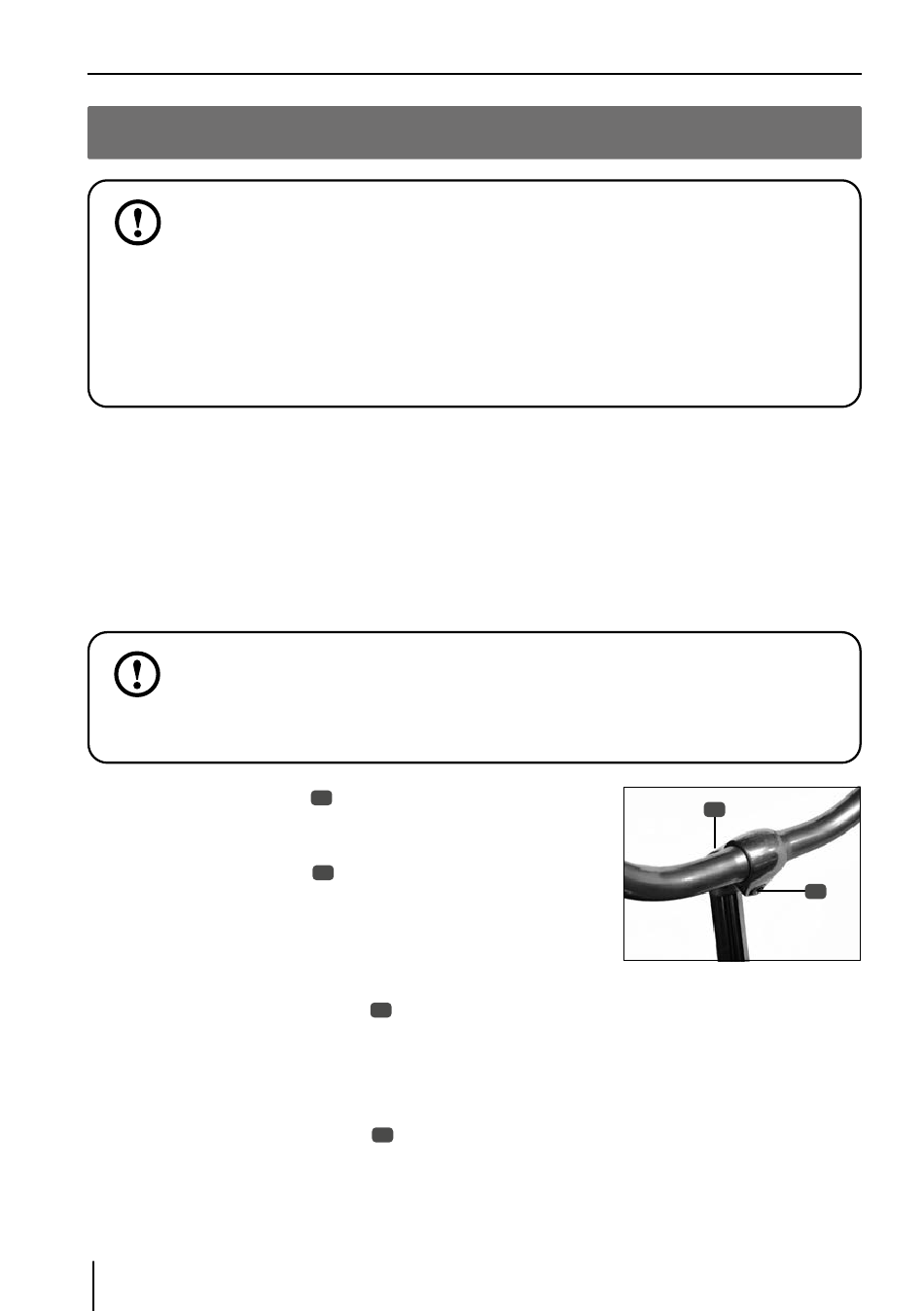

HANDLEBAR
HANDLEBAR
DANGER OF ACCIDENT!
• Ensure before every ride and after setting that the handlebar, the screws of the
handle attachment, the closure mechanics and the handlebar quick clamp are fitted
WARNING!
tightly!
• The handlebar must not be inclined at straight rides.
• Do not put any carrying bags on the handlebar for transporting objects, since this
may impair the riding performance. Instead, only use commercial bicycle baskets or
handlebar bags.
RIGID HANDLEBAR STEM
In a rigid handlebar step, the handlebar can be adjusted for height, position and inclination angle de-
pending on version.
SETTING THE POSITION AND HEIGHT
DANGER OF BREAK AND ACCIDENTS!
• The stem must not be pulled out beyond the maximum mark of the handlebar shaft!
WARNING!
The mark of the minimum insertion depth on the handlebar shaft must not be visible.
No warranty if this is not observed!
1. Loosen the clamp screw
wrench.
2. Set the handlebar or stem position and height.
3. Tighten the clamp screw
specification (s. chapter Torque specifications).
SETTING THE HANDLEBAR INCLINATION
1. Loosen the clamp spindle screw
cket wrench.
2. Adjust the inclination angle of the handlebar.
3. Turn the handlebar attachments (e.g. brake lever) back to the st-
arting position.
4. Tighten the clamp spindle screw
torque specification (s. chapter Torque specifications).
EN
16
with a 6 mm hexagon socket
43
again well according to the torque
43
with a 6 mm hexagonal so-
44
again well according to the
44
