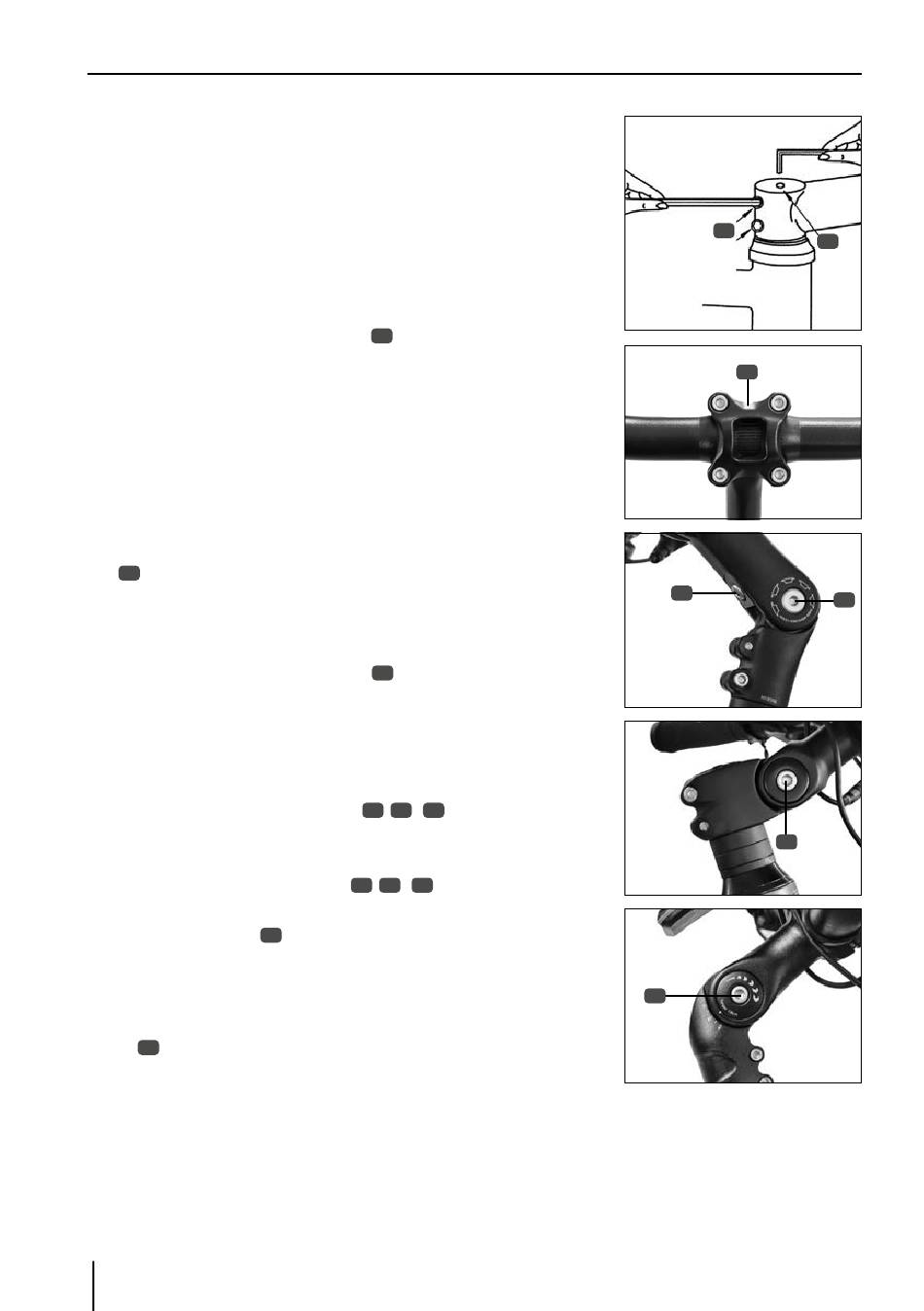

HANDLEBAR
A-HEAD STEM
For the A-Head stem, the handlebar position, the handlebar inclina-
tion and, depending on the model, the angle setting may be adjust-
ed. The handlebar height, however, cannot be set.
SETTING THE POSITION
1. Loosen the lateral clamp screws
mm hexagonal socket wrench.
2. Align the handlebar.
3. Tighten the clamp screws again well (s. chapter Torque speci-
fications).
SETTING THE INCLINATION
1. First loosen the clamp spindle screw of the handlebar sleeve
with a 5 mm hexagonal socket wrench.
51
2. Adjust the inclination angle of the handlebar.
3. Turn the handlebar attachments (e.g. brake lever) back to the
starting position.
4. Tighten the clamp spindle screw
Torque specifications).
SET STEM ANGLE
1. Loosen the lateral clamp screw
hexagonal socket wrench respectively.
2. Now adjust the desired angle at the stem.
3. Then tighten the clamp screw
the torque specification (s. chapter Torque specifications
4. Tighten the screw
SETTING THE STEERING PLAY
In order to set the play in the steering, tighten the upper setting
screw with a 5 mm hexagonal socket wrench. The setting screw
50
should be tightened until the bearing is play-free. It does not need
to be tightened firmly necessarily.
