5.3

Installation of the Navigation Receiver

Install the navigation receiver under the baseboard in the close area of the sensors (max. 60
cm away). Using the accompanying navigation receiver stencil guide screw two screws
(round-headed screws Ø 2,5 x 10) into the baseboard, slide the navigation receiver with its
locating slots over the screws and using a small screwdriver through the holes in the recei-
ver stencil securely fastening it into position. Do not overtighten.

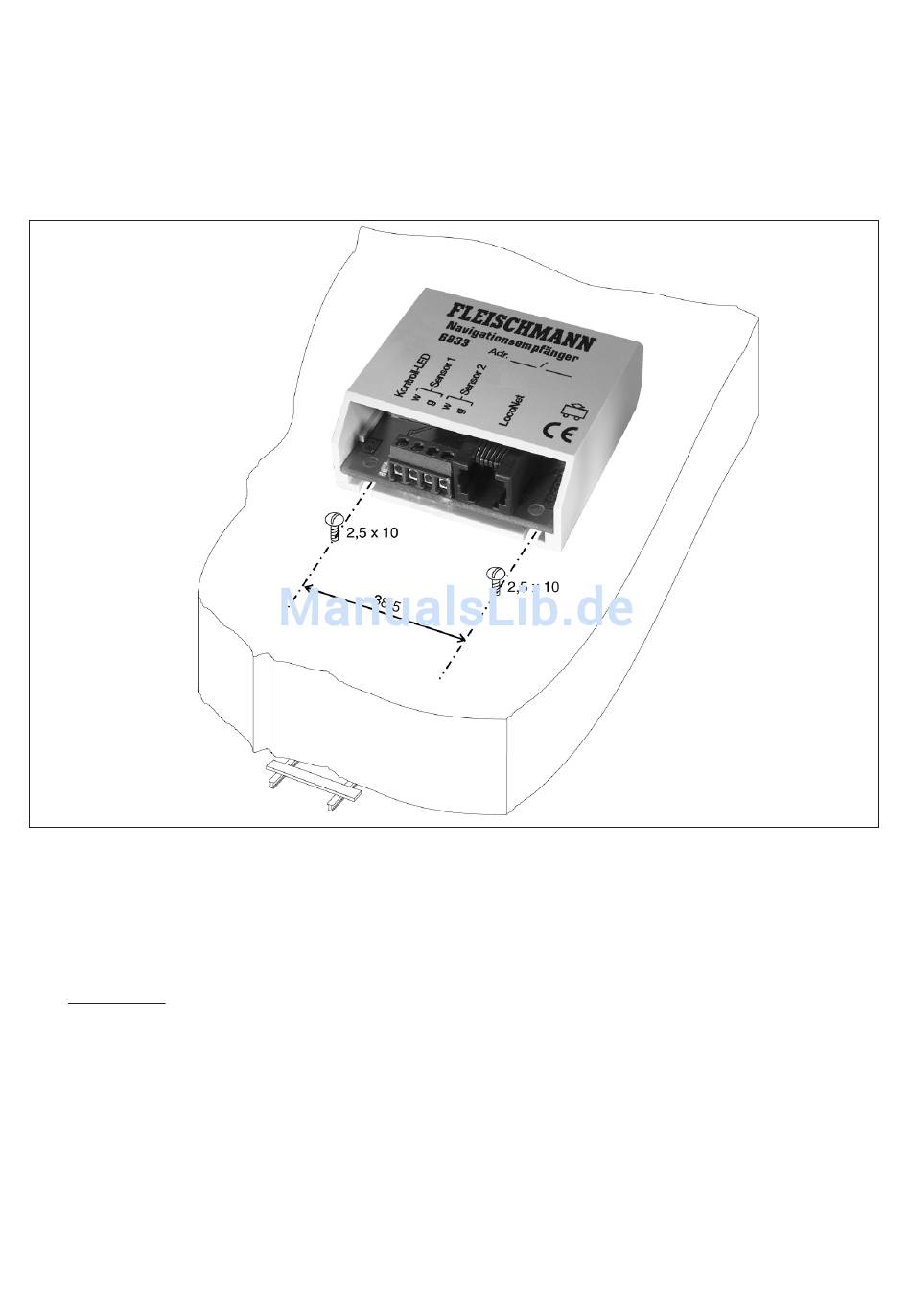

Diagram 6: Installation and Connection of a Navigation Receiver
Connect up the white wires of the sensor to the connection terminal marked „w" of the navi-
gation receiver, and the corresponding grey wire onto the connection terminal marked „g".
Important
Following the installation of the navigation receiver it is important to connect it to the
LocoNet as described in chapter 5.4 and to program another address other than that of
address 1 as set by the factory, as described in chapters 6 and 7. If at first, several navi-
gation receivers, all with the same address are connected to the LocoNet, it is not pos-
sible to target, and access, a specific one.
5.4

Connection to the LocoNet

Put one end of your LocoNet-cable into the „LocoNet T" socket of your TWIN-CENTER and
the other end into the LocoNet-socket of the navigation receiver. Now the control-LED on
the navigation receiver will briefly light up to prove the connection.
