Commissioning

Note!
Monitor the system for the entire automatic filling process.

Note!
Filling the system with water is not part of the deliverables of the Reflex
Customer Service.

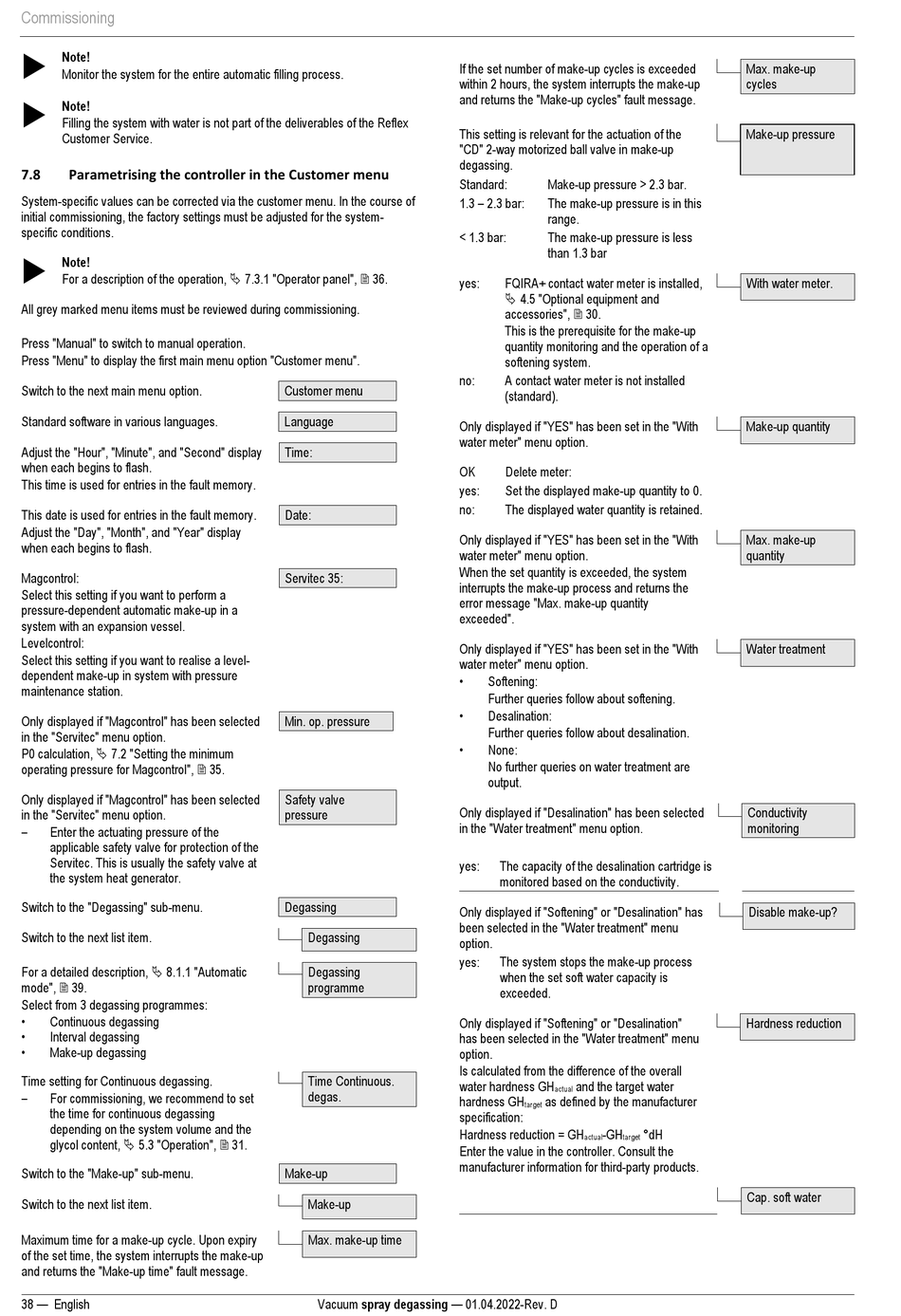

7.8 Parametrising the controller in the Customer menu
System-specific values can be corrected via the customer menu. In the course of
initial commissioning, the factory settings must be adjusted for the system-
specific conditions.

Note!
For a description of the operation,  7.3.1 "Operator panel",  36.
All grey marked menu items must be reviewed during commissioning.
Press "Manual" to switch to manual operation.
Press "Menu" to display the first main menu option "Customer menu".
Switch to the next main menu option.
Standard software in various languages.
Adjust the "Hour", "Minute", and "Second" display
when each begins to flash.
This time is used for entries in the fault memory.
This date is used for entries in the fault memory.
Adjust the "Day", "Month", and "Year" display
when each begins to flash.
Magcontrol:
Select this setting if you want to perform a
pressure-dependent automatic make-up in a
system with an expansion vessel.
Levelcontrol:
Select this setting if you want to realise a level-
dependent make-up in system with pressure
maintenance station.
Only displayed if "Magcontrol" has been selected
in the "Servitec" menu option.
P0 calculation,  7.2 "Setting the minimum
operating pressure for Magcontrol",  35.
Only displayed if "Magcontrol" has been selected
in the "Servitec" menu option.
–
Enter the actuating pressure of the
applicable safety valve for protection of the
Servitec. This is usually the safety valve at
the system heat generator.
Switch to the "Degassing" sub-menu.
Switch to the next list item.
For a detailed description,  8.1.1 "Automatic
mode",  39.
Select from 3 degassing programmes:
•
Continuous degassing
•
Interval degassing
•
Make-up degassing
Time setting for Continuous degassing.
–
For commissioning, we recommend to set
the time for continuous degassing
depending on the system volume and the
glycol content,  5.3 "Operation",  31.
Switch to the "Make-up" sub-menu.
Switch to the next list item.
Maximum time for a make-up cycle. Upon expiry
of the set time, the system interrupts the make-up
and returns the "Make-up time" fault message.
38 — English
Customer menu
Language
Time:
Date:
Servitec 35:
Min. op. pressure
Safety valve
pressure
Degassing
Degassing
Degassing
programme
Time Continuous.
degas.
Make-up
Make-up
Max. make-up time
Vacuum spray degassing — 01.04.2022-Rev. D
If the set number of make-up cycles is exceeded
within 2 hours, the system interrupts the make-up
and returns the "Make-up cycles" fault message.
This setting is relevant for the actuation of the
"CD" 2-way motorized ball valve in make-up
degassing.
Standard: Make-up pressure > 2.3 bar.
1.3 – 2.3 bar:
The make-up pressure is in this
range.
< 1.3 bar: The make-up pressure is less
than 1.3 bar
yes: FQIRA+ contact water meter is installed,
 4.5 "Optional equipment and
accessories",  30.
This is the prerequisite for the make-up
quantity monitoring and the operation of a
softening system.
no: A contact water meter is not installed
(standard).
Only displayed if "YES" has been set in the "With
water meter" menu option.
OK Delete meter:
yes: Set the displayed make-up quantity to 0.
no: The displayed water quantity is retained.
Only displayed if "YES" has been set in the "With
water meter" menu option.
When the set quantity is exceeded, the system
interrupts the make-up process and returns the
error message "Max. make-up quantity
exceeded".
Only displayed if "YES" has been set in the "With
water meter" menu option.
•
Softening:
Further queries follow about softening.
•
Desalination:
Further queries follow about desalination.
•
None:
No further queries on water treatment are
output.
Only displayed if "Desalination" has been selected
in the "Water treatment" menu option.
yes: The capacity of the desalination cartridge is
monitored based on the conductivity.
Only displayed if "Softening" or "Desalination" has
been selected in the "Water treatment" menu
option.
yes: The system stops the make-up process
when the set soft water capacity is
exceeded.
Only displayed if "Softening" or "Desalination"
has been selected in the "Water treatment" menu
option.
Is calculated from the difference of the overall
water hardness GH and the target water
actual
hardness GH as defined by the manufacturer
target
specification:
Hardness reduction = GH -GH
actual target
Enter the value in the controller. Consult the
manufacturer information for third-party products.
Max. make-up
cycles
Make-up pressure
With water meter.
Make-up quantity
Max. make-up
quantity
Water treatment
Conductivity
monitoring
Disable make-up?
Hardness reduction
°dH
Cap. soft water
