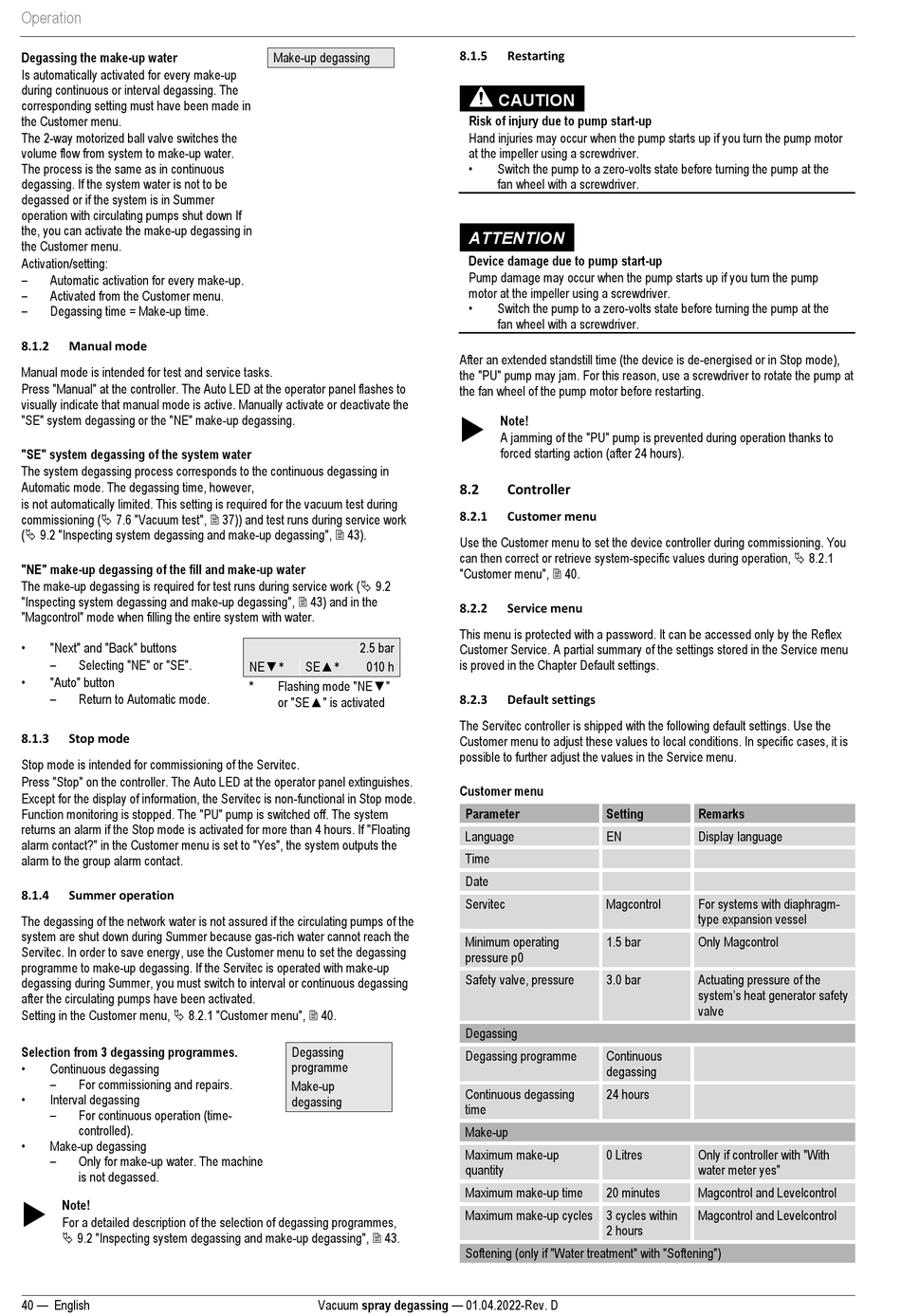

Operation
Degassing the make-up water
Is automatically activated for every make-up
during continuous or interval degassing. The
corresponding setting must have been made in
the Customer menu.
The 2-way motorized ball valve switches the
volume flow from system to make-up water.
The process is the same as in continuous
degassing. If the system water is not to be
degassed or if the system is in Summer
operation with circulating pumps shut down If
the, you can activate the make-up degassing in
the Customer menu.
Activation/setting:
–
Automatic activation for every make-up.
–
Activated from the Customer menu.
–
Degassing time = Make-up time.
8.1.2 Manual mode
Manual mode is intended for test and service tasks.
Press "Manual" at the controller. The Auto LED at the operator panel flashes to
visually indicate that manual mode is active. Manually activate or deactivate the
"SE" system degassing or the "NE" make-up degassing.
"SE" system degassing of the system water
The system degassing process corresponds to the continuous degassing in
Automatic mode. The degassing time, however,
is not automatically limited. This setting is required for the vacuum test during
commissioning ( 7.6 "Vacuum test",  37)) and test runs during service work
( 9.2 "Inspecting system degassing and make-up degassing",  43).
"NE" make-up degassing of the fill and make-up water
The make-up degassing is required for test runs during service work ( 9.2
"Inspecting system degassing and make-up degassing",  43) and in the
"Magcontrol" mode when filling the entire system with water.
•
"Next" and "Back" buttons
–
Selecting "NE" or "SE".
•
"Auto" button
–
Return to Automatic mode.
8.1.3 Stop mode
Stop mode is intended for commissioning of the Servitec.
Press "Stop" on the controller. The Auto LED at the operator panel extinguishes.
Except for the display of information, the Servitec is non-functional in Stop mode.
Function monitoring is stopped. The "PU" pump is switched off. The system
returns an alarm if the Stop mode is activated for more than 4 hours. If "Floating
alarm contact?" in the Customer menu is set to "Yes", the system outputs the
alarm to the group alarm contact.
8.1.4 Summer operation
The degassing of the network water is not assured if the circulating pumps of the
system are shut down during Summer because gas-rich water cannot reach the
Servitec. In order to save energy, use the Customer menu to set the degassing
programme to make-up degassing. If the Servitec is operated with make-up
degassing during Summer, you must switch to interval or continuous degassing
after the circulating pumps have been activated.
Setting in the Customer menu,  8.2.1 "Customer menu",  40.
Selection from 3 degassing programmes.
•
Continuous degassing
–
For commissioning and repairs.
•
Interval degassing
–
For continuous operation (time-
controlled).
•
Make-up degassing
–
Only for make-up water. The machine
is not degassed.

Note!
For a detailed description of the selection of degassing programmes,
 9.2 "Inspecting system degassing and make-up degassing",  43.
40 — English
Make-up degassing
2.5 bar
NE▼* SE▲* 010 h
* Flashing mode "NE▼"
or "SE▲" is activated
Degassing
programme
Make-up
degassing
Vacuum spray degassing — 01.04.2022-Rev. D
8.1.5 Restarting
CAUTION
Risk of injury due to pump start-up
Hand injuries may occur when the pump starts up if you turn the pump motor
at the impeller using a screwdriver.
•
Switch the pump to a zero-volts state before turning the pump at the
fan wheel with a screwdriver.
ATTENTION
Device damage due to pump start-up
Pump damage may occur when the pump starts up if you turn the pump
motor at the impeller using a screwdriver.
•
Switch the pump to a zero-volts state before turning the pump at the
fan wheel with a screwdriver.
After an extended standstill time (the device is de-energised or in Stop mode),
the "PU" pump may jam. For this reason, use a screwdriver to rotate the pump at
the fan wheel of the pump motor before restarting.

Note!
A jamming of the "PU" pump is prevented during operation thanks to
forced starting action (after 24 hours).
8.2 Controller
8.2.1 Customer menu
Use the Customer menu to set the device controller during commissioning. You
can then correct or retrieve system-specific values during operation,  8.2.1
"Customer menu",  40.
8.2.2 Service menu
This menu is protected with a password. It can be accessed only by the Reflex
Customer Service. A partial summary of the settings stored in the Service menu
is proved in the Chapter Default settings.
8.2.3 Default settings
The Servitec controller is shipped with the following default settings. Use the
Customer menu to adjust these values to local conditions. In specific cases, it is
possible to further adjust the values in the Service menu.
Customer menu
Parameter Setting
Language EN
Time
Date
Servitec Magcontrol
Minimum operating 1.5 bar
pressure p0
Safety valve, pressure 3.0 bar
Degassing
Degassing programme Continuous
degassing
Continuous degassing 24 hours
time
Make-up
Maximum make-up 0 Litres
quantity
Maximum make-up time 20 minutes
Maximum make-up cycles 3 cycles within
2 hours
Softening (only if "Water treatment" with "Softening")
Remarks
Display language
For systems with diaphragm-
type expansion vessel
Only Magcontrol
Actuating pressure of the
system's heat generator safety
valve
Only if controller with "With
water meter yes"
Magcontrol and Levelcontrol
Magcontrol and Levelcontrol
