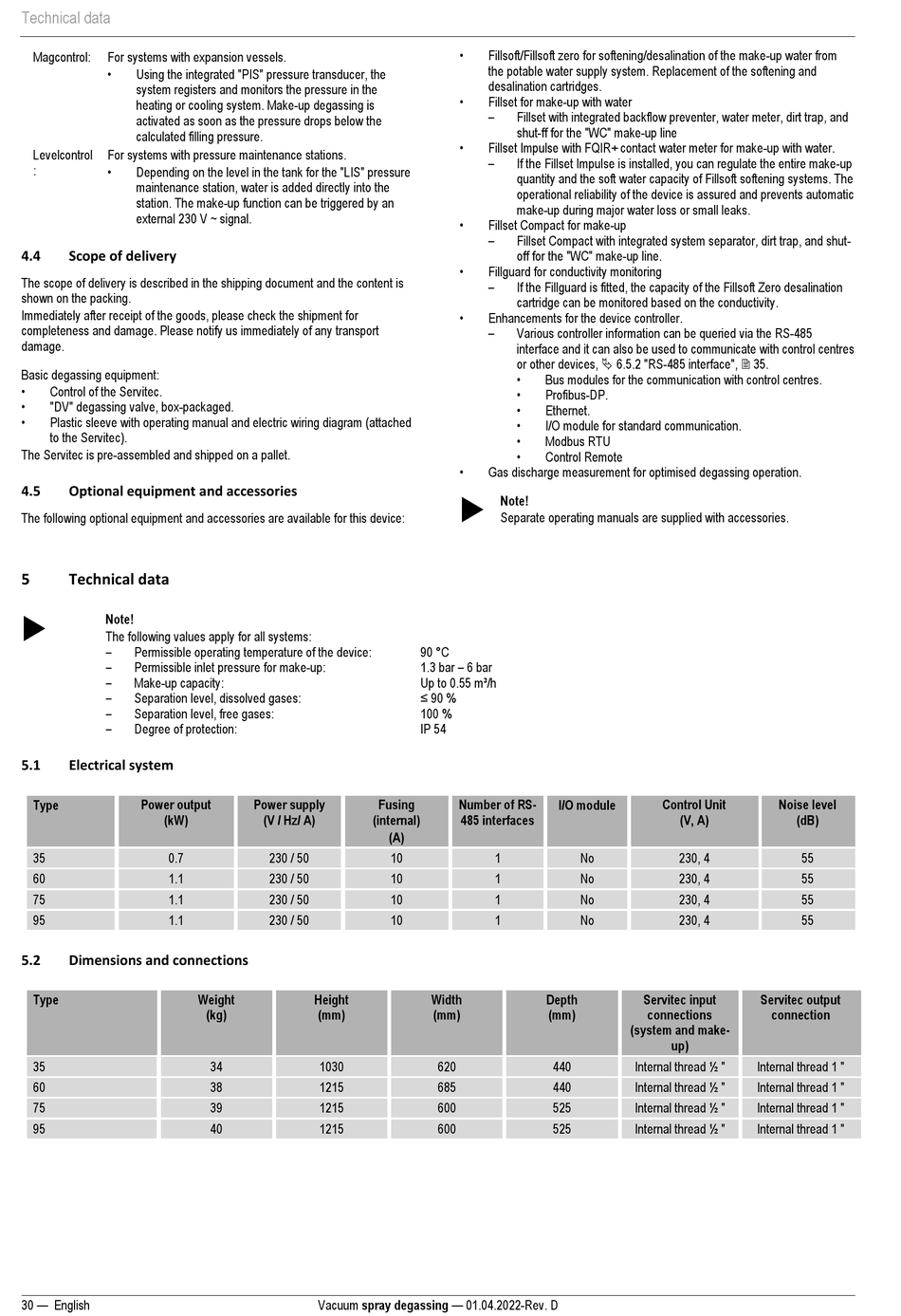

Reflex Servitec 35 Originalbetriebsanleitung Seite 30

Technical data
Magcontrol: For systems with expansion vessels.
•
Using the integrated "PIS" pressure transducer, the
system registers and monitors the pressure in the
heating or cooling system. Make-up degassing is
activated as soon as the pressure drops below the
calculated filling pressure.
Levelcontrol For systems with pressure maintenance stations.
•
:
Depending on the level in the tank for the "LIS" pressure
maintenance station, water is added directly into the
station. The make-up function can be triggered by an
external 230 V ~ signal.
4.4 Scope of delivery
The scope of delivery is described in the shipping document and the content is
shown on the packing.
Immediately after receipt of the goods, please check the shipment for
completeness and damage. Please notify us immediately of any transport
damage.
Basic degassing equipment:
•
Control of the Servitec.
•
"DV" degassing valve, box-packaged.
•
Plastic sleeve with operating manual and electric wiring diagram (attached
to the Servitec).
The Servitec is pre-assembled and shipped on a pallet.
4.5 Optional equipment and accessories
The following optional equipment and accessories are available for this device:
5 Technical data

Note!
The following values apply for all systems:
–
Permissible operating temperature of the device:
–
Permissible inlet pressure for make-up:
–
Make-up capacity:
–
Separation level, dissolved gases:
–
Separation level, free gases:
–
Degree of protection:
5.1 Electrical system
Type Power output
(kW)
35 0.7
60 1.1
75 1.1
95 1.1
5.2 Dimensions and connections
Type
35
60
75
95
30 — English
Power supply
(V / Hz/ A)
230 / 50
230 / 50
230 / 50
230 / 50
Weight Height
(kg) (mm)
34 1030
38 1215
39 1215
40 1215
Vacuum spray degassing — 01.04.2022-Rev. D
•
Fillsoft/Fillsoft zero for softening/desalination of the make-up water from
the potable water supply system. Replacement of the softening and
desalination cartridges.
•
Fillset for make-up with water
–
Fillset with integrated backflow preventer, water meter, dirt trap, and
shut-ff for the "WC" make-up line
•
Fillset Impulse with FQIR+ contact water meter for make-up with water.
–
If the Fillset Impulse is installed, you can regulate the entire make-up
quantity and the soft water capacity of Fillsoft softening systems. The
operational reliability of the device is assured and prevents automatic
make-up during major water loss or small leaks.
•
Fillset Compact for make-up
–
Fillset Compact with integrated system separator, dirt trap, and shut-
off for the "WC" make-up line.
•
Fillguard for conductivity monitoring
–
If the Fillguard is fitted, the capacity of the Fillsoft Zero desalination
cartridge can be monitored based on the conductivity.
•
Enhancements for the device controller.
–
Various controller information can be queried via the RS-485
interface and it can also be used to communicate with control centres
or other devices,  6.5.2 "RS-485 interface",  35.
•
•
•
•
•
•
•
Gas discharge measurement for optimised degassing operation.

Note!
Separate operating manuals are supplied with accessories.
90 °C
1.3 bar – 6 bar
Up to 0.55 m³/h
≤ 90 %
100 %
IP 54
Fusing Number of RS-
(internal) 485 interfaces
(A)
10 1
10 1
10 1
10 1
Width
(mm)
620
685
600
600
Bus modules for the communication with control centres.
Profibus-DP.
Ethernet.
I/O module for standard communication.
Modbus RTU
Control Remote
I/O module Control Unit
(V, A)
No 230, 4
No 230, 4
No 230, 4
No 230, 4
Depth Servitec input
(mm) connections
(system and make-
up)
440 Internal thread ½ "
440 Internal thread ½ "
525 Internal thread ½ "
525 Internal thread ½ "
Noise level
(dB)
55
55
55
55
Servitec output
connection
Internal thread 1 "
Internal thread 1 "
Internal thread 1 "
Internal thread 1 "
