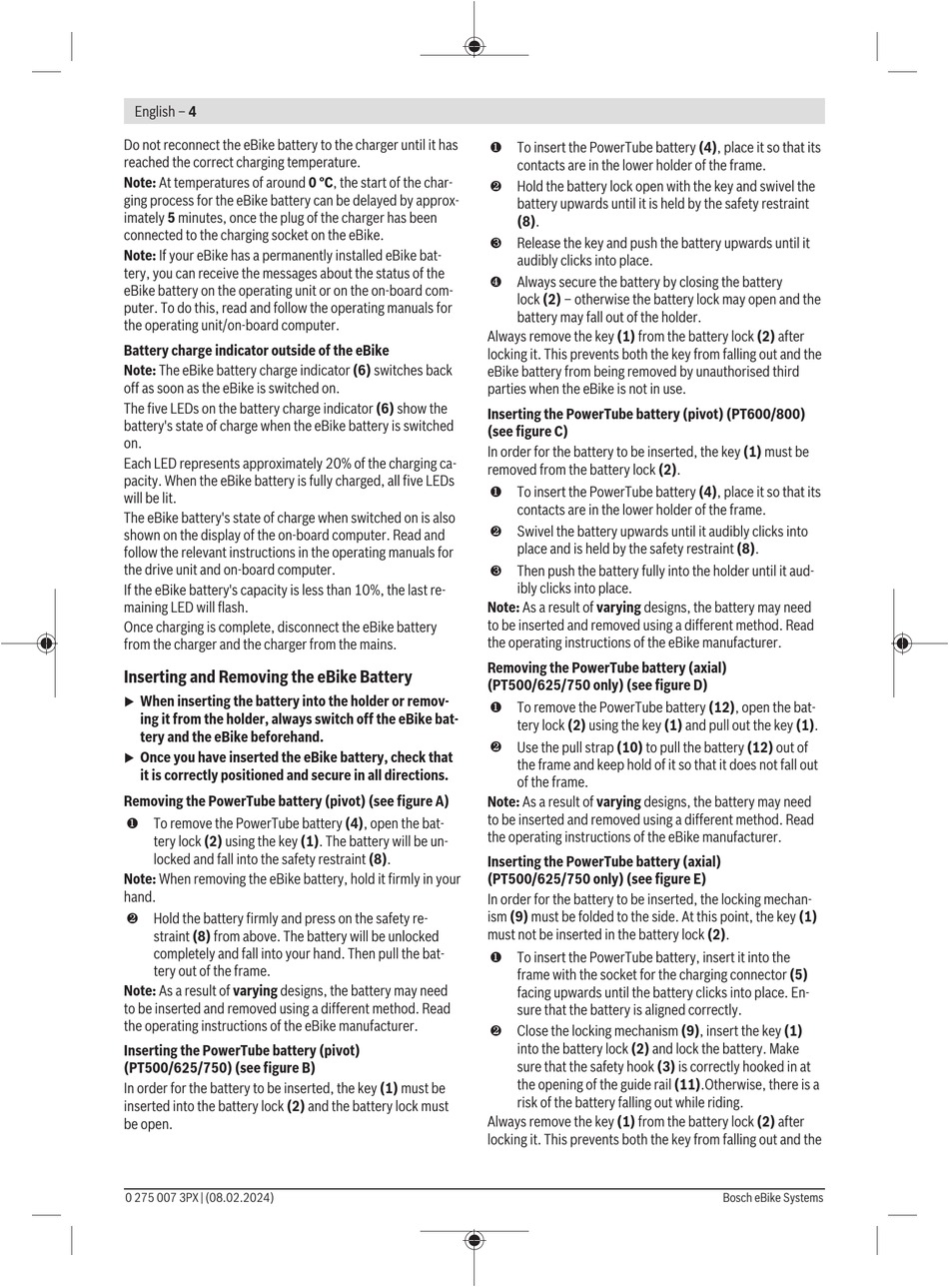

English – 4
Do not reconnect the eBike battery to the charger until it has
reached the correct charging temperature.
Note: At temperatures of around 0 °C, the start of the char-
ging process for the eBike battery can be delayed by approx-
imately 5 minutes, once the plug of the charger has been
connected to the charging socket on the eBike.
Note: If your eBike has a permanently installed eBike bat-
tery, you can receive the messages about the status of the
eBike battery on the operating unit or on the on-board com-
puter. To do this, read and follow the operating manuals for
the operating unit/on-board computer.
Battery charge indicator outside of the eBike
Note: The eBike battery charge indicator (6) switches back
off as soon as the eBike is switched on.
The five LEDs on the battery charge indicator (6) show the
battery's state of charge when the eBike battery is switched
on.
Each LED represents approximately 20% of the charging ca-
pacity. When the eBike battery is fully charged, all five LEDs
will be lit.
The eBike battery's state of charge when switched on is also
shown on the display of the on-board computer. Read and
follow the relevant instructions in the operating manuals for
the drive unit and on-board computer.
If the eBike battery's capacity is less than 10%, the last re-
maining LED will flash.
Once charging is complete, disconnect the eBike battery
from the charger and the charger from the mains.
Inserting and Removing the eBike Battery
When inserting the battery into the holder or remov-
u
ing it from the holder, always switch off the eBike bat-
tery and the eBike beforehand.
Once you have inserted the eBike battery, check that
u
it is correctly positioned and secure in all directions.
Removing the PowerTube battery (pivot) (see figure A)
❶ To remove the PowerTube battery (4), open the bat-
tery lock (2) using the key (1). The battery will be un-
locked and fall into the safety restraint (8).
Note: When removing the eBike battery, hold it firmly in your
hand.
❷ Hold the battery firmly and press on the safety re-
straint (8) from above. The battery will be unlocked
completely and fall into your hand. Then pull the bat-
tery out of the frame.
Note: As a result of varying designs, the battery may need
to be inserted and removed using a different method. Read
the operating instructions of the eBike manufacturer.
Inserting the PowerTube battery (pivot)
(PT500/625/750) (see figure B)
In order for the battery to be inserted, the key (1) must be
inserted into the battery lock (2) and the battery lock must
be open.
0 275 007 3PX | (08.02.2024)
❶ To insert the PowerTube battery (4), place it so that its
contacts are in the lower holder of the frame.
❷ Hold the battery lock open with the key and swivel the
battery upwards until it is held by the safety restraint
(8).
❸ Release the key and push the battery upwards until it
audibly clicks into place.
❹ Always secure the battery by closing the battery
lock (2) – otherwise the battery lock may open and the
battery may fall out of the holder.
Always remove the key (1) from the battery lock (2) after
locking it. This prevents both the key from falling out and the
eBike battery from being removed by unauthorised third
parties when the eBike is not in use.
Inserting the PowerTube battery (pivot) (PT600/800)
(see figure C)
In order for the battery to be inserted, the key (1) must be
removed from the battery lock (2).
❶ To insert the PowerTube battery (4), place it so that its
contacts are in the lower holder of the frame.
❷ Swivel the battery upwards until it audibly clicks into
place and is held by the safety restraint (8).
❸ Then push the battery fully into the holder until it aud-
ibly clicks into place.
Note: As a result of varying designs, the battery may need
to be inserted and removed using a different method. Read
the operating instructions of the eBike manufacturer.
Removing the PowerTube battery (axial)
(PT500/625/750 only) (see figure D)
❶ To remove the PowerTube battery (12), open the bat-
tery lock (2) using the key (1) and pull out the key (1).
❷ Use the pull strap (10) to pull the battery (12) out of
the frame and keep hold of it so that it does not fall out
of the frame.
Note: As a result of varying designs, the battery may need
to be inserted and removed using a different method. Read
the operating instructions of the eBike manufacturer.
Inserting the PowerTube battery (axial)
(PT500/625/750 only) (see figure E)
In order for the battery to be inserted, the locking mechan-
ism (9) must be folded to the side. At this point, the key (1)
must not be inserted in the battery lock (2).
❶ To insert the PowerTube battery, insert it into the
frame with the socket for the charging connector (5)
facing upwards until the battery clicks into place. En-
sure that the battery is aligned correctly.
❷ Close the locking mechanism (9), insert the key (1)
into the battery lock (2) and lock the battery. Make
sure that the safety hook (3) is correctly hooked in at
the opening of the guide rail (11).Otherwise, there is a
risk of the battery falling out while riding.
Always remove the key (1) from the battery lock (2) after
locking it. This prevents both the key from falling out and the
