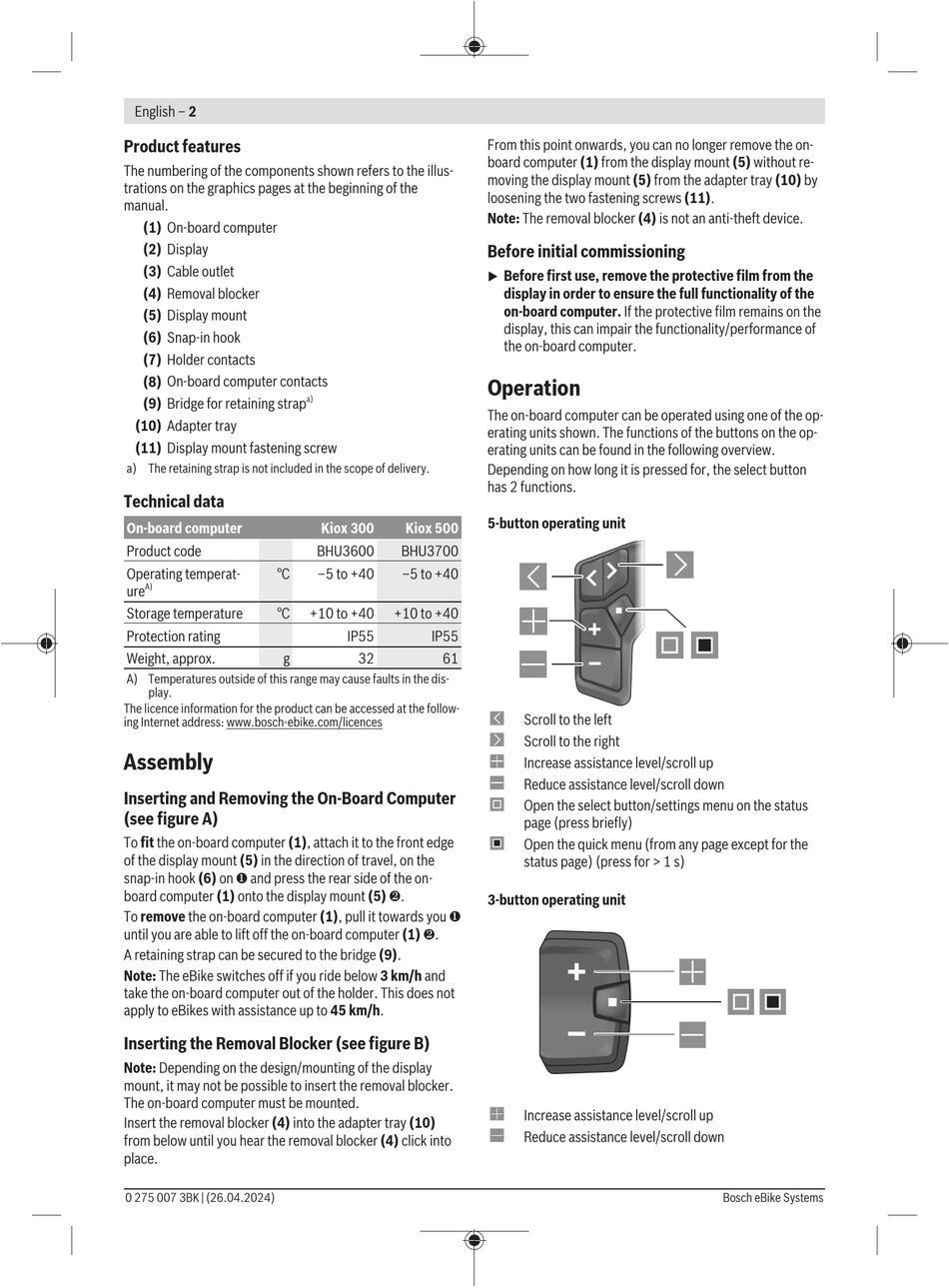

English – 2
Product features
The numbering of the components shown refers to the illus-
trations on the graphics pages at the beginning of the
manual.
(1) On-board computer
(2) Display
(3) Cable outlet
(4) Removal blocker
(5) Display mount
(6) Snap-in hook
(7) Holder contacts
(8) On-board computer contacts
(9) Bridge for retaining strap
(10) Adapter tray
(11) Display mount fastening screw
a) The retaining strap is not included in the scope of delivery.
Technical data
On-board computer
Product code
Operating temperat- °C
A)
ure
Storage temperature °C
Protection rating
Weight, approx. g
A) Temperatures outside of this range may cause faults in the dis-
play.
The licence information for the product can be accessed at the follow-
ing Internet address: www.bosch-ebike.com/licences
Assembly
Inserting and Removing the On-Board Computer
(see figure A)
To fit the on-board computer (1), attach it to the front edge
of the display mount (5) in the direction of travel, on the
snap-in hook (6) on ❶ and press the rear side of the on-
board computer (1) onto the display mount (5) ❷.
To remove the on-board computer (1), pull it towards you ❶
until you are able to lift off the on-board computer (1) ❷.
A retaining strap can be secured to the bridge (9).
Note: The eBike switches off if you ride below 3 km/h and
take the on-board computer out of the holder. This does not
apply to eBikes with assistance up to 45 km/h.
Inserting the Removal Blocker (see figure B)
Note: Depending on the design/mounting of the display
mount, it may not be possible to insert the removal blocker.
The on-board computer must be mounted.
Insert the removal blocker (4) into the adapter tray (10)
from below until you hear the removal blocker (4) click into
place.
0 275 007 3BK | (26.04.2024)
a)
Kiox 300 Kiox 500
BHU3600 BHU3700
–5 to +40 –5 to +40
+10 to +40 +10 to +40
IP55 IP55
32 61
From this point onwards, you can no longer remove the on-
board computer (1) from the display mount (5) without re-
moving the display mount (5) from the adapter tray (10) by
loosening the two fastening screws (11).
Note: The removal blocker (4) is not an anti-theft device.
Before initial commissioning
Before first use, remove the protective film from the
u
display in order to ensure the full functionality of the
on-board computer. If the protective film remains on the
display, this can impair the functionality/performance of
the on-board computer.
Operation
The on-board computer can be operated using one of the op-
erating units shown. The functions of the buttons on the op-
erating units can be found in the following overview.
Depending on how long it is pressed for, the select button
has 2 functions.
5-button operating unit
Scroll to the left
Scroll to the right
Increase assistance level/scroll up
Reduce assistance level/scroll down
Open the select button/settings menu on the status
page (press briefly)
Open the quick menu (from any page except for the
status page) (press for > 1 s)
3-button operating unit
Increase assistance level/scroll up
Reduce assistance level/scroll down
